New Channel Balances

Home Owner from Tucson, AZ

May 5, 2021 9:21 pm

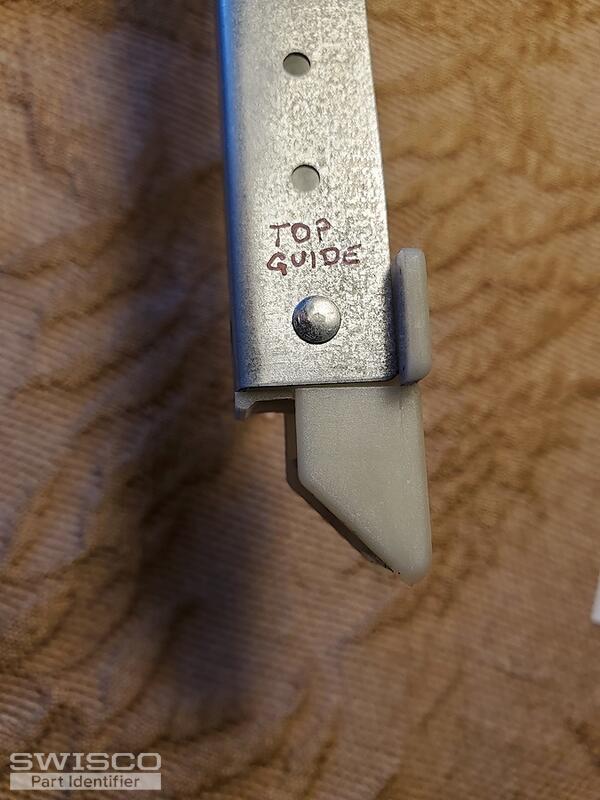

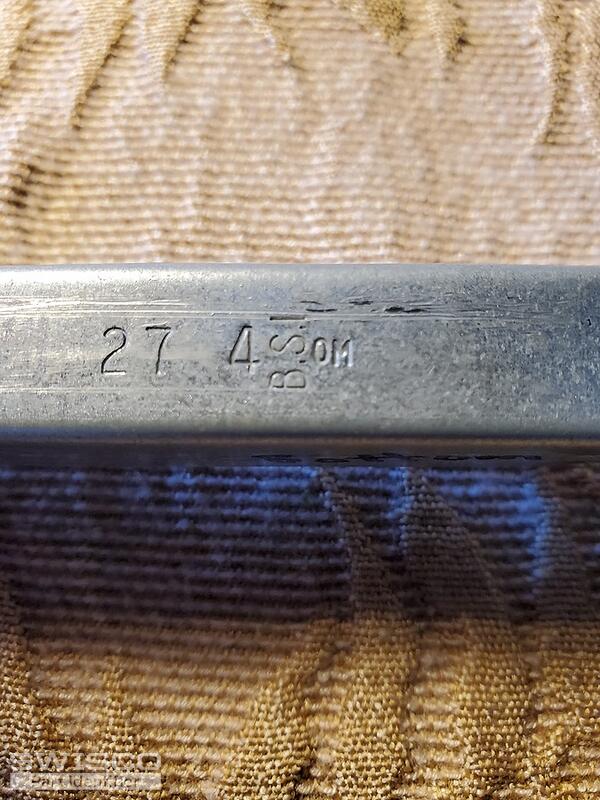

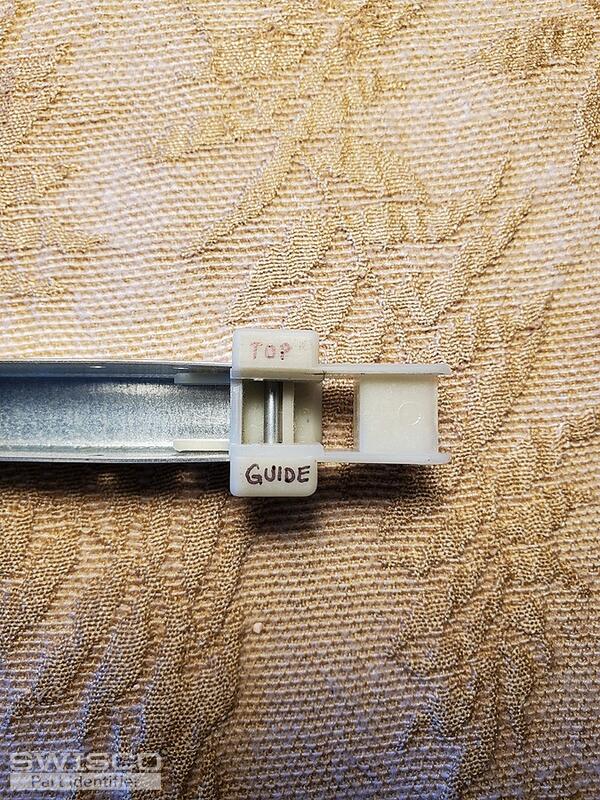

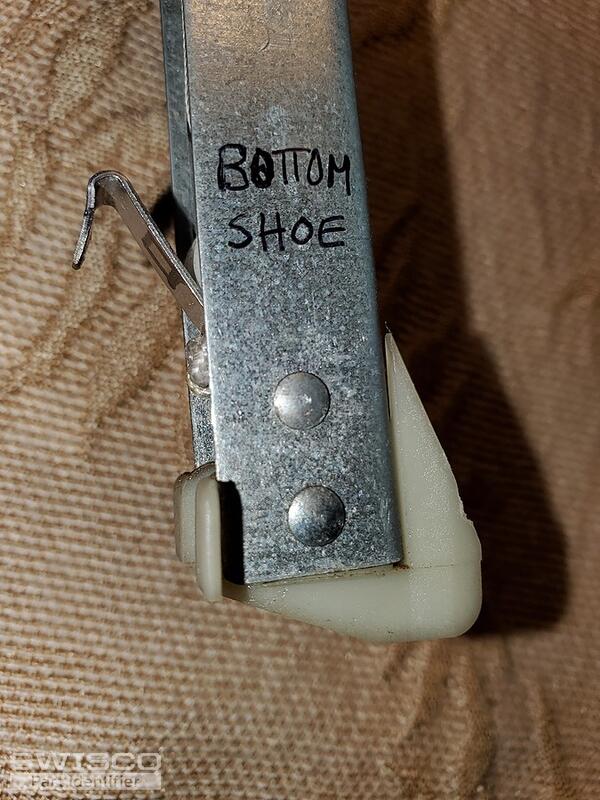

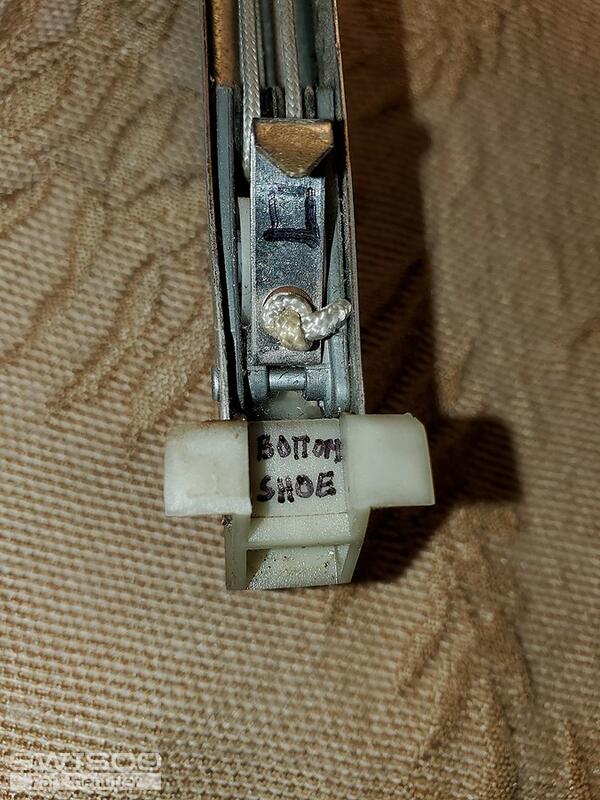

Hello, I need new Channel Balances for my single-hung windows. I have non-tilt, 1/2" 28" long metal channels; winged bottom shoe is .97" deep x 15/16" & 1/2" wide; winged top guide is .72" deep x 1/2" wide; markings on Channel: 27_4; B.S.I; OM - see attached photo

Thank you,

Brian

20210505_175352

20210505_175332

20210505_154151

20210505_154122

20210505_151319

5 user uploaded images

2 Replies

+ Add a Comment

Casey

Casey from SWISCO

May 6, 2021 10:05 am

SWISCO

EXPERT

Hello,

With this combination of attachments, you could have either an S380-28 or S385-28 channel balance. You’ll need to measure as shown below. The Series 380 has a 1" bottom attachment, and the Series 385 has a 1-3/32" attachment. You'll also need 2740 spring strength options for your replacement balances.

Thank you and let us know if you have any other questions or concerns.

Comparison of the S380 and S385 balance shoes.

Comparison of the S380 and S385 balance shoes.

Home Owner from Tucson, AZ

May 6, 2021 10:20 am

Thank you, Casey!
