Need help identifying patio door parts

Start a new Discussion

Quick Learner from texas

Feb 19, 2018 2:08 pm

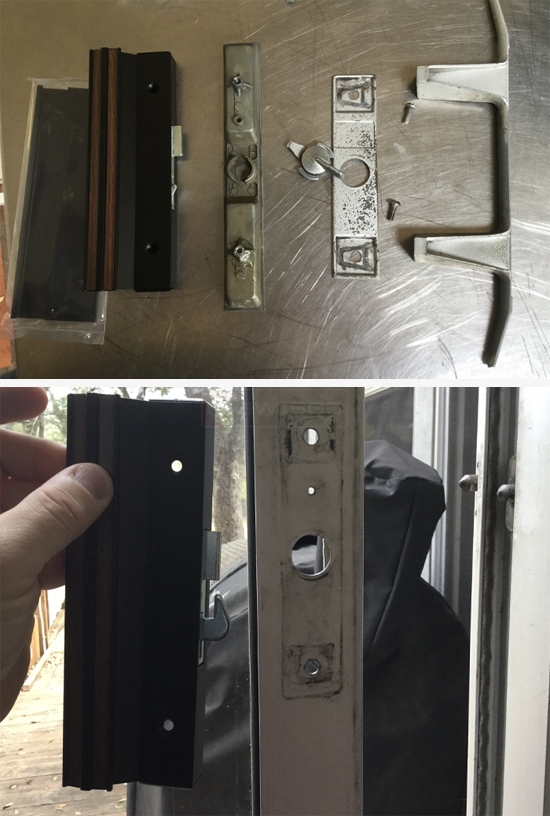

Need help identifying an early to mid 70

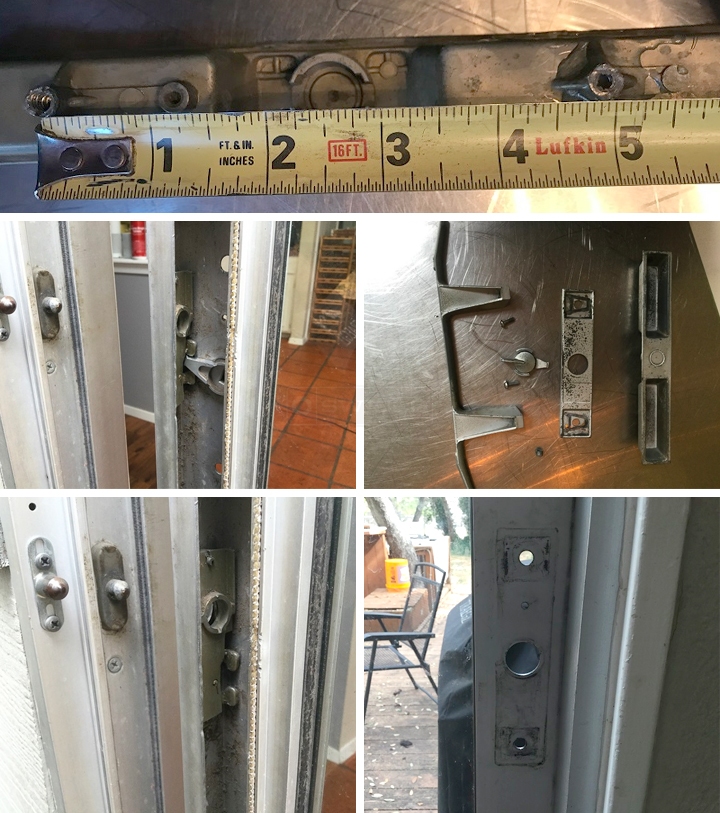

User submitted photos of patio door hardware.

4 Replies

Dave Sr. from SWISCO

Feb 22, 2018 2:11 pm

I believe you have an old handle used on Tucker patio doors which is no longer available. I would suggest installing a surface mounted type like our 82-005 to your door.

Home Owner from Austin

Mar 9, 2018 11:41 am

I ordered the replacement suggested but I can't see how it would fit. The little round lever (1" in dia) slides a plate up to lock.

Dave Sr. from SWISCO

Mar 14, 2018 8:25 am

The 82-005 patio handle is a type of universal "surface mounted" lock. You will need to install the new handle by drilling new mounting holes in the door stile and attaching the keeper to the side trim or door jamb. If you're having trouble, you might want to get the help of a professional familiar with patio doors.
