New hardware

A quick learner from Kalamazoo says:
March 2, 2021
Hi there! I have some vintage metal bifold doors that need all new hardware.
What are your suggestions.
A quick learner from Kalamazoo says:
March 2, 2021
Here are the pictures of what I currently have.
Thumbnail of the uploaded file named E975677E-D2ED-410F-9A03-34266DFA45BD.jpeg
Thumbnail of the uploaded file named 66E1692E-7569-46F2-80A7-2027ACC4EF25.jpeg
Thumbnail of the uploaded file named ED8326A3-4310-4BCE-8203-65DC41198868.jpeg

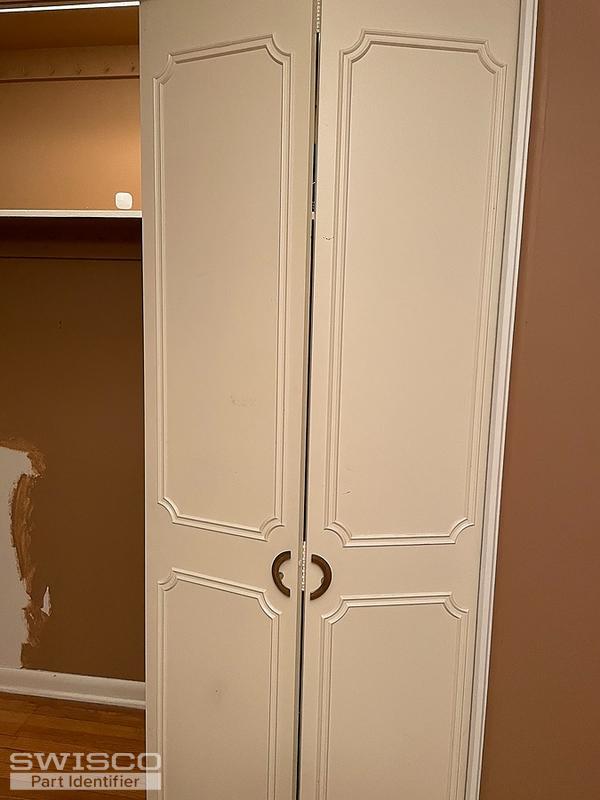

Thumbnail of the uploaded file named 453CAAD3-69F6-4C56-9109-8E1B5DAC5C50.jpeg
Profile picture of Casey
Casey from SWISCO responded:
March 4, 2021

Hello,

We'd be happy to help but we would need to see photos of your bifold pins removed from the door, as well as dimensions and other details that are explained in our guide here. Thank you!
A quick learner from Kalamazoo says:
March 4, 2021
Metal Bi fold doors
Brand: unknown
Pin length: 5 1/4 inch
Pin width: 5/16
Pivot width: 3/8

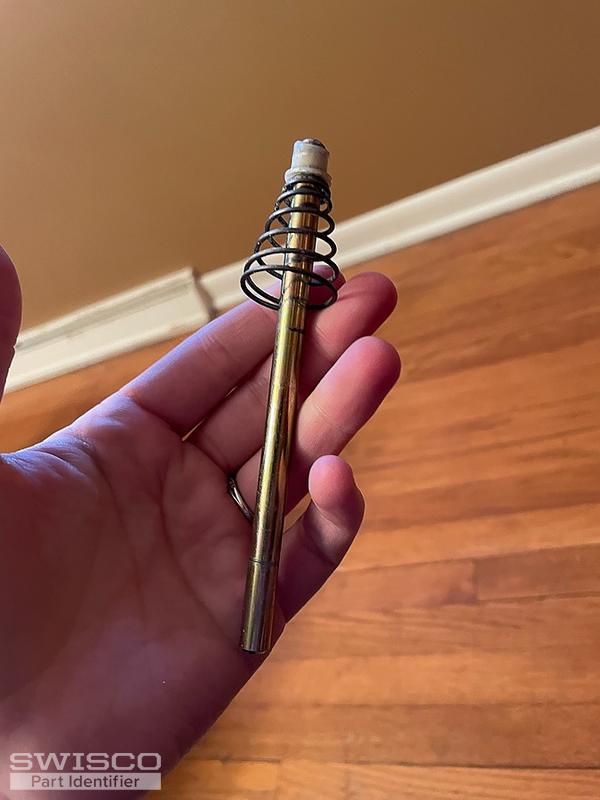

Thumbnail of the uploaded file named A551C473-CD88-4A1C-BE73-18B65856BA95.jpeg

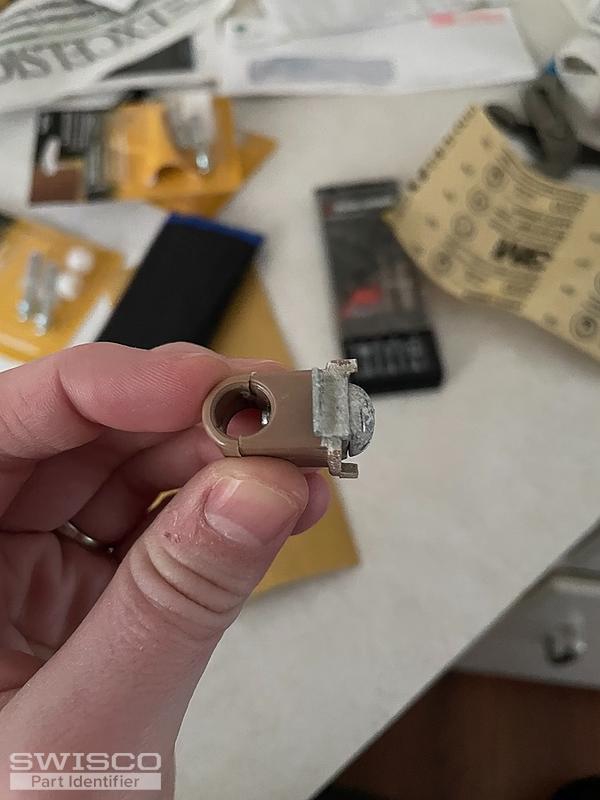

Thumbnail of the uploaded file named BE25EAF9-6644-4F96-B1D3-956AB83F2FF8.jpeg

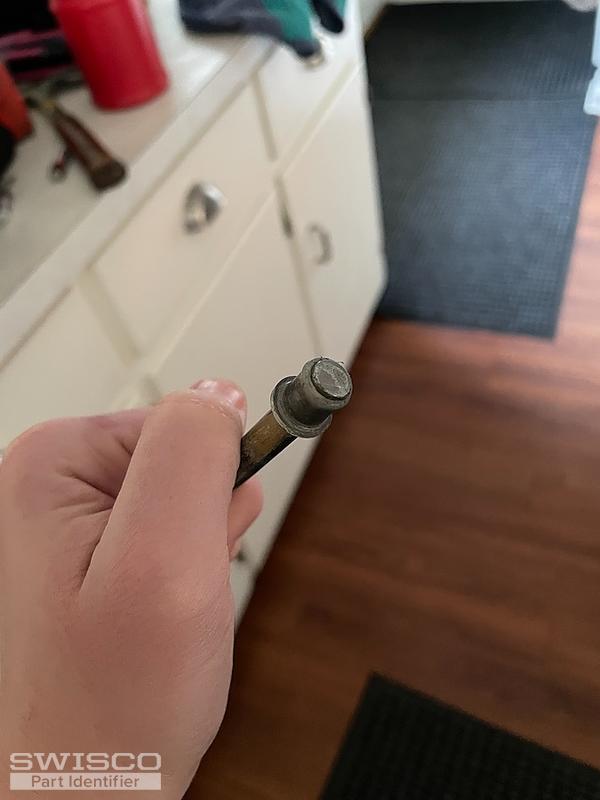

Thumbnail of the uploaded file named 71FF1299-F646-423F-9451-50E69CA676F3.jpeg

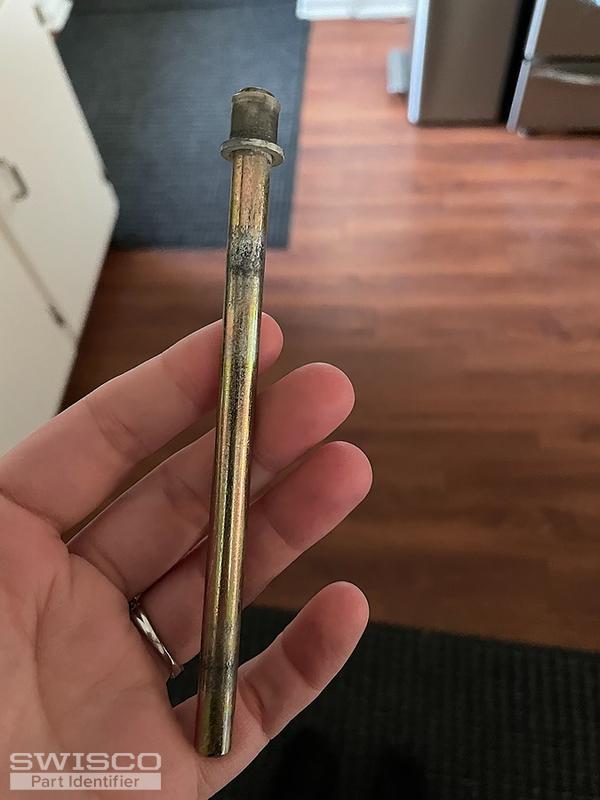

Thumbnail of the uploaded file named DF9310B1-526F-4284-A180-ADC826588E8D.jpeg
Profile picture of Paul
Paul from SWISCO responded:
March 5, 2021

I believe you can use our Slimfold door bi-fold pins as replacements. You would need one 21-001 bottom corner adjusting pin and three 21-007 spring-loaded pins. One 21-007 pin would go at the top pivot corner position and the two others are used as the top and bottom sliding pins.
Bifold Door Guide Pin
Bifold Door Guide Pin
21-007
$3.87
Bi-fold Door Pivot Assembly
Bi-fold Door Pivot Assembly
21-001
$6.95
Pivot Rod Clamp
Pivot Rod Clamp
21-154
$1.46
How to Install Bi-Fold Closet Door Pins
How to Install Bi-Fold Closet Door Pins
VIDEO
WATCH >
How to install bi-fold closet door pins
How to install bi-fold closet door pins
VIDEO
WATCH >
Bi-fold Door Repairs
Bi-fold Door Repairs
GUIDE
READ >
