No marking found on existing hardware

A handy person from Michigan says:
May 14, 2019
Can you help me identify what part this is for a double hung window? It's the window on the bottom.

Window size: 29.5 W X 35.5 H

Weight: 21.5

Thanks for your help.

Mary
Thumbnail of the uploaded file named image1.jpeg
Thumbnail of the uploaded file named image2.jpeg
Thumbnail of the uploaded file named image3.jpeg

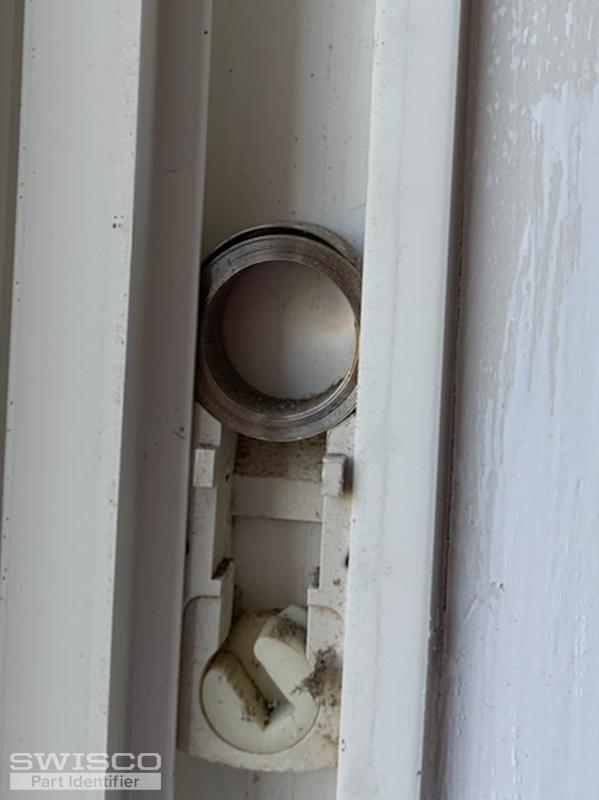

Thumbnail of the uploaded file named ?name=mms_attachment_0_b03dea39daa9e2fc175655265f1
Profile picture of Bob
Bob from SWISCO responded:
May 15, 2019

Thanks for writing in. See our 15-180 Pivot Shoe. This shoe is compatible with our Series 190 Coil Springs. Thanks for providing your sash weight! If your sash weighs exactly 21.5 lbs, then I'd go with the S190-540 5 lb spring and the S190-640 6 lb spring on each side of the sash.  This equals 11 lbs of support on each side of the sash, for a total of 22 lbs of support (being 1/2 lb over shouldn't make a difference). Let us know if you have any questions.
Coil Balance Shoe
Coil Balance Shoe
15-180
$3.97
Double Support Detent Clip
Double Support Detent Clip
15-181
$6.17
Balance Bushing
Balance Bushing
15-182
$1.80
540 S190 Coil Balance Spring
540 S190 Coil Balance Spring
S190-540
$9.74
640 S190 Coil Balance Spring
640 S190 Coil Balance Spring
S190-640
$9.74
