No markings

A home owner from Connecticut says:

Need two end caps. Don't understand some assemblies have rubber washers and some don't. Are they necessary if the spring clip is on the shaft? Don't know if you sell the individual parts for the shafts or just the shaft and all accompanying parts. Let me know.

Thanks,

Marvin

Thumbnail of the uploaded file named IMG_1817.JPG
Thumbnail of the uploaded file named IMG_1820.JPG
Thumbnail of the uploaded file named IMG_1821.JPG

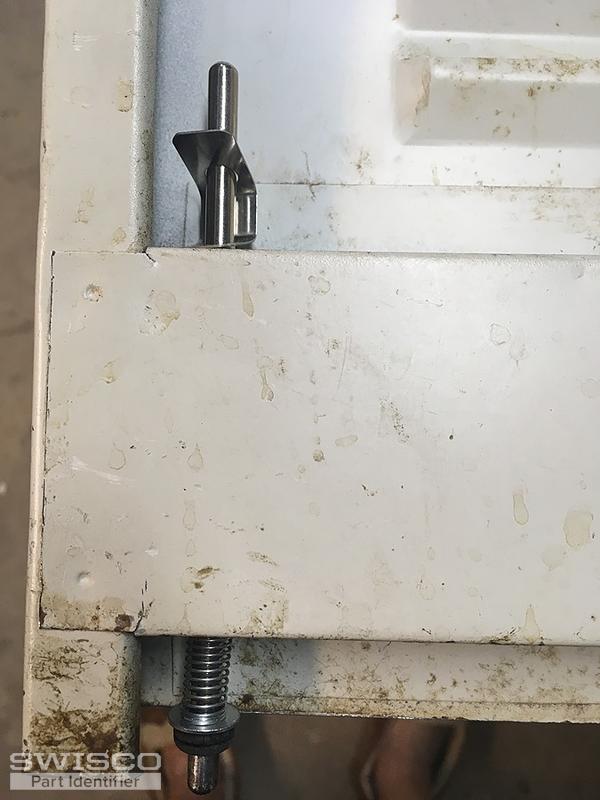

Thumbnail of the uploaded file named IMG_1822.JPG

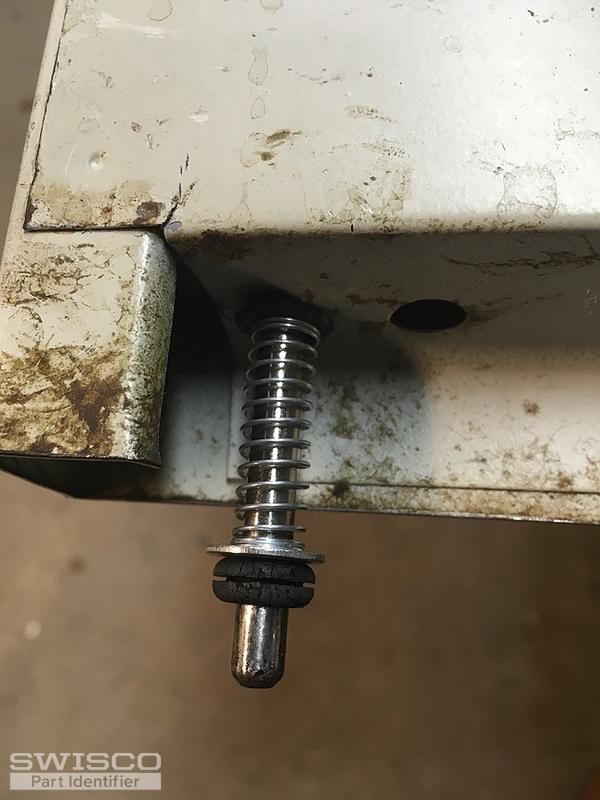

Thumbnail of the uploaded file named IMG_1823.JPG
Profile picture of Bob
Bob from SWISCO responded:

Many of these details depend on the make and configuration of your bifold door. This post here goes into more detail about the information we need. If there is no brand label on the door, at least give us the diameter of the pins and the diameter of the caps. That should help us narrow things down.

A home owner from Connecticut says:
Pin diameter is .250"
Cap diameter seems to be around .375"
Profile picture of Bob
Bob from SWISCO responded:

Those dimensions correspond with our 21-091. Take a look and see if you agree. Corresponding hardware often used alongside this pin included the 21-002, 21-150, 21-100 and 21-157. See if any of these parts match what you need.

21-002 : Bifold Door Pivot Pin, Benchmark
Bifold Door Pivot Pin, Benchmark
21-002
$4.20
VIEW >
21-091 : Bifold Door Top Pivot and Guide Pin
Bifold Door Top Pivot and Guide Pin
21-091
$4.50
VIEW >
21-100 : Bifold Door Pin Cap, Benchmark
Bifold Door Pin Cap, Benchmark
21-100
$0.78
VIEW >
21-150 : 1/4
1/4" Nylinder
21-150
$0.39
VIEW >
21-157 : Spring Retainer
Spring Retainer
21-157
$0.57
VIEW >
