Non-Tilt 1/2 inch width 28 inch length channel balances 2730

Question

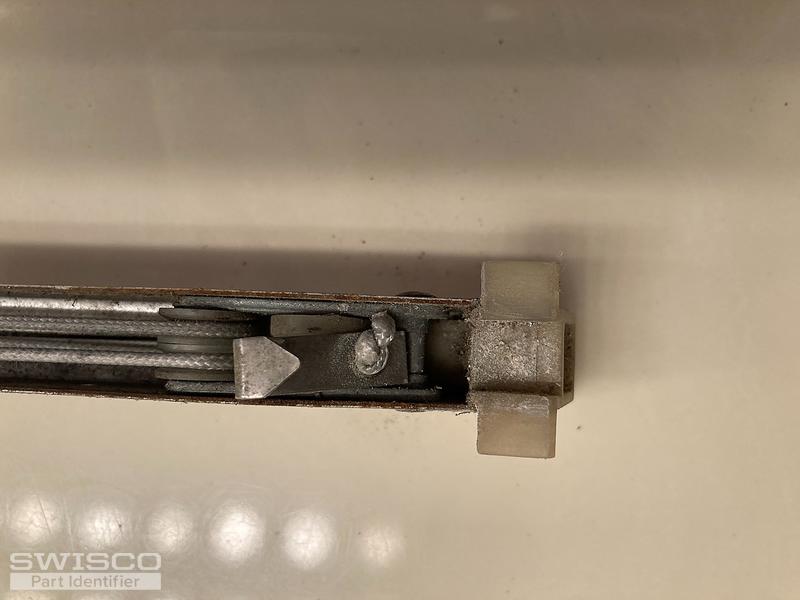

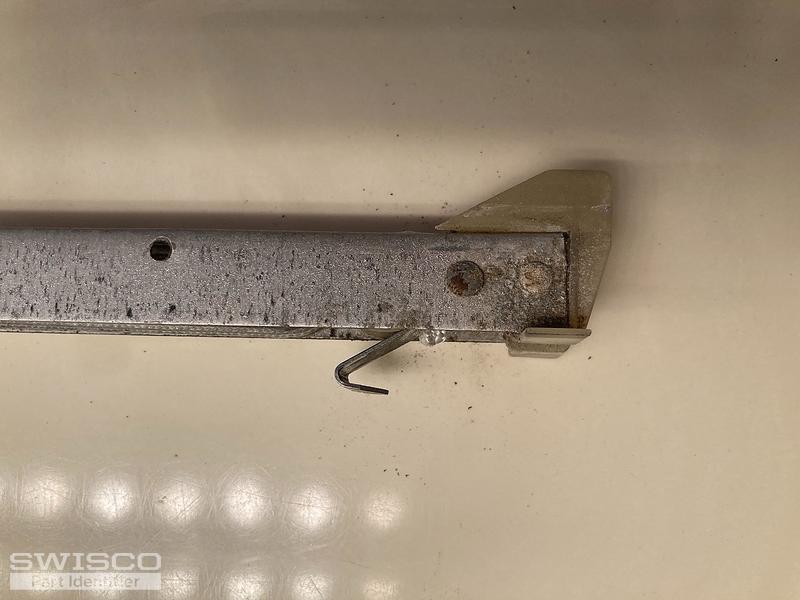

Please refer to the attached pictures and advise me if your 28" Series 385 channel balances would have the correct top and shoe for my part. If so, I understand the part is currently unavailable. It's appreciated if you have estimate time of availability. Thank you

Casey · Accepted Answer

Hello,

With this combination of attachments, you could have either an S380-28 or S385-28 channel balance. You’ll need to measure as shown below. The Series 380 has a 1" bottom attachment, and the Series 385 has a 1-3/32" attachment. You'll also need 2730 spring strength options for your replacement balances.

Thank you and let us know if you have any other questions or concerns.

Comparison of the S378, S380 and S385 balance shoes.
