Non Tilt Channel Balance

A home owner from Key West says:
Good Evening, I am looking for a 29" (metal channel) channel balance. I believe it is a 385 or 380. But from your description I am unable to verify the 1-3/32 vs the 1-inch. I don't see which direction to measure. Can you help?
Thanks,
Lise

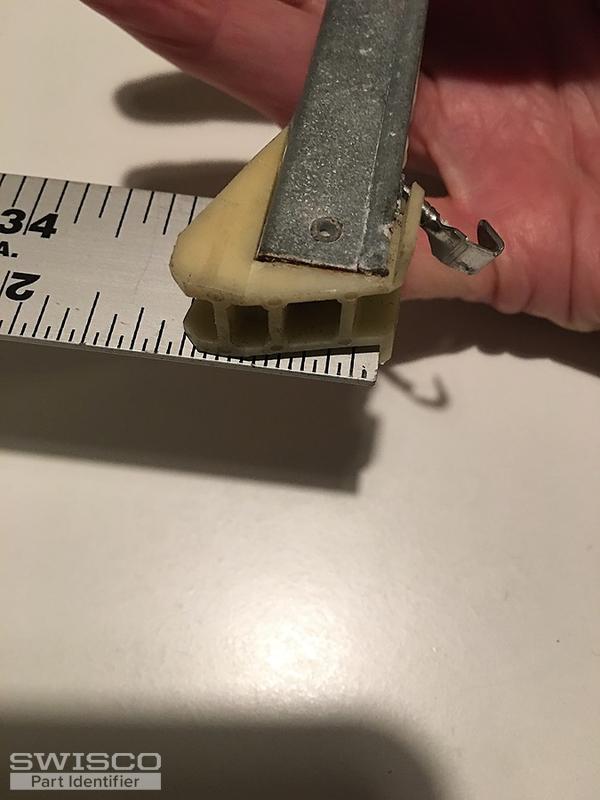

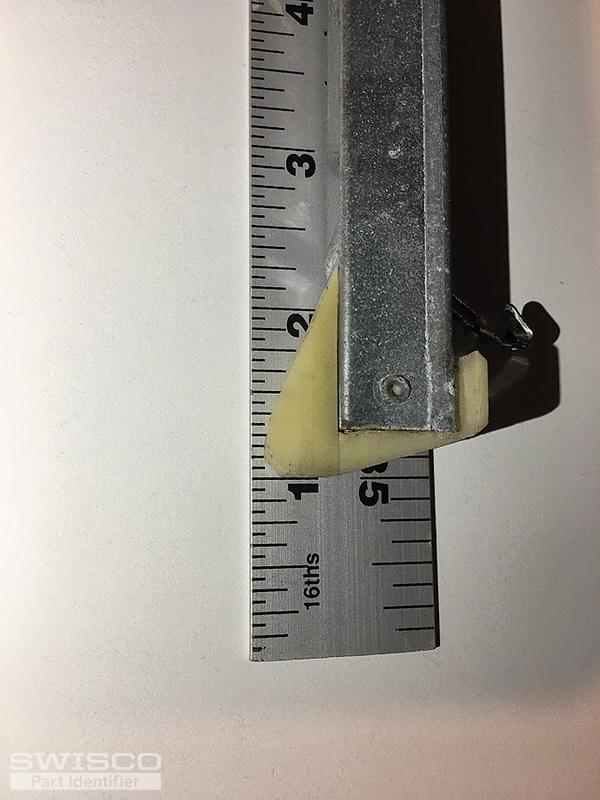

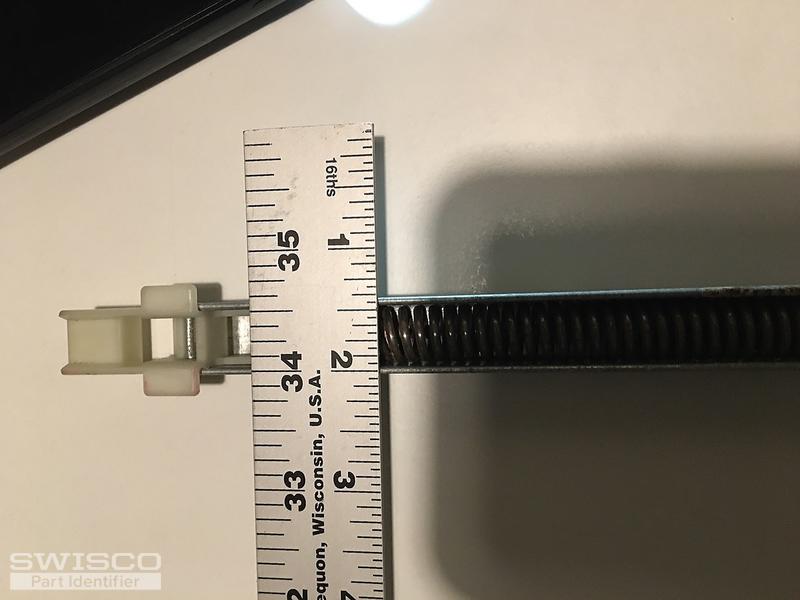

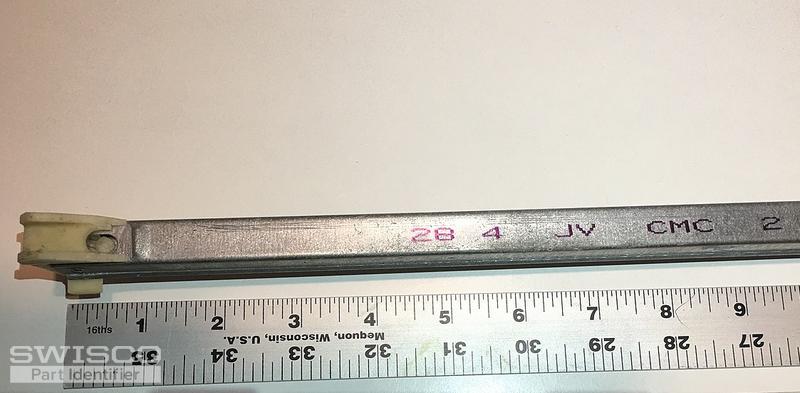

Thumbnail of the uploaded file named 5BB8A520-E004-4B13-9469-5C19219712CF.jpeg
Thumbnail of the uploaded file named B014F666-54A7-41A7-AE04-85681917061C.jpeg
Thumbnail of the uploaded file named ECC80334-A1EC-4989-94E5-75BF4D30A984.jpeg
Thumbnail of the uploaded file named 8FCE97C9-EC68-4E73-A46F-F39E37F1B9A4.jpeg
Profile picture of Casey
Casey from SWISCO responded:

Hello,

I agree that you need either the S380-29 or S385-29 with a 2840 strength option. You'll need to measure as shown below to choose between the two. Thank you!

Comparison of the S380 and S385 balance shoes.
Comparison of the S380 and S385 balance shoes.
