Non- Tilt Channel Balance Replacement

A quick learner from Orange County, California says:
I need a replacement balance. Please help me identify this part. Do you attach end peices on balances ordered, or would I have to attach them myself ? I have more pictures I can show you, as I'm only able to post five at a time.
Thumbnail of the uploaded file named 20211211_150120.jpg
Thumbnail of the uploaded file named 20211211_150200.jpg
Thumbnail of the uploaded file named 20211211_145417.jpg

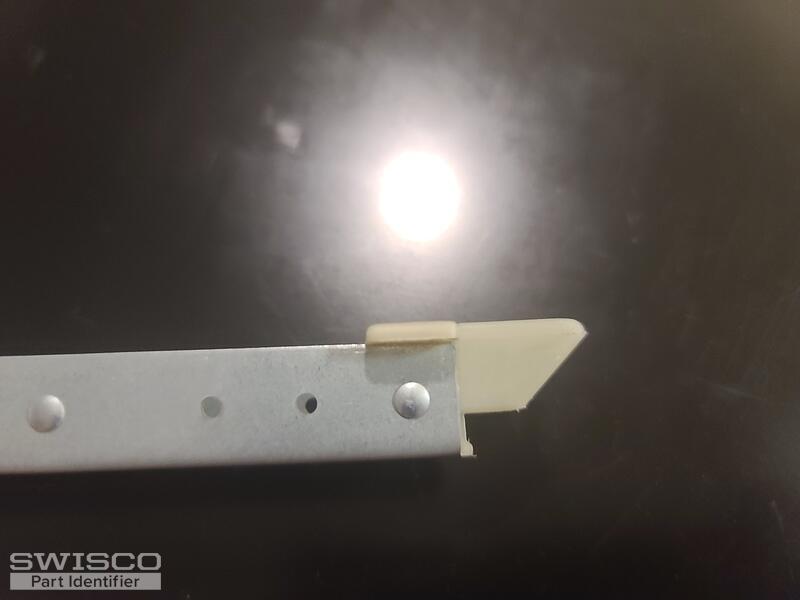

Thumbnail of the uploaded file named 20211211_145203.jpg

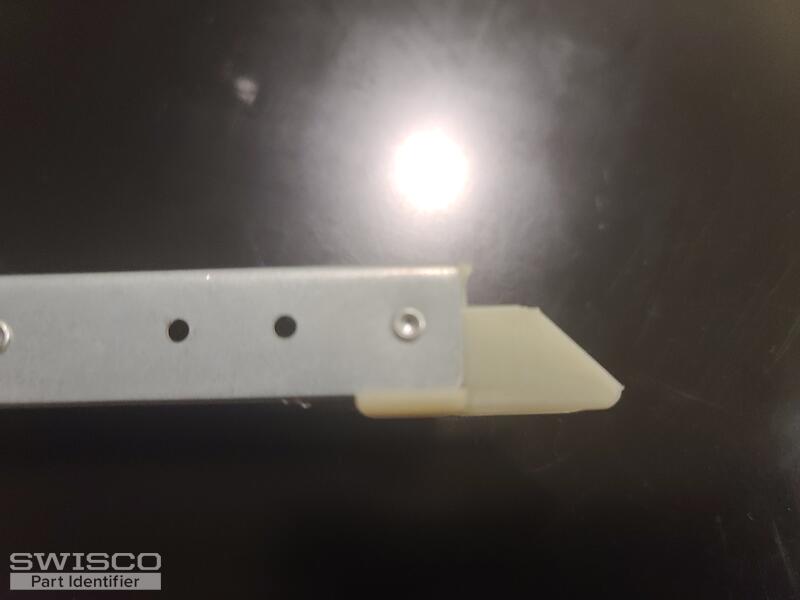

Thumbnail of the uploaded file named 20211211_145153.jpg
Profile picture of Casey
Casey from SWISCO responded:

Hello,

With this combination of attachments, you could have either an S380-21 or S385-21 channel balance. You’ll need to measure as shown below. The Series 380 has a 1" bottom attachment, and the Series 385 has a 1-3/32" attachment. You'll also need 2030 spring strength options for your replacement balances.

Also, our balances come preassembled with both end fittings already attached. Thank you and let us know if you have any other questions or concerns.


Comparison of the S380 and S385 balance shoes.
Comparison of the S380 and S385 balance shoes.
