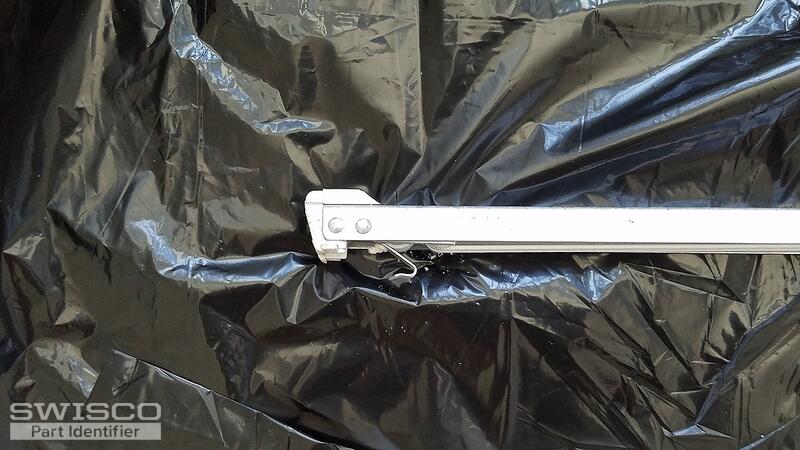

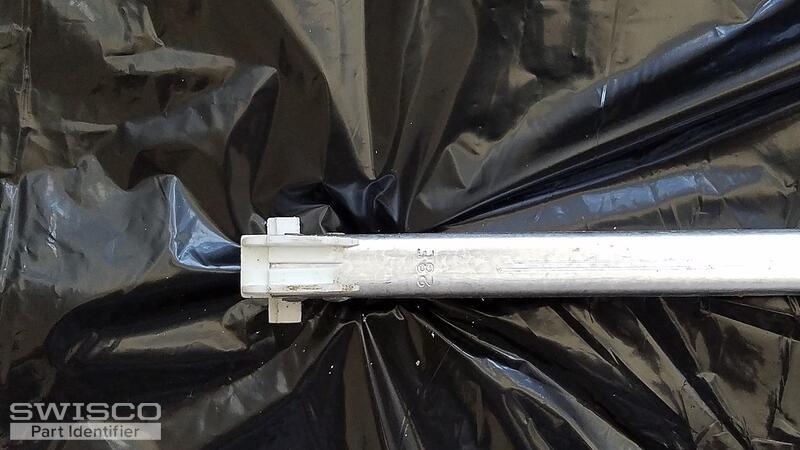

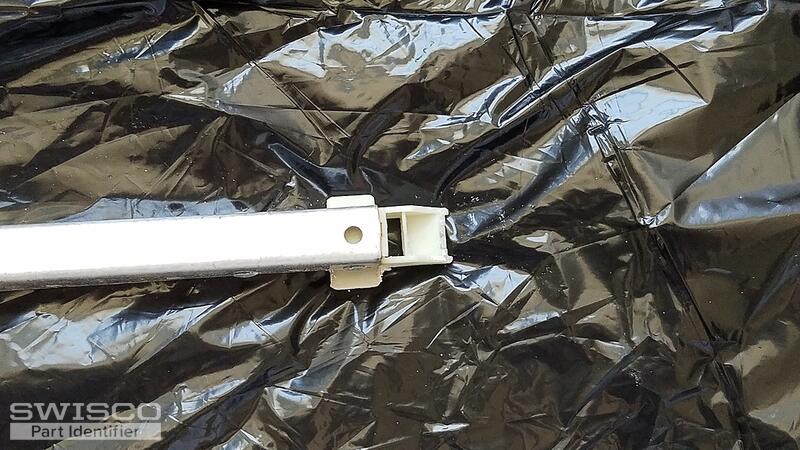

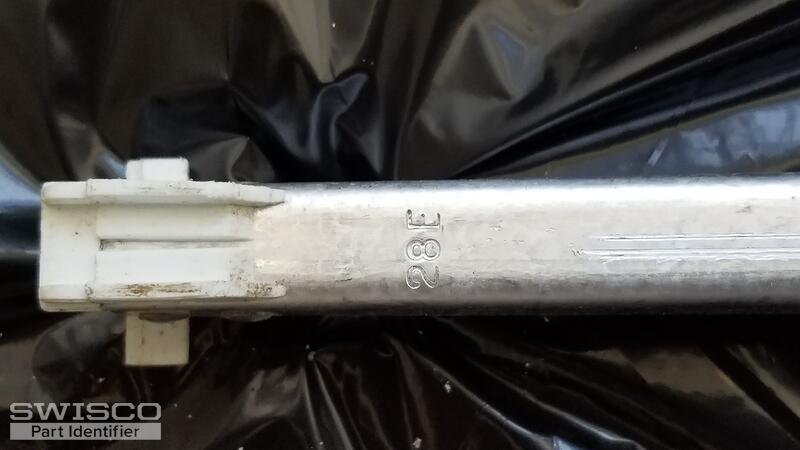

name of manufacturer : unknown; stamped on part 28E; length is 29" (inches); length of wing is 1"; height of of 15-005 shoe os 1"; top and shoe has 1" length wings; channel balance looks like S380;
Don't know if it is a 2840 or 2850 channel balance. It's for a non-tilt single hung window. The insulated window panel that it controls is 46" wide and 30" high.
Non-tilt block and tackle channel balance

Home Owner from Florida
Jul 6, 2018 12:11 pm
4 user uploaded images
3 Replies

Tom from SWISCO
Jul 10, 2018 9:25 am


28E is usually equivalent to 2850. I also agree with your Series 380 identification. If the metal channel by itself measures 29", choose S380-29.

Home Owner from Florida
Jul 10, 2018 12:46 pm
Thank you. Will order shortly.
