Non-tilt channel balance replacement

Home Owner from Downey, CA

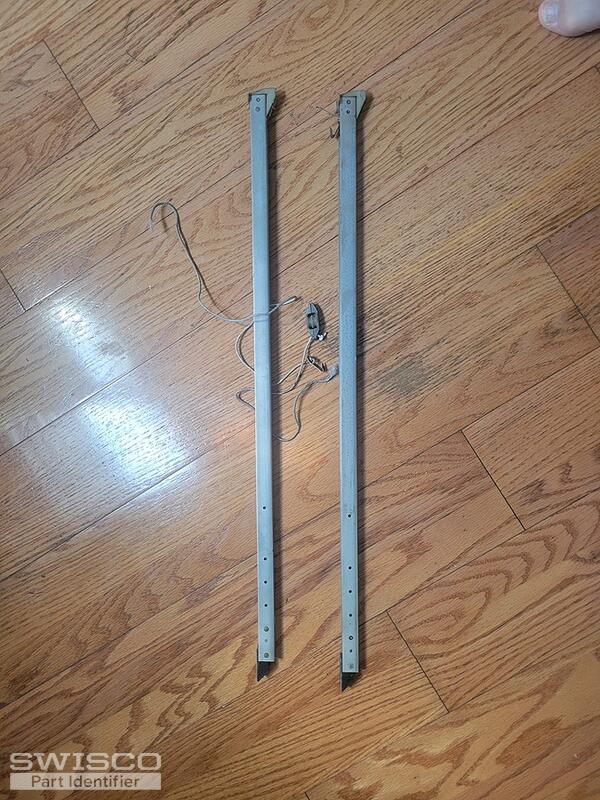

Hi I need two of these for a sliding glass window 46 1/2 x 46 1/2 inches.  The number on the balances is 21403.  Please email me if you need more info.  I'm a DIYer so I only have youtube and some home repair experience.

I have other windows I want to attempt to fix if I'm successful with this one.

4 user uploaded images
4 Replies
Casey
Casey from SWISCO
SWISCO
Expert

Hello,

I'd suggest taking a look at the S350 channel balance. Review the specifications below to confirm it's a match. The metal channel should measure 22" without the end fittings. If so, see the S350-22 with 2140 strength options. Thanks for posting!

How to measure the length of the Series 350 channel balance.
How to measure the length of the Series 350 channel balance.

Close up view of the S350 balance shoe.
Close up view of the S350 balance shoe.

Home Owner from Downey, CA

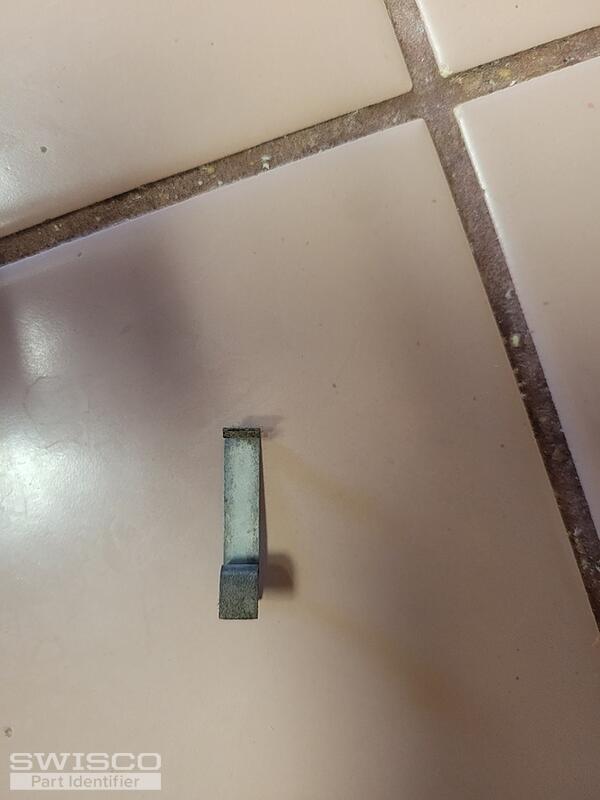

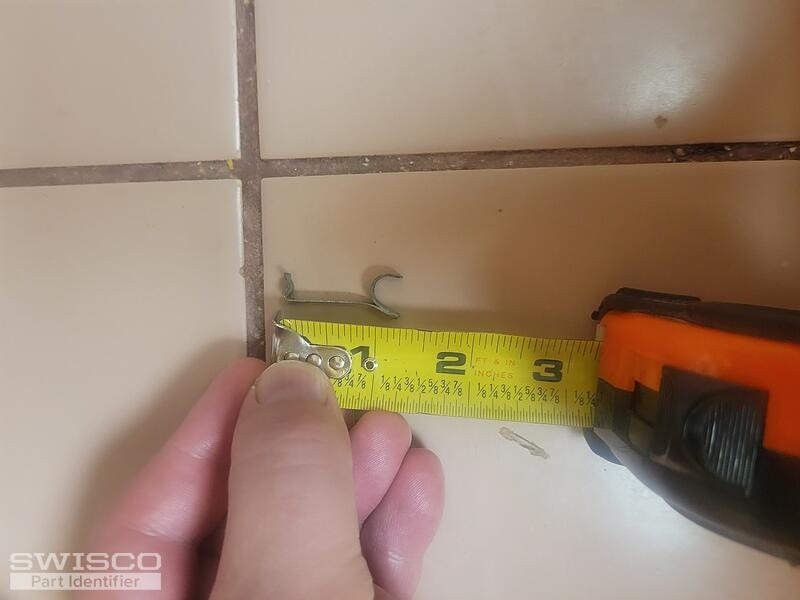

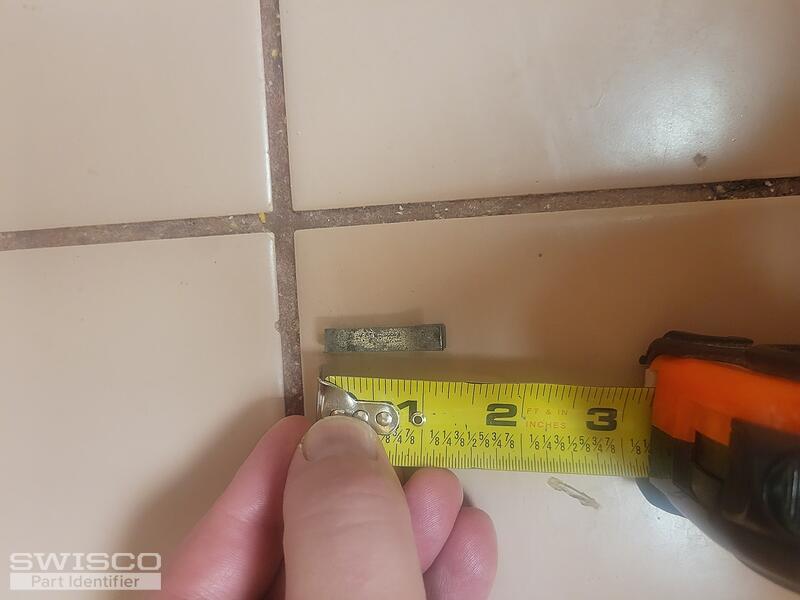

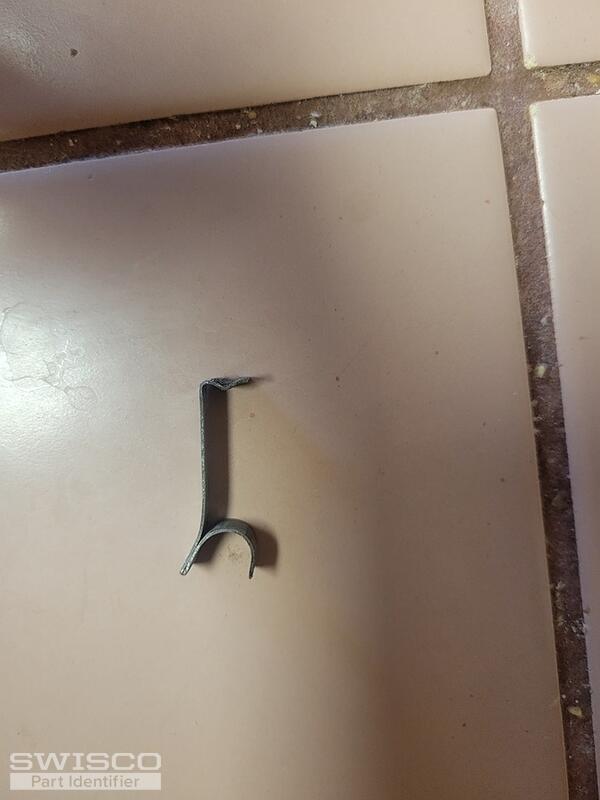

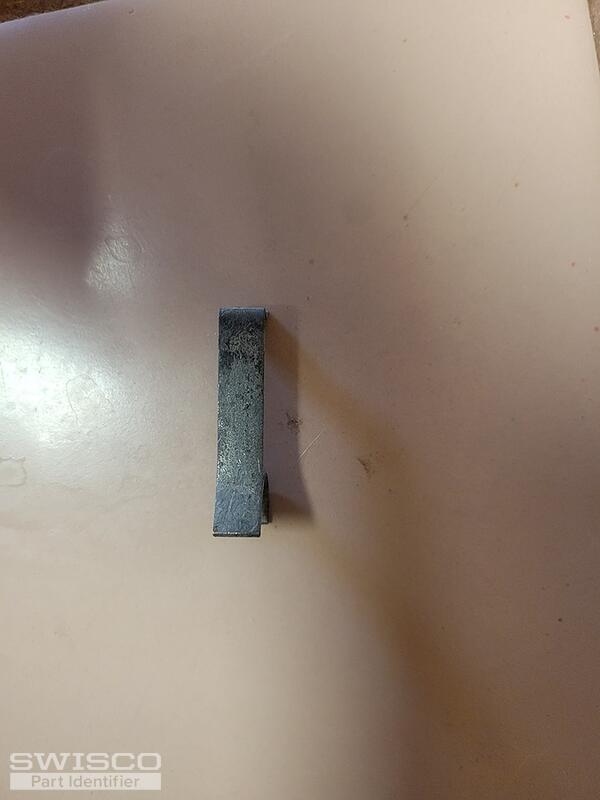

Thank you so much for the recommendation.  These were a perfect match, however on both of my windows, the balance beams stay suspended only one side.  I believe the take out clips are worn out so on both windows they won't hold the plastic clip and one side falls with the window.  I'm attaching one of the Take Out clips. It measures at 1 1/4 inch approximately. Could you recommend a match for these?
5 user uploaded images
Casey
Casey from SWISCO
SWISCO
Expert

Sure, take a look at the 16-002 take out clip below.

Alternate image for 16-002
Alternate image for 16-002

If the balance isn't staying in place below the sash, I'd suggest checking the top sash guides on the top corners of the sash. If one is broken, the balance will shoot to the top of the window. If that is the case, we'll need to see photos of an intact guide uninstalled to compare to our inventory.
