Non tilt vinyl window channel replacement balance parts

A quick learner from Kissimmee, FL says:
January 18, 2022
Parts have no markings other than 28-B

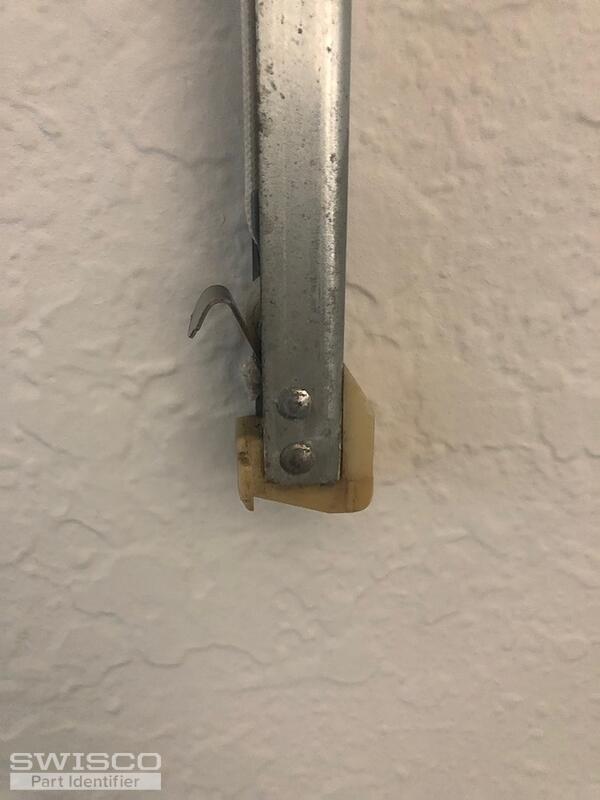

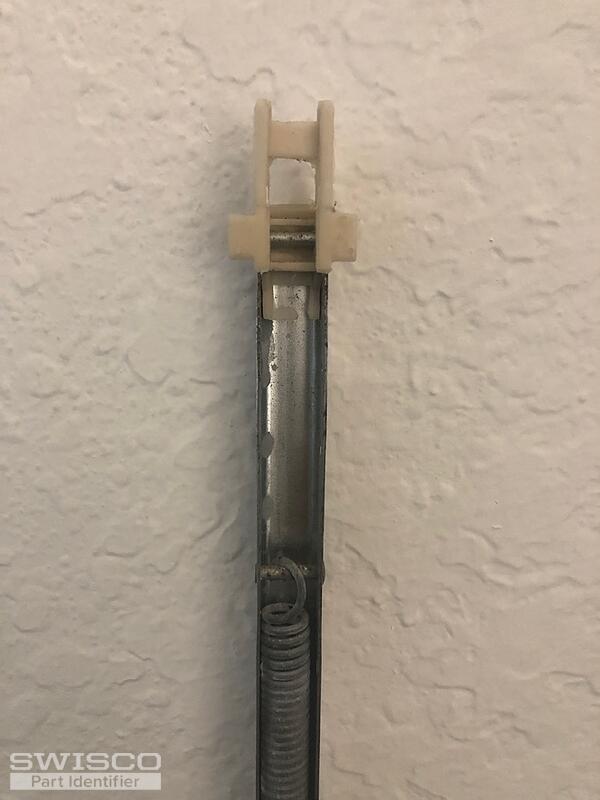

Measure at 29". Each end is the winged clip version. Not certain of window OEM maker.
Thumbnail of the uploaded file named 845894BC-AF05-4939-AF44-2F329EB7C637.jpeg
Thumbnail of the uploaded file named 71284B3C-E12C-4B19-82ED-243603A97FCB.jpeg
Thumbnail of the uploaded file named CA6DCD25-EC02-444D-93B7-4B4C9572EF1B.jpeg
Thumbnail of the uploaded file named E6AFDEED-14B8-47EC-8F38-E8B15A371512.jpeg
Thumbnail of the uploaded file named 31A07829-075D-4843-9533-BFCDC990F0C4.jpeg
Profile picture of Emily
Emily from SWISCO responded:
January 20, 2022

Hello!

At first glance, this looks like it could be either our S380-29 or S385-29 channel balance. The S380 uses a 1" bottom fitting and the S385 uses a 1-3/32" fitting. However, your bottom fitting looks like it might be less than 1", possibly 7/8" like our 15-029 shoe. Pictures can be deceiving so we suggest measuring as shown below to confirm. Let us know what you find and we can go from there.

Comparison of the S380 and S385 balance shoes.
Comparison of the S380 and S385 balance shoes.
29" Series 380 Channel Balance
29" Series 380 Channel Balance
S380-29
$11.10
29" Series 385 Channel Balance
29" Series 385 Channel Balance
S385-29
$11.10
Winged Channel Balance Shoe, 7/8" Depth
Winged Channel Balance Shoe, 7/8" Depth
15-029
$0.82
