Measures 26" metal to metal as per your video description.
Window weighs 17.7lbs.

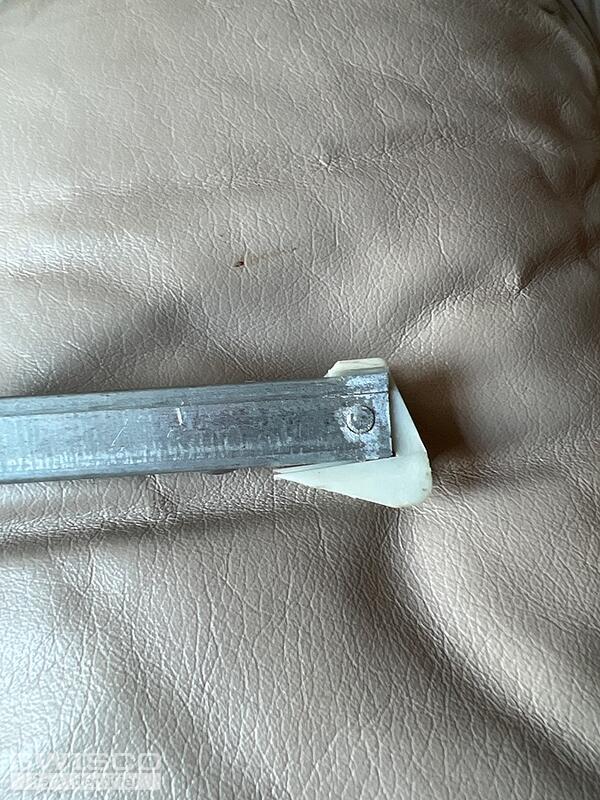

Non tilt window block and Tackle Channel Balance
Quick Learner from Greenwood, CA
Jul 19, 2023 9:00 pm
4 user uploaded images
2 Replies
Casey from SWISCO
Jul 20, 2023 2:35 pm
Hello,
With this combination of attachments, you could have either the S380-26 or S385-26 channel balance. You’ll need to measure as shown below. The Series 380 has a 1" bottom attachment, and the Series 385 has a 1-3/32" attachment.
You'll also need 2530 spring strength options for your replacement balances to support a sash between 15-19 lbs. Thank you and let us know if you have any other questions or concerns.
Comparison of the S378, S380 and S385 balance shoes.
