Non tilt window channel balance

Quick Learner from San Diego
I need help identifying the right part. The stamp shows the number
26 and what comes next is the problem, is it a 9 or a 5 or an S?

It reads: 26 ? AW CMC 2

Can you tell me what it is and do you have it?
Thank you
1 user uploaded image
4 Replies
Bob
Bob from SWISCO
SWISCO
Expert

Thanks for posting. To know what balance you have, we need to see the nylon attachments at either end of the balance. As far as the stamp goes, it states '26 9'. We do need this stamp code to determine the spring strength your balance needs; but 26 9 is from an older rating system we don't use. To know what stamp option you'll need, you'll have to weigh your window sash. We'll then be able to match that exact weight with the proper stamp option. Just let us know.

Quick Learner from San Diego

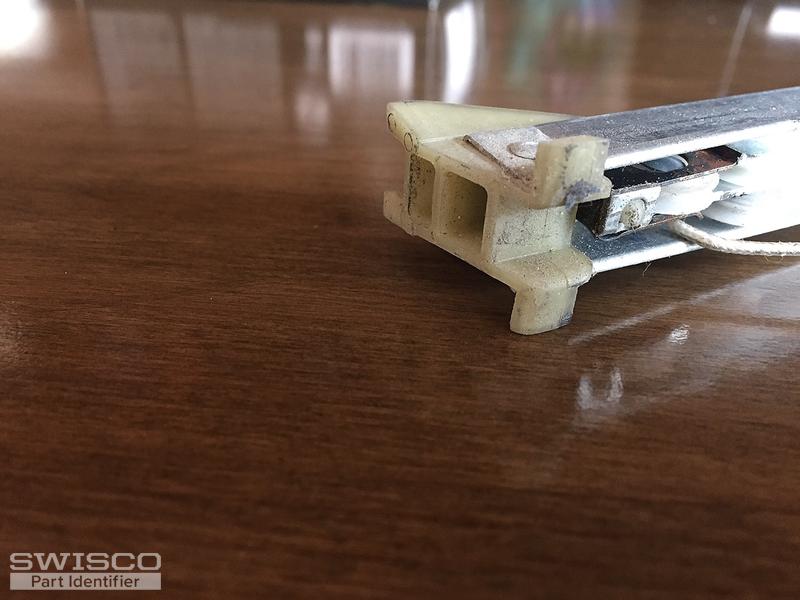

Here are extra photos but I cannot weight the window
3 user uploaded images
Bob
Bob from SWISCO
SWISCO
Expert

Thanks for getting back to me. This looks like a Series 350 Channel Balance. Confirm that the metal channel is 27" long, not including the nylon attachments. If so, see the S350-27. If you watch the video below, you'll see how you can remove your window sash during channel balance removal and replacement. A bathroom scale would be sufficient. I am afraid there is no other way to know what stamp option you need to select for this balance.
