Non-tilting window channel balances

A quick learner from San Juan Capistrano, Ca says:
May 28, 2020

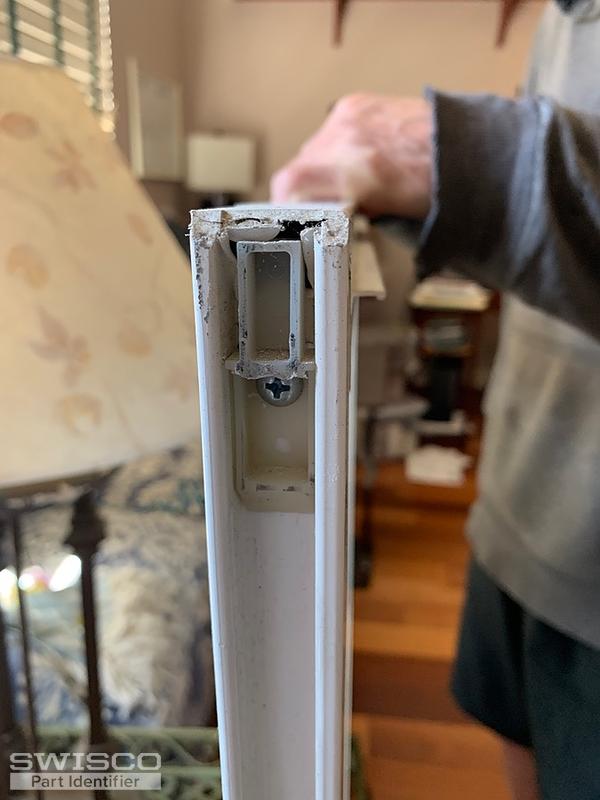

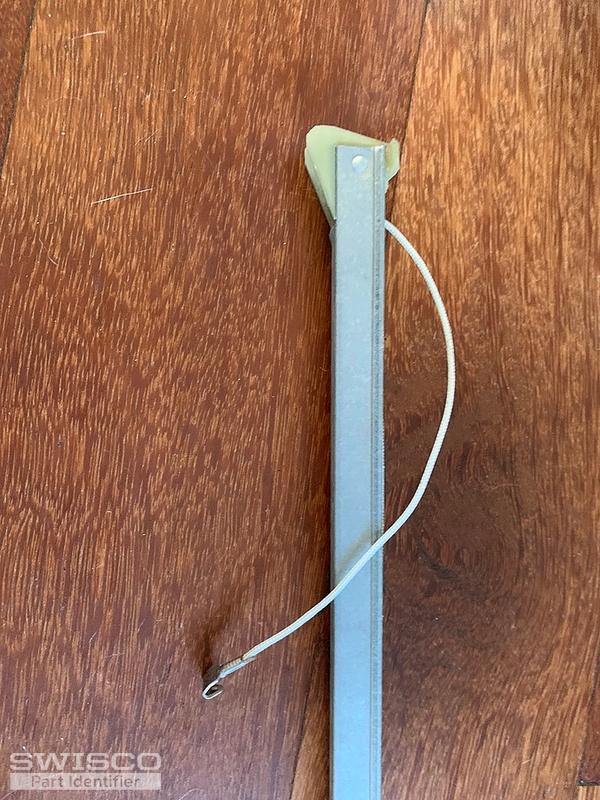

I need 2 different lengths and weight tolerances. The first ones are1/2 in wide and 34 inches long with wings and have 33 3 CO Caldwell printed on the side. The second ones are the same width with wings and are 28 inches by 1/2 inches and have 27 4 FP Caldwell printed on them. I tried but can't figure out exactly which ones I need since some are very close. I sent pics of the ends so maybe that will help. I also sent a pic of a nylon thing on the top side of a window that is broken. Also a lock. It is white and is 2 and 1/2 inches long

And one inch deep and about 1/2 inch high. I need to redo 8 windows. Thanks Stella

Thumbnail of the uploaded file named 529066A0-F8FF-458A-A0FB-5B05117DFBEA.jpeg
Thumbnail of the uploaded file named 7A988A8C-A945-4B4B-A290-2F8FF0CE8D2C.jpeg
Thumbnail of the uploaded file named 96145C5E-D524-4E05-9DC5-041F00FD4B4D.jpeg
Thumbnail of the uploaded file named 06B73E57-A1B4-49FF-9097-FBC720310883.jpeg
Thumbnail of the uploaded file named 833D6DBD-0E9E-4CAD-A46B-88F652FA1EA0.jpeg
Profile picture of Bob
Bob from SWISCO responded:
June 1, 2020

Hey Stella. This looks like either an S380-34 or S385-34. The only difference between these two balances is the 'depth' of the bottom nylon shoe, so compare both with your old hardware to see what matches best. You will need a stamp option of 3330. For your Top Sash Guide, see if the 18-171 matches what you need.
A quick learner from San Juan Capistrano, Ca says:
June 12, 2020
Thanks Bob. Just one question. Which part number do I need for the balances that say 27-4 hp and are 28 inches long? Thanks
Profile picture of Bob
Bob from SWISCO responded:
June 12, 2020

Apologies for missing that. If they have the same nylon fittings as the 34" balances, then either the S380-28 or S385-28 will do, again depending on that bottom shoe depth. A stamp option of 2740 will be needed.
