Coil Balance ID

Start a new Discussion

Home Owner from Wis. Rapids, WI

Aug 21, 2020 9:49 am

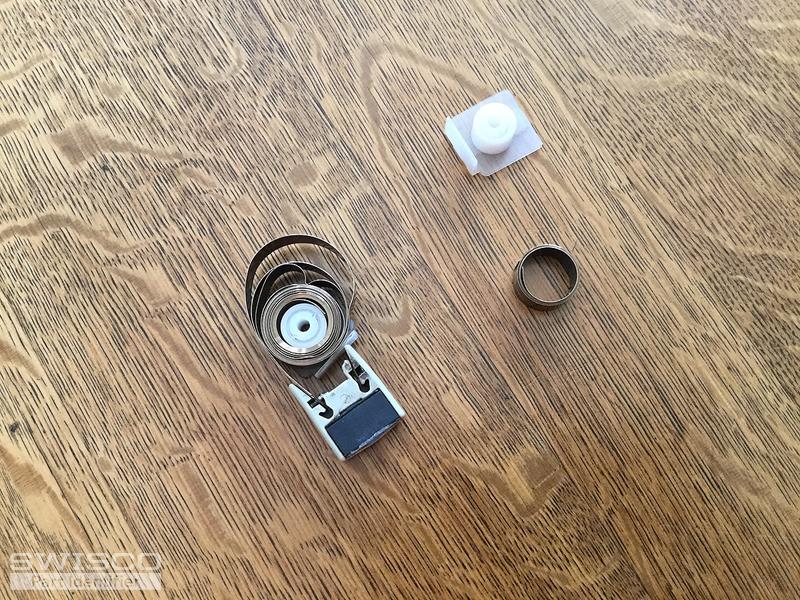

No markings or numbers

4 user uploaded images

7 Replies

Bob from SWISCO

Aug 25, 2020 11:31 am

The pivot shoe looks like our 15-177, which uses our Series 152 Coil Balances. Let me know if you have further questions.

Home Owner from Wis. Rapids, WI

Aug 27, 2020 8:44 pm

Thank you. Window weighs 23lbs Should I buy 4 6lb coil balances then and 2 pivot shoes? Also need 2 new pivot bars, they broke at first screw attachment. Are they standard to the shoe or how do I find correct fit? Any info would be appreciated! Thanks much!

Tom from SWISCO

Aug 28, 2020 8:33 am

Pivot bars often used with the 15-177 include the 26-446, 26-226, and 26-030. If you can show us one of your originals, preferably undamaged or 'put back together', we can try to determine that for you.

As far as the spring weights, for a 23 lb window, I'd use (1) of the S152-8 8 lb springs and (1) of the S152-4 4 lb springs on both sides of the sash. This would equal 12 lbs of support on either side of the sash, for a total of 24 lbs of support overall. So long as the window weighs exactly 23 lbs, being within 1 lb should be fine.

Home Owner from Wis. Rapids, WI

Aug 28, 2020 4:18 pm

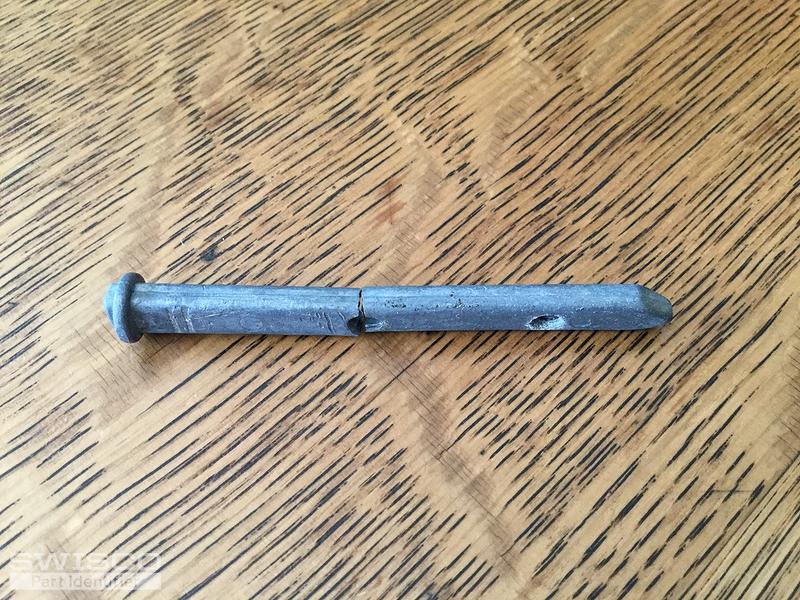

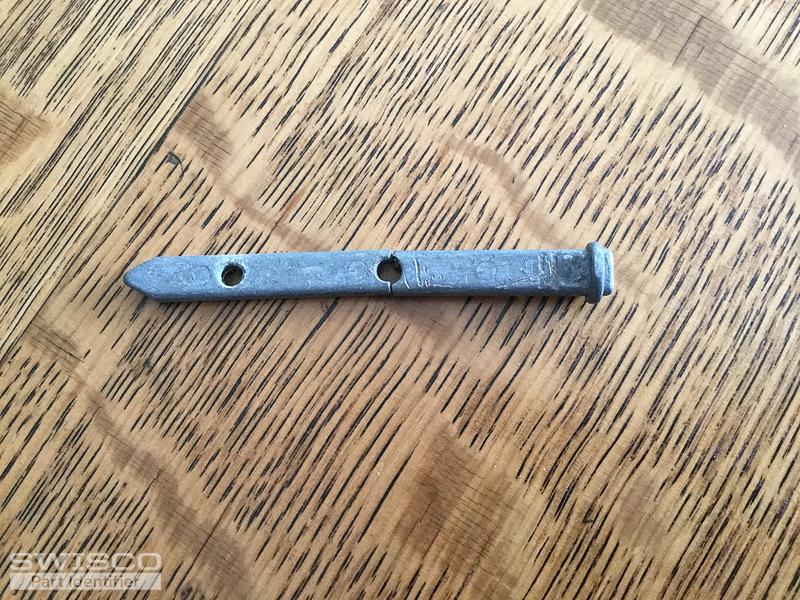

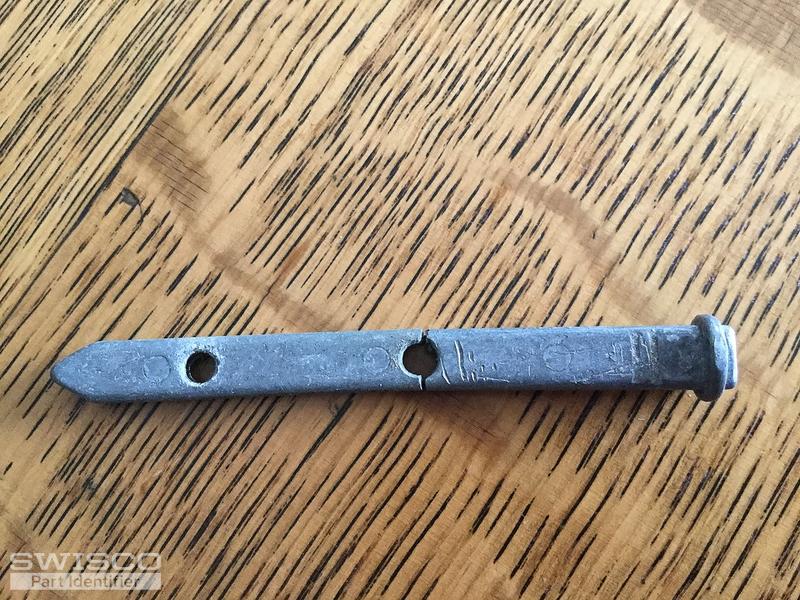

Pivot bar is 3 1/8 long and 1/8 inch thick.

3 user uploaded images

Tom from SWISCO

Aug 31, 2020 8:17 am

The 26-226 looks right to me, just double-check the dimensions to confirm.

Home Owner from Wis. Rapids, WI

Sep 1, 2020 8:40 am

Thank you so much. I really needed knowledgeable help and you all gave it. This is an awesome service you offer.
