Window Crank Replacement/Norton Casement

Quick Learner from New York

Jan 30, 2024 6:16 pm

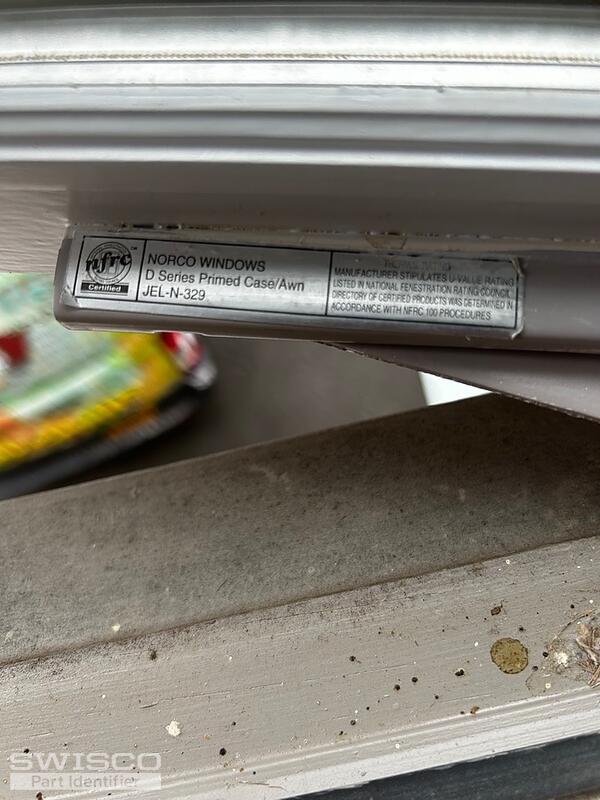

Norco wood casement window. D Series JEL N 329
Need left and right cranks.

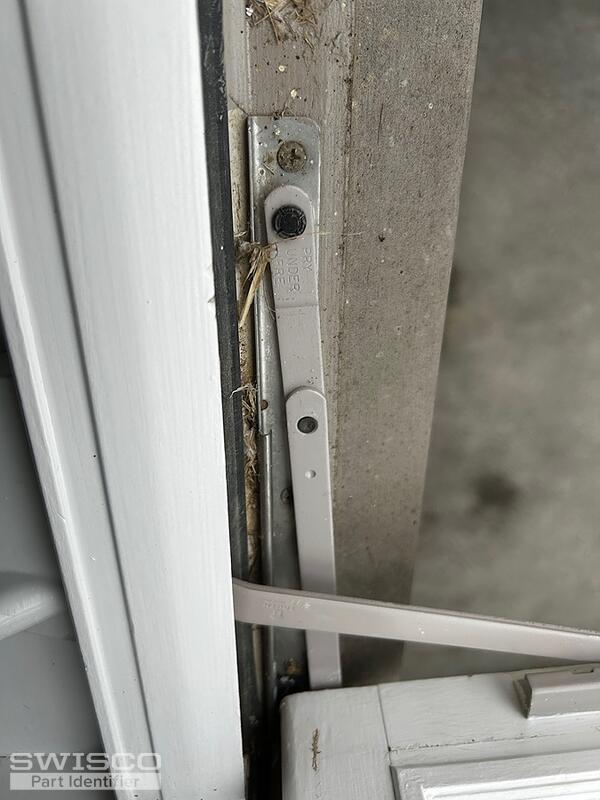

Also need 2 sets of hinges for the same type windows

5 user uploaded images

4 Replies

Emily from SWISCO

Jan 31, 2024 3:51 pm

Hello there!

Thank you for reaching out to us. I recommend you start by taking a look at the 39-412 and 39-413 operators. As for the hinge, check out the 36-048 and 36-049. You'll want to review the dimensions for each of our parts and compare them with yours to see if any match what you're searching for.

For the hinges, we recommend replacing the top and bottom at the same time.

Quick Learner from New York

Jan 31, 2024 6:17 pm

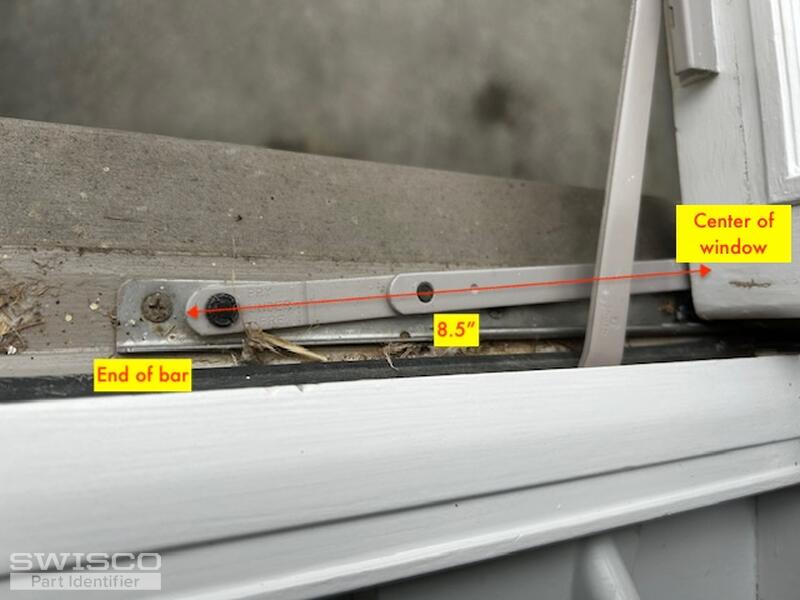

the length on the 10" (36-048) short arm doesnt seem long enough(5") compared to the one we have (see attached photos, 8.5" plus or minus). The 14" has no dimensions for the shorter arm, do you know what that might be?

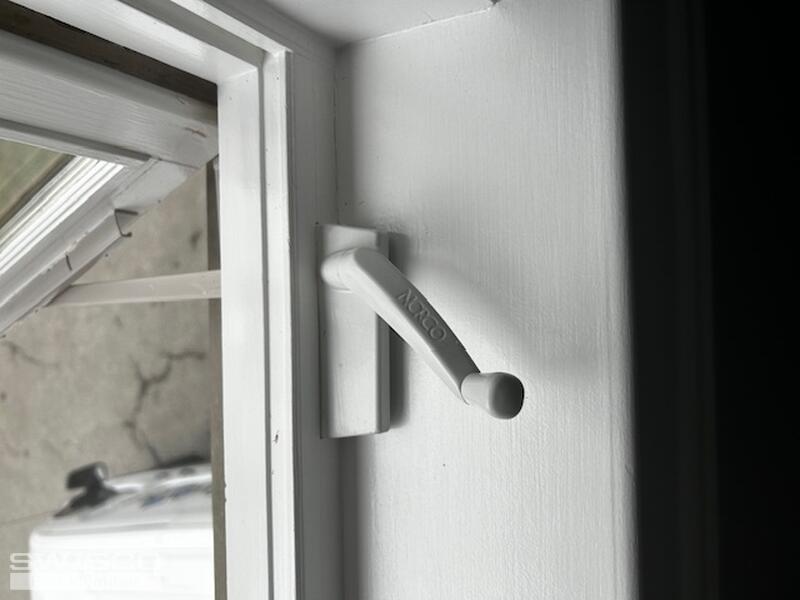

As for the operator arms, are the plastic covers removable? Im trying, against all odds perhaps, to match exactly or close to what is exsiting on a clients home. The cover on 39-412 is more modern and rounded. Can these covers be reomoved so i can can use our exsting ones?

2 user uploaded images

Emily from SWISCO

Feb 1, 2024 9:14 am

The shorter arm on the 36-049 is 7-15/16" long.

As for the covers, they're built into the base so I'm afraid they can't be removed. We aren't sure who may have this older style of operator with the cover you're looking for, unfortunately. I am very sorry for the inconvenience.
