Not sure which parts to order

A handy person from New Jersey says:
June 29, 2022

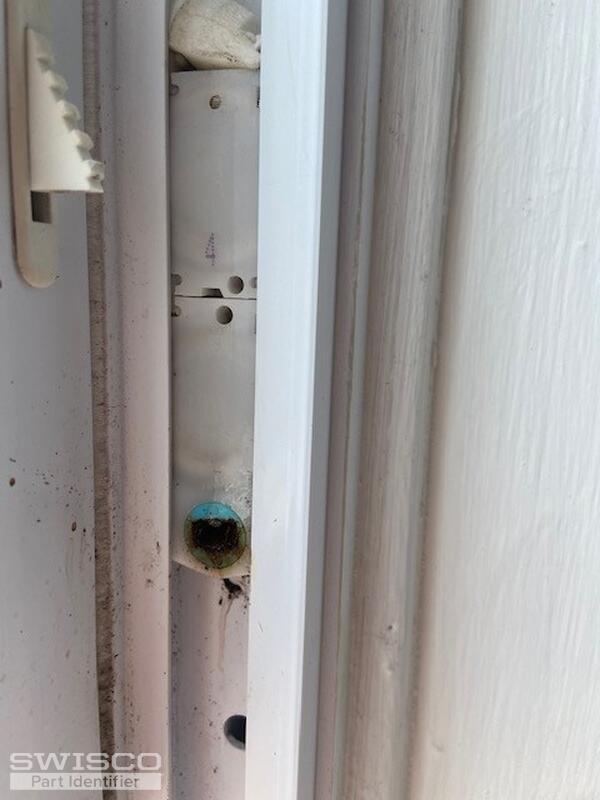

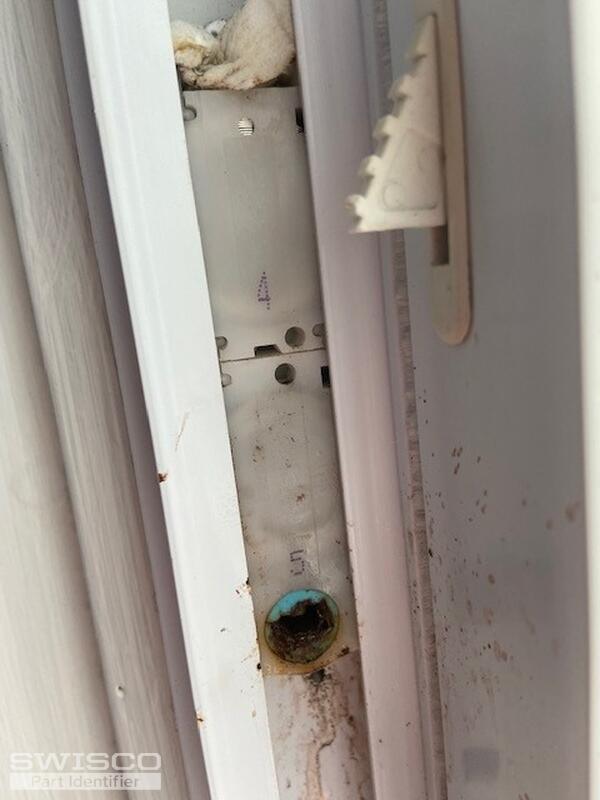

Hi, Can you help me identify which parts I need to order. Both pivot bar snapped off in the pivot shoe and the broken piece of bar won't come out.
Thumbnail of the uploaded file named Pilot Bar.jpg
Thumbnail of the uploaded file named Pivot shoe 2.jpg
Thumbnail of the uploaded file named Pivot Shoe.jpg
Thumbnail of the uploaded file named Window.jpg
Profile picture of Casey
Casey from SWISCO responded:
July 1, 2022

Hello,

Take a look and compare the 26-382S pivot housing, 26-040, pivot bar, and 15-087 coil housing, along with the related items on our product pages, to your original hardware. Thank you!
A handy person from New Jersey says:
July 1, 2022

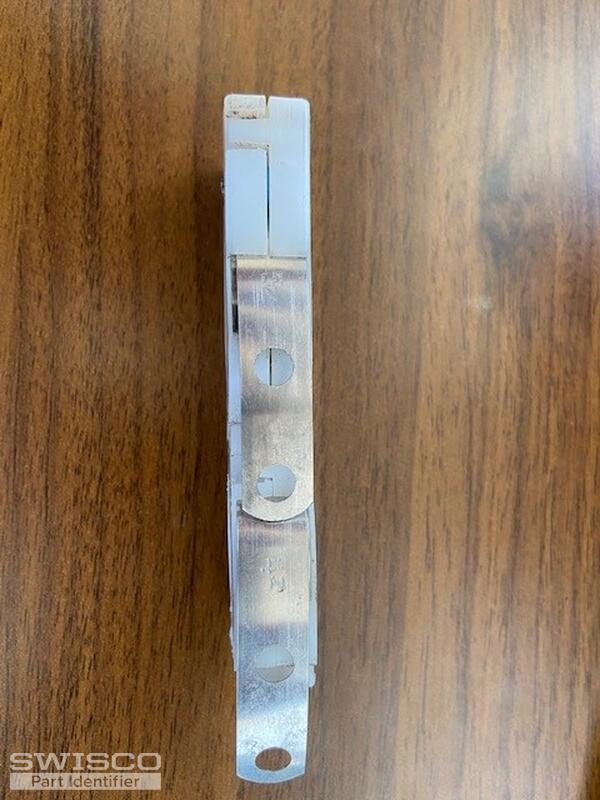

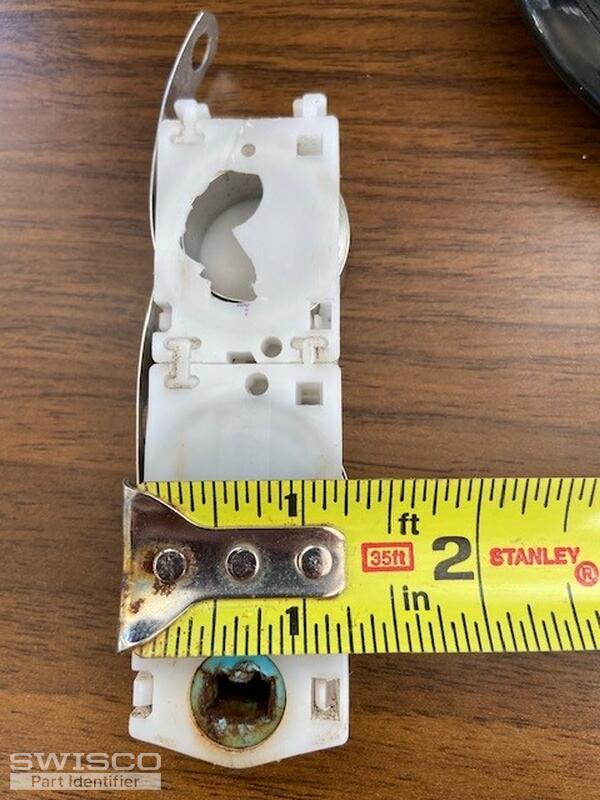

Including removed pilot shoe/coil pictures.

Can you tell me which replacement part to buy?

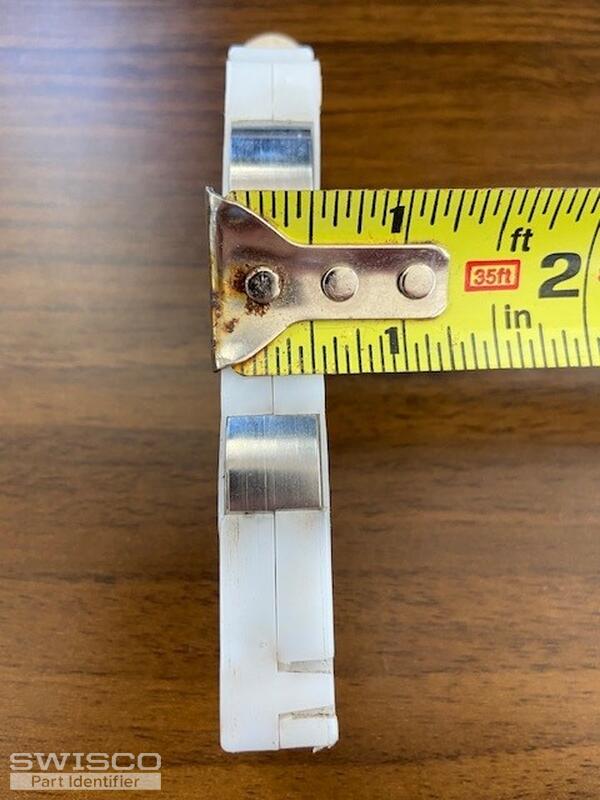

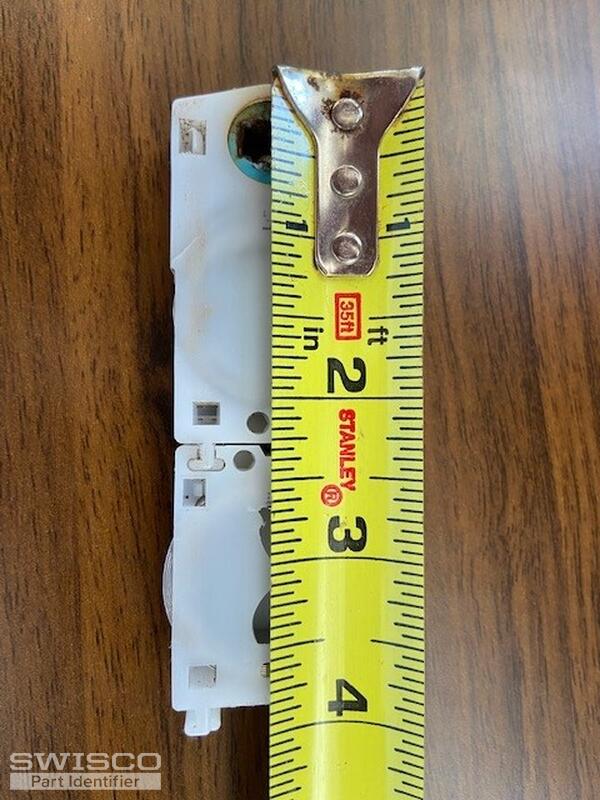

The pivot shoe coil assembly appears to be 9/16 deep, 1 ΒΌ wide, and 3 7/8 tall not including the two tabs at the top.
Thumbnail of the uploaded file named pivot shoe 4.jpg
Thumbnail of the uploaded file named pivot shoe 6.jpg
Thumbnail of the uploaded file named pilvot shoe 2.jpg
Thumbnail of the uploaded file named pivot shoe 3 backside.jpg
Thumbnail of the uploaded file named pivot shoe 5.jpg
Profile picture of Casey
Casey from SWISCO responded:
July 1, 2022

It still looks like the 15-087, which uses the S180 coil springs and related items on the housing product page, would still be our best replacement option for your assembly. Please note that ours with a thickness, shown below, is a bit different than the measurements you've provided. You may want to double-check to ensure that our parts will fit into your window channel.
