NuAir Window

Quick Learner

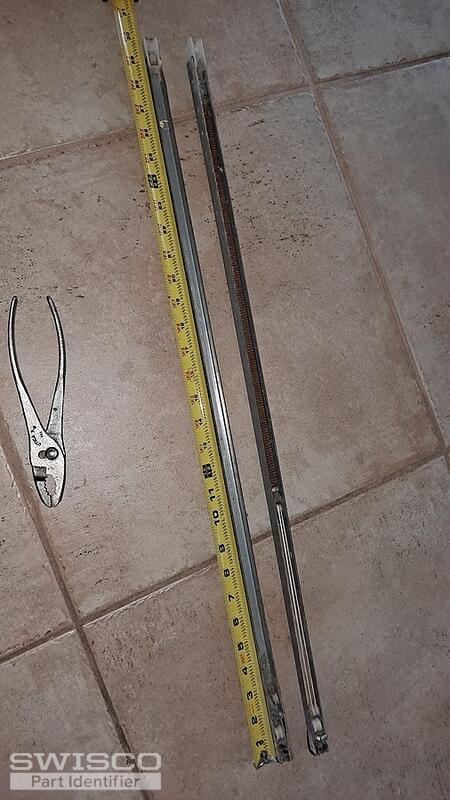

29" balancer
Beading
Other parts to suggest
5 user uploaded images
4 Replies
Emily
Emily from SWISCO
SWISCO
Expert

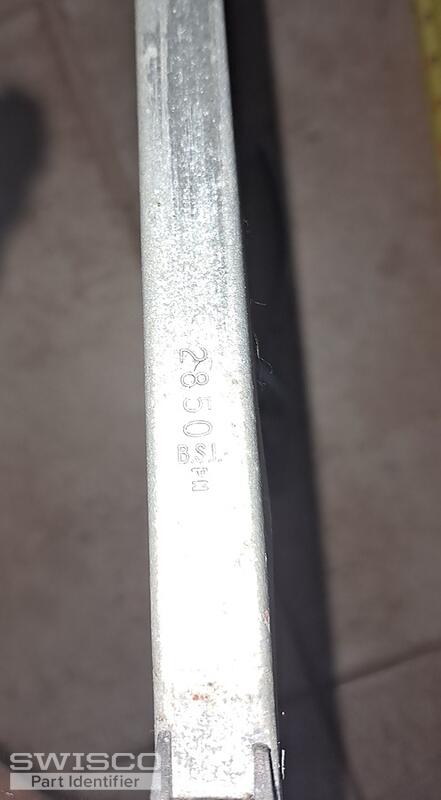

Thanks for reaching out to us. Starting with the balance, it looks like the bottom shoe is wingless but please correct me if I'm wrong. If that's the case, you'd want the S351-29 or S390-29 depending on the depth of the bottom fitting. You can also select the 2850 stamp option for the replacements. For a new take out clip, see the 16-002 which is sold separately.

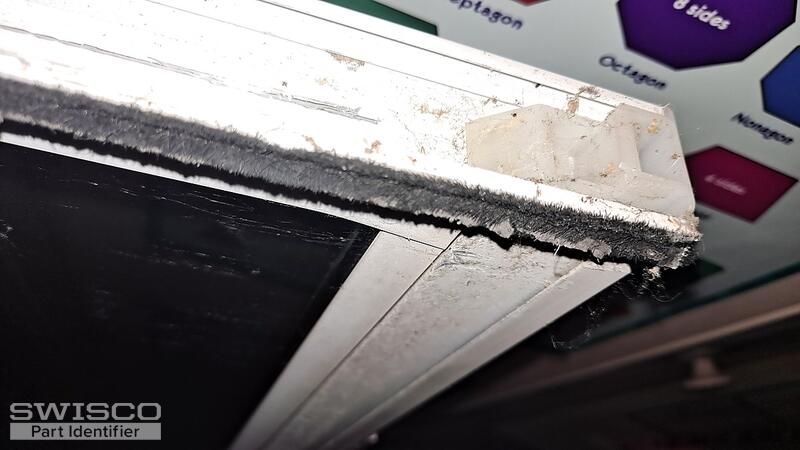

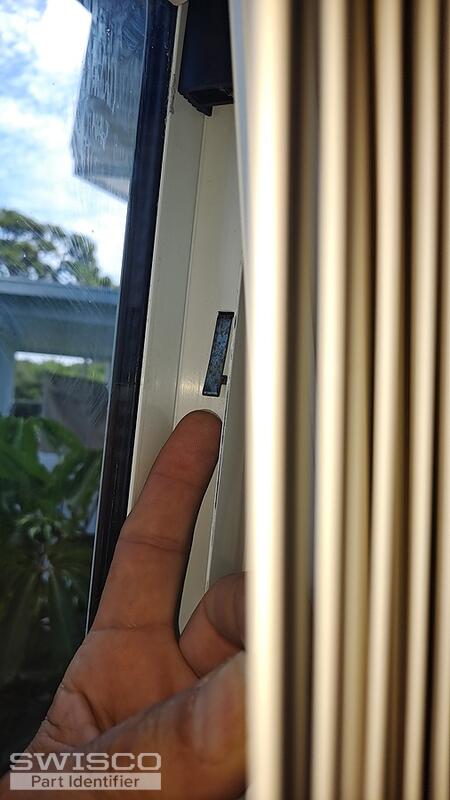

We aren't able to ID the top sash guide from your last photo, however. Can you show us photos of it removed so that we can see the front and side?

Comparison of the S351 and S390 balance shoes.
Comparison of the S351 and S390 balance shoes.

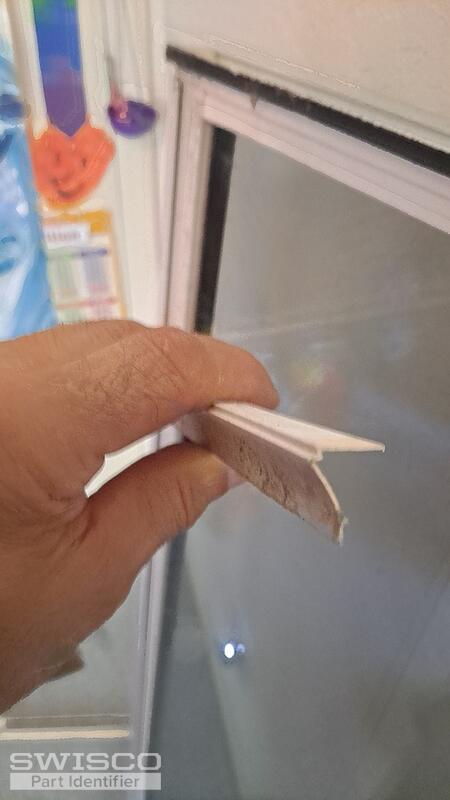

We don't sell an identical match for the glazing but take a look at the 55-029. Review the specifications and see if you think they could work for you.

Profile diagram of 55-029
Profile diagram of 55-029

Home Owner from Florida

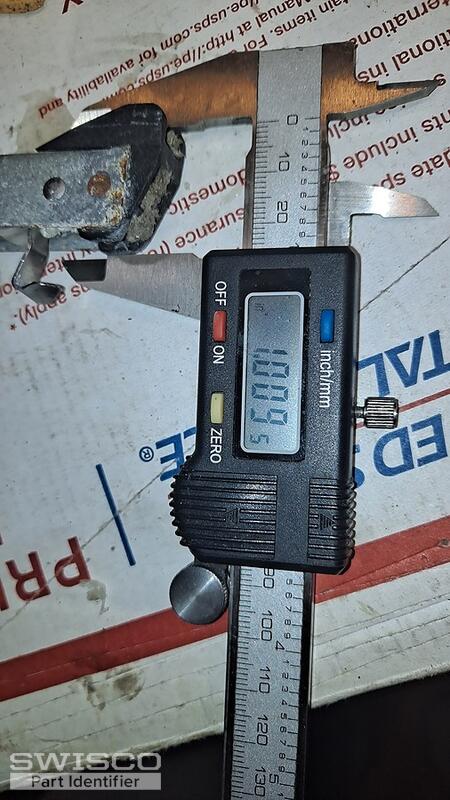

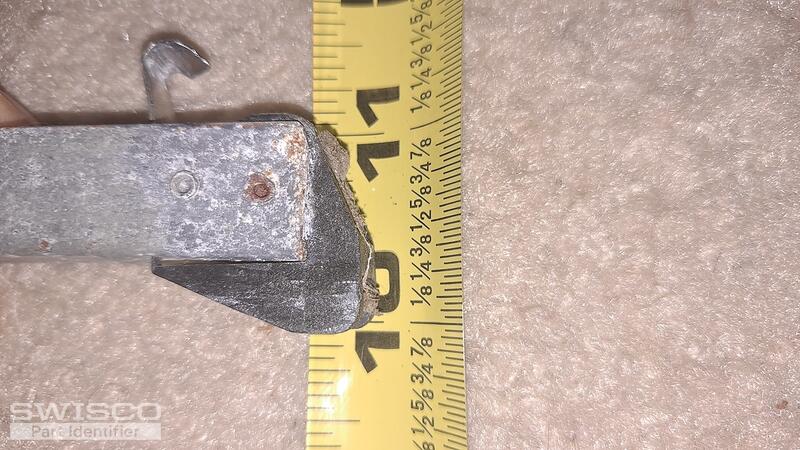

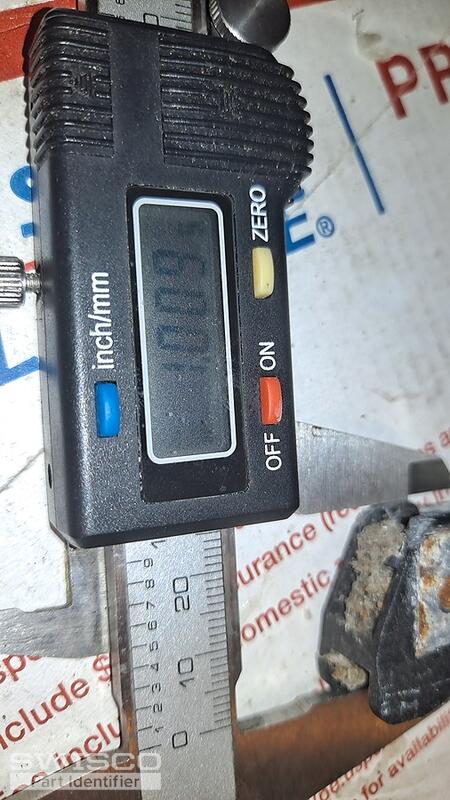

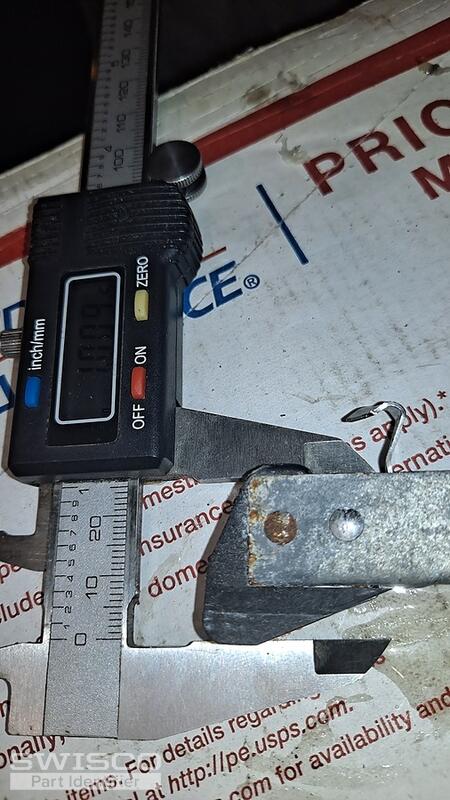

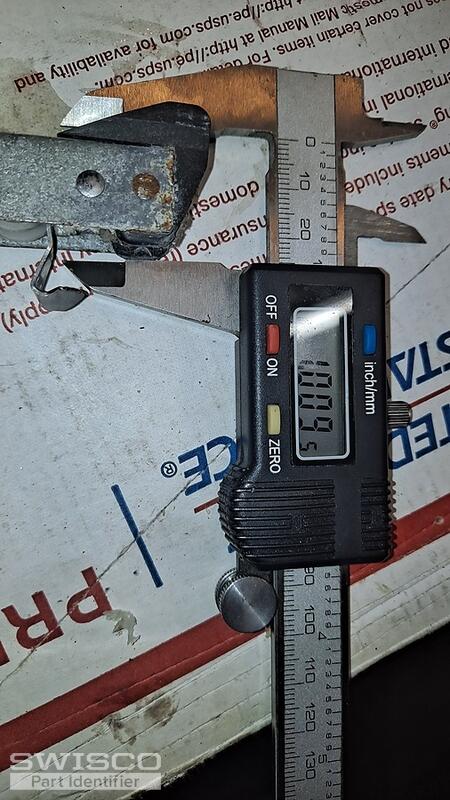

Using a precision caliper it appears that my measurement across the plastic tabs at the bottom measures just over 1" (1.010")thereby making the S3151 the closest match
5 user uploaded images
Emily
Emily from SWISCO
SWISCO
Expert

I agree, our Series 351 indeed is the closest match. Your shoe might have been 1-1/8" at one point but it could have worn down over time from use.
