NuAir Windows, Channel Block & Tackle Balance, Non-Tilt, d 2830
Home Owner from St. Petersburg, Florida
Jan 13, 2023 12:31 pm

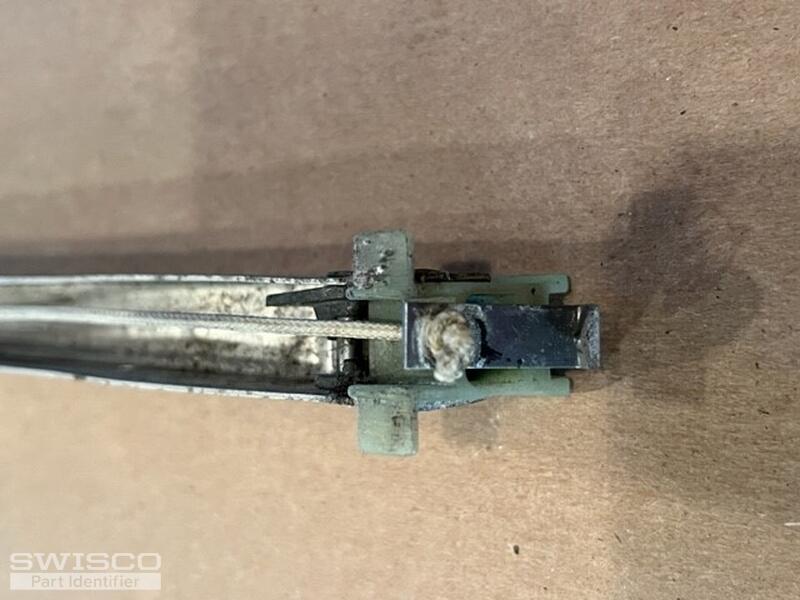

Hello, I have NuAir Non-Tilt Windows on which I need to replace the Channel Balances. Based on internet videos, I believe they are BSI 1/2 inch Channel Block and Tackle Balances, Non-Tilt. The numbers stamped on the Balances are d 2830. My photos are attached. Please determine the correct ones needed and let me know the price. I need Four (4). Thank you!
5 user uploaded images
3 Replies
Home Owner from St. Petersburg, Florida
Jan 13, 2023 12:32 pm
P.S. The Channel Balance measures 29 inches metal to metal. Thanks.
Casey from SWISCO
Jan 13, 2023 3:38 pm
Hello,
With this combination of attachments, you could have either an S380-29 or S385-29 channel balance. You’ll need to measure as shown below. The Series 380 has a 1" bottom attachment, and the Series 385 has a 1-3/32" attachment. You'll also need 2830 spring strength options for your replacement balances.
Thank you and let us know if you have any other questions or concerns.
Comparison of the S378, S380 and S385 balance shoes.
