Nuair Channel Balance : SWISCO.com

Quick Learner from DeLand FL

Jul 2, 2024 8:39 am

I need to get 8 of this Channel Balance for 4 Nuair windows. Also I need to see what other parts you stock for the replacement like the plastic spacer that go in the hole in the window edge or top bottom part the Channel Balance locks into to lift the window.

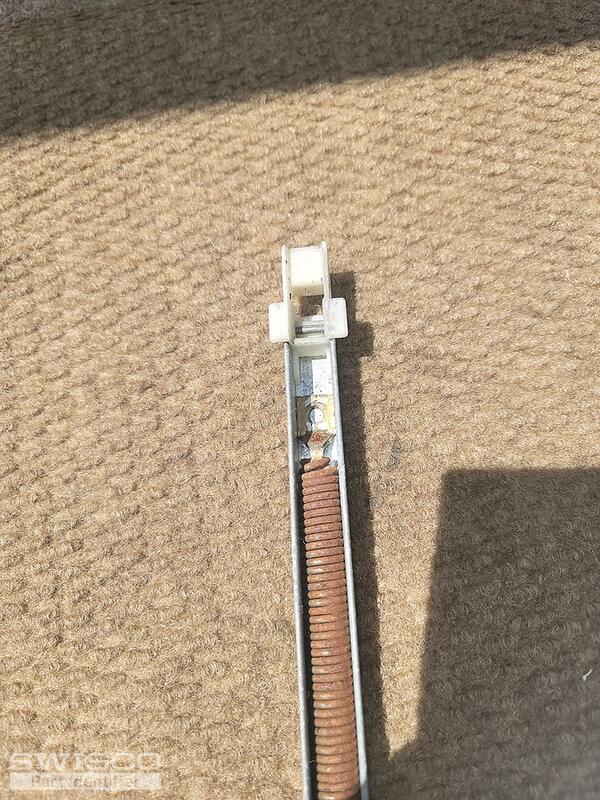

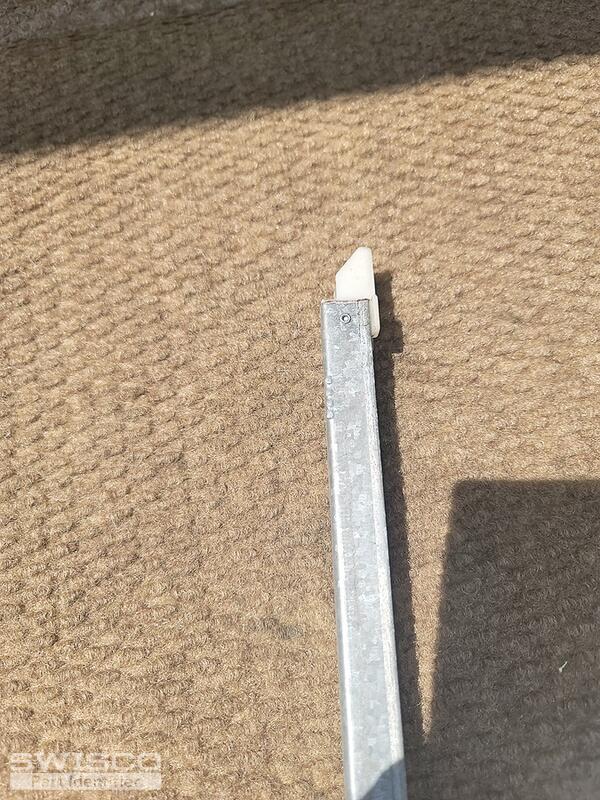

5 user uploaded images

4 Replies

Emily from SWISCO

Jul 5, 2024 10:00 am

Hello there!

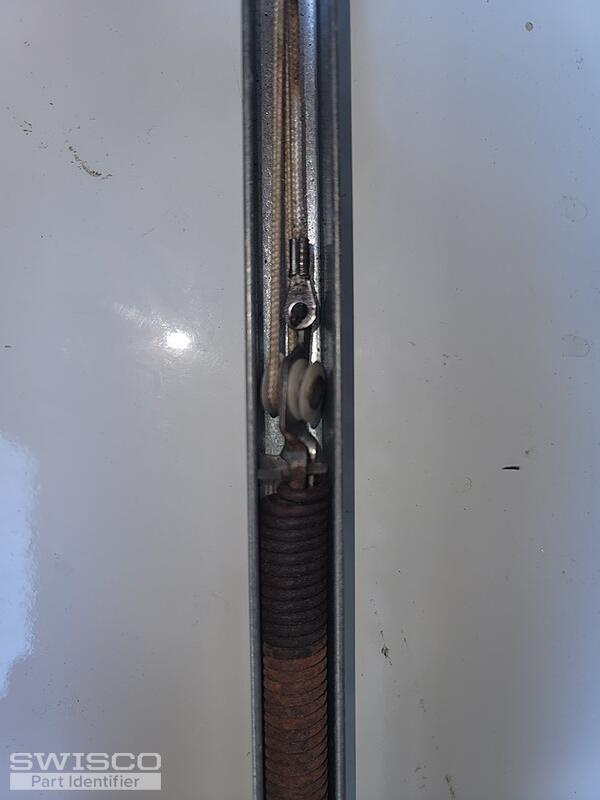

Thanks for reaching out to us. We ought to be able to help with this. Can show us a photo of the inside of the metal channel where the innerspring connects to the pulley mechanism? That'd be located in the middle of the channel.

Quick Learner from DeLand FL

Jul 5, 2024 10:53 am

If you need any more information please let me know.

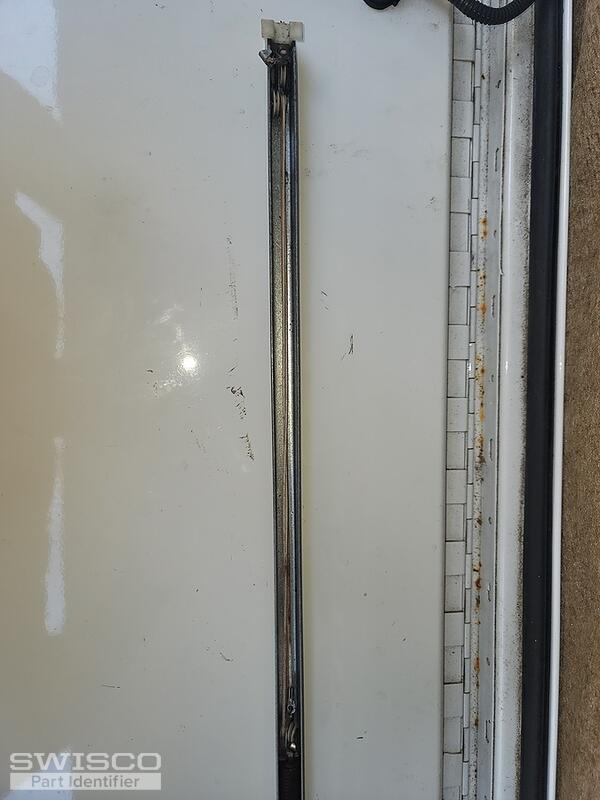

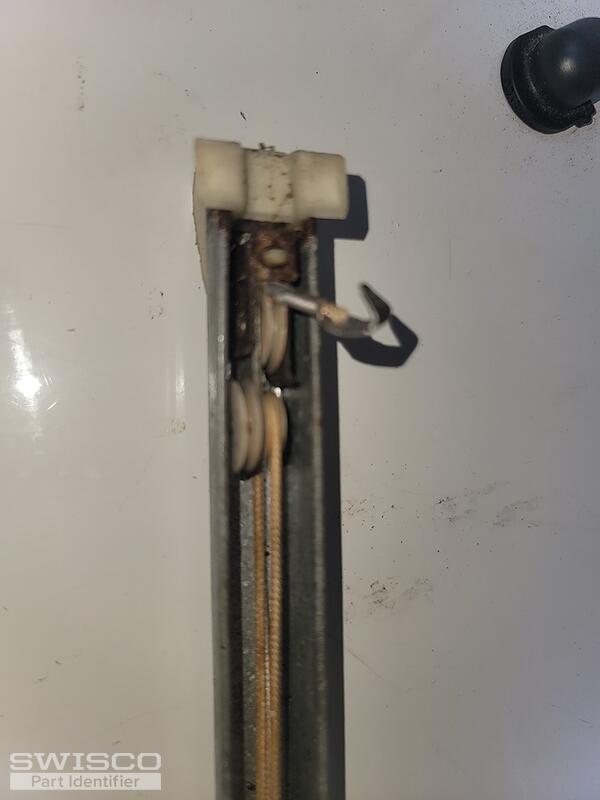

3 user uploaded images

Emily from SWISCO

Jul 5, 2024 12:57 pm

Great, thank you! Based on these photos, you can use the S380-35 or S385-35 depending on the depth of the bottom shoe. You'll have to measure as shown below. I also recommend the 3440 stamp option for your replacements.

Let me know if you have any questions!

Comparison of the S378, S380 and S385 balance shoes.
