Nuair Window Chanel Balance 2830, circa 1995

Question

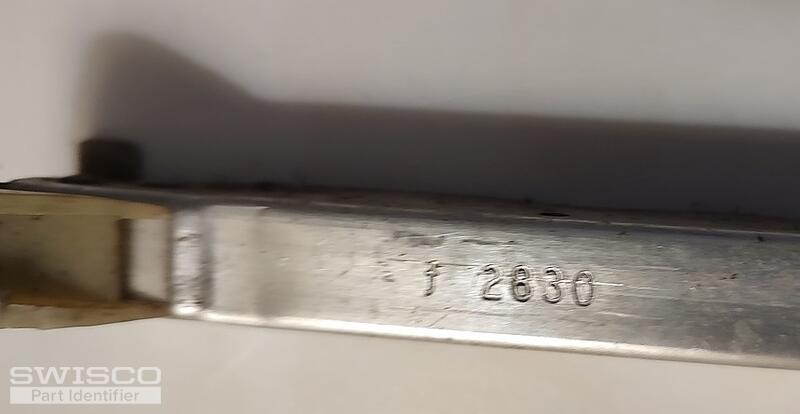

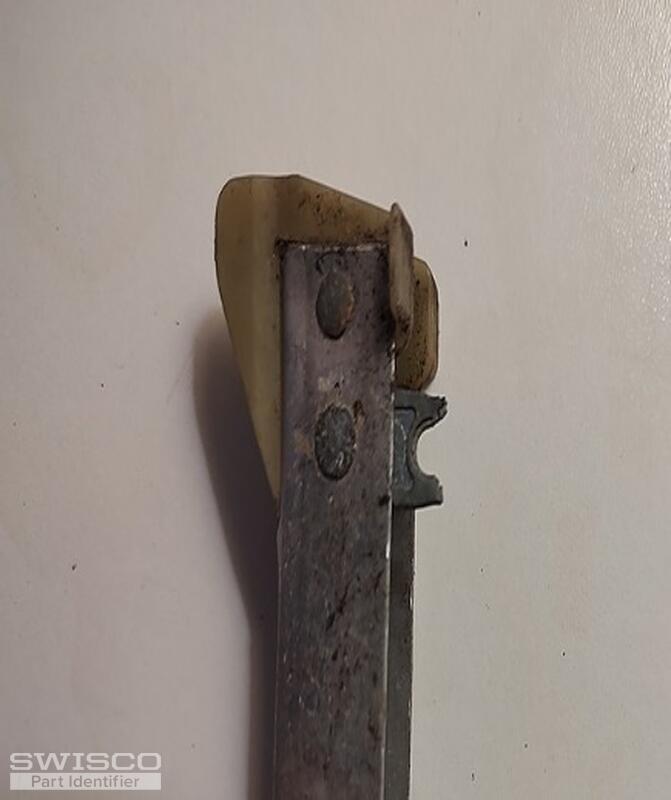

As you can see the pulley and spring have fallen off! the channel width in 1/2" . I need a new channel complete with ends!

SOS! I appreciate your help!
Thanks Janis Richter (doing this for my husband Peter)

Bob · Accepted Answer

Thanks for posting. At first glance, I think this might be an S380-29 or S385-29 Channel Balance. The only difference between these two balances is the 'depth' of the bottom nylon shoe, or the 'heel-to-toe' measurement. See the diagram below for reference. In either case, for a stamp option go with 2830.

Comparison of the S378, S380 and S385 balance shoes.
