Nuprime handle and gears

Start a new Discussion

Quick Learner from Nj

Mar 21, 2021 1:07 pm

Need to replace.

1 user uploaded image

6 Replies

Tom from SWISCO

Mar 23, 2021 12:40 pm

If you need new gears, then you need an all new operator. We would need you to remove yours from the window and show me a clear photo of the entire unit, arms and all. From there, I will do my best to find a match.

Quick Learner from Nj

Apr 1, 2021 12:26 pm

Do these photos help? If not, I'll try to remove them from the window.

2 user uploaded images

Tom from SWISCO

Apr 1, 2021 3:14 pm

I'm afraid not. These photos really don't show me anything your first photo didn't. We will need to see the mechanism out of the window in order to help. Seeing the entire thing in one shot will allow me to find a good replacement; I'm very confident we carry one, I just need to see it.

Quick Learner from Nj

Apr 2, 2021 4:04 pm

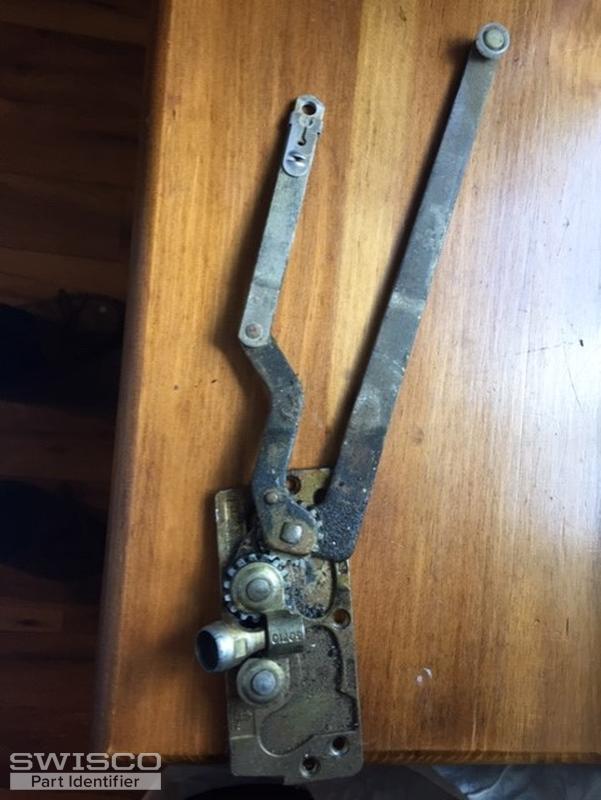

The number stamped is 30710.

1 user uploaded image

Tom from SWISCO

Apr 5, 2021 8:27 am

Perfect, thanks! This looks like either a 39-031 or 39-155 Split-Arm Operator. The difference in these two very similar assemblies is the length of the link arms, so compare the dimensions of both with your old operator to see what matches best. For a new cover, see our 39-107. For a new handle, see the 39-114L.
