Nuprime season-all windows D209.812-D213.676

Home Owner from Pittsburgh, PA
Jul 15, 2024 11:22 am
I want to repair two of four windows.

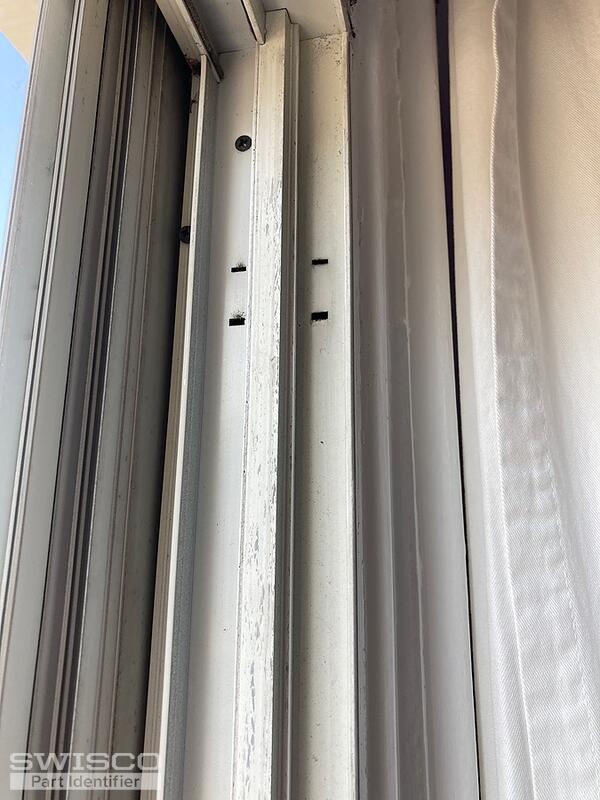

2 take-up clips are missing

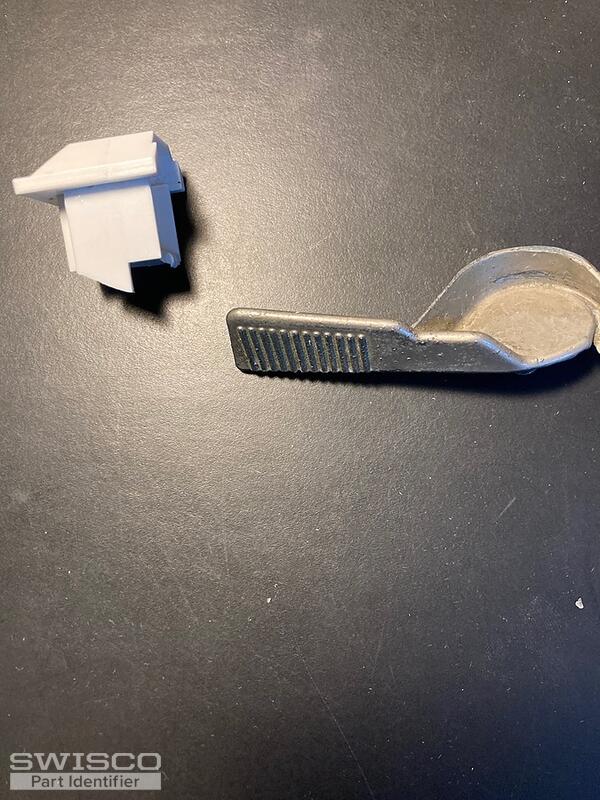

1 top sash guide is broken
1 sweep lock is broken
IMG_6013 IMG_6014 IMG_6015
3 user uploaded images
1 Replies
+ Add a Comment
Casey
Casey from SWISCO
Jul 16, 2024 2:59 pm
SWISCO
EXPERT

Hello,

Take a look and compare the 16-002 take-out clips to an intact part from one of your windows. We can't be sure without seeing the entire top sash guide, but the top is similar to the 18-110.

Alternate image for 16-002
Alternate image for 16-002

Alternate view of 18-110
Alternate view of 18-110

As for the sash lock, see the Nuprime 90-042, which is used with the 90-041 face-mounted keeper. Thank you!

Detail of 90-042
Detail of 90-042

Dimensions for 90-041
Dimensions for 90-041
