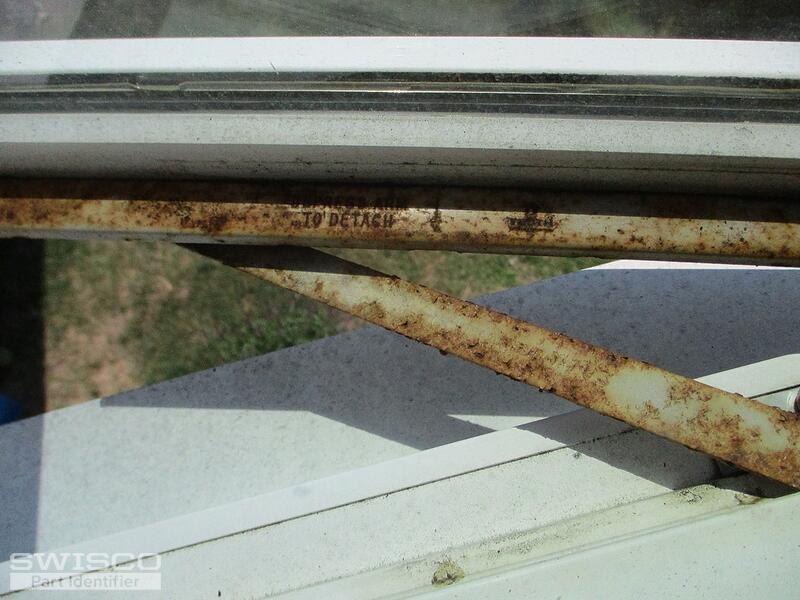

THERE ARE 4EA WINDOWS, ALL OUTSWING, 2 EA LH, 2 EA RH. THEY ARE ABOUT 25 OR SO YEARS OLD,TRUST MECHANISM.

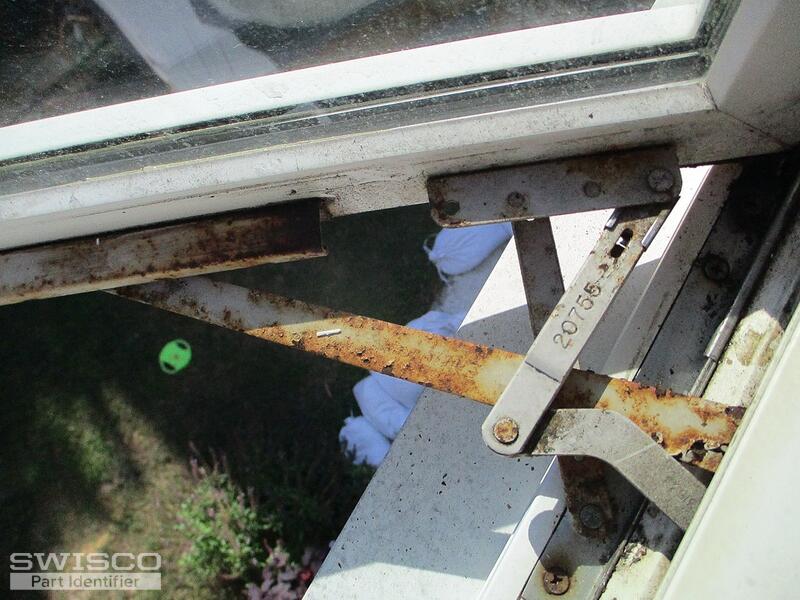

OTHER THAN THE 20755 ON ONE ARM I DON'T SEE ANY OTHER MARKS.
YOUR HELP IS APPRECIATED.
OUTSWING WINDOW
Handy Person from NORFOLK, VA
Oct 12, 2024 3:17 pm
4 user uploaded images
4 Replies
Emily from SWISCO
Oct 16, 2024 8:13 am
Thanks for reaching out to us! The operator looks like it could be the 39-031/39-032 or the 39-155/39-156. The compatible track is the 39-505 and the compatible brackets are the 39-509 and 39-510.
For the hinge, start by taking a look at the 36-048 with a 10" base. You'll want to replace the top and bottom hinges at the same time. Review the specifications for all the parts mentioned and see how they compare with your old hardware.
Dimensions for 39-031
Dimensions for 39-032
Dimensions for 39-155
Dimensions for 39-156
Alternate view of 39-505
Alternate view of 39-505
Profile view of 39-505
Dimensions for 39-509
Dimensions for 39-510
Detail of 36-048
Additional dimensions for 36-048
Handy Person from NORFOLK, VA
Oct 29, 2024 4:24 pm

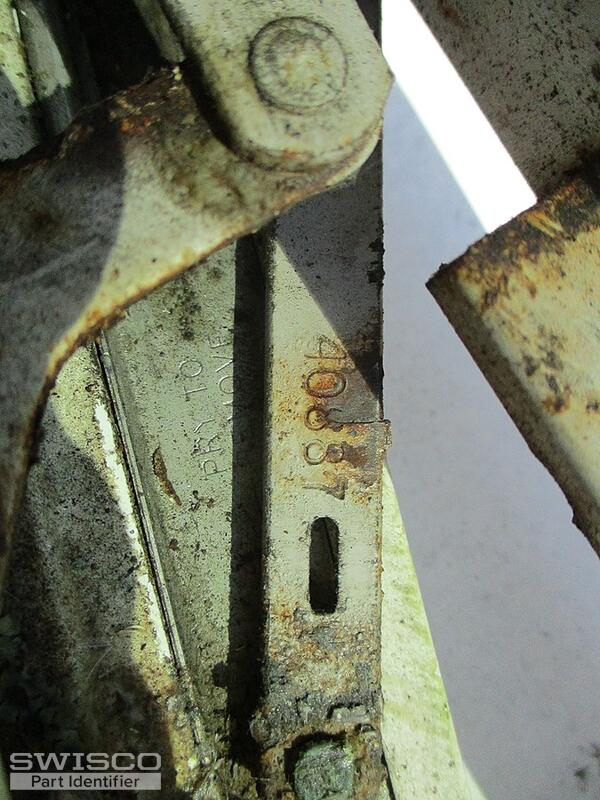

I have tried to include shots showing the part numbers for 2 ea LH windows and 2 ea RH windows which are approx 30 years old. Only one of the four will open and there are no stickers, etc., to be found.

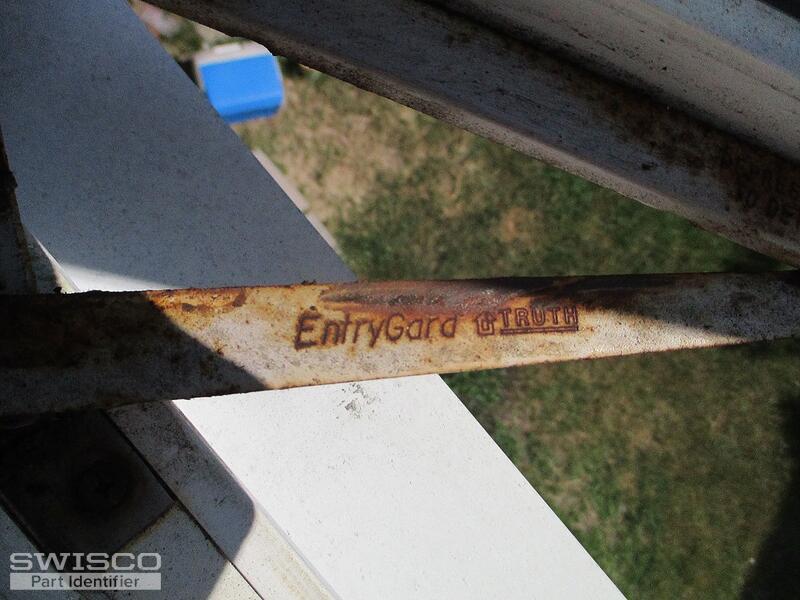

I sure could use your help. The hardware is TRUTH ENTRYGUARD and the numbers I have been able to find are: 20755, W40943-B, and 40944-B.
All help is greatly appreciated.
I sure could use your help. The hardware is TRUTH ENTRYGUARD and the numbers I have been able to find are: 20755, W40943-B, and 40944-B.
All help is greatly appreciated.
4 user uploaded images
Casey from SWISCO
Nov 1, 2024 11:18 am
It looks like you're showing the same parts from your last post shown above. Have you seen Emily's recommendations? Look them over and let us know if you need anything else.
