Old Channel Balances

Start a new Discussion

Quick Learner from Wyoming

Aug 7, 2017 1:30 pm

Attached are multiple pictures showing the type of channel balance I

7 Replies

Tom from SWISCO

Aug 8, 2017 9:30 am

Unfortunately, it looks like your pictures failed to come through. Can you take another shot at posting the photos, as a response to this post?

Quick Learner from Wyoming

Aug 8, 2017 10:55 am

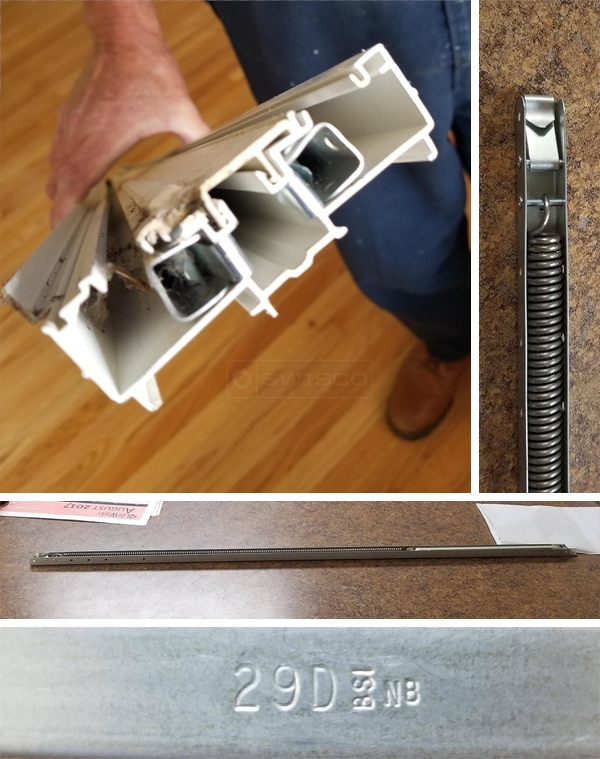

Here are photos of the balance and how its installed.

Thanks!

Paul from SWISCO

Aug 11, 2017 1:05 pm

Thank you! Your pictures show how the balance is installed, but we will also need to see the clip or shoe at the end of the cord. I'm afraid I can't see this in any of your pictures. In the meantime, I recommend that you look at our Channel Balance Home Page and follow the steps in order to find the Series that best matches what you have.

Quick Learner from Cheyenne, Wyoming

Aug 14, 2017 2:40 pm

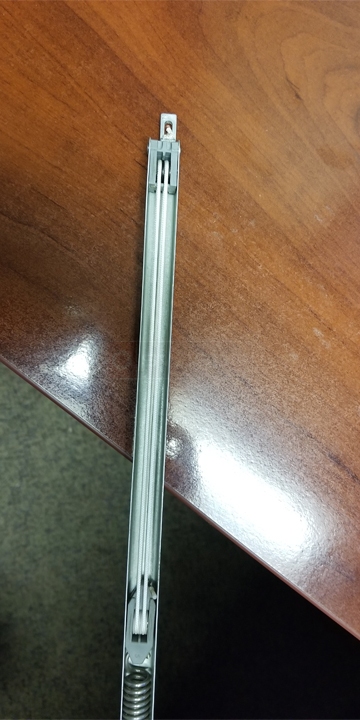

Here are the pictures requested of the opposing end of the balance. Basically the type of channel balance i need has the standard terminal clip on the base of the balance, and then a short S hook on the top (Product Code: 19-029). Then i need to order based on length.

Tom from SWISCO

Aug 21, 2017 10:12 am

Perfect, thank you. We can definitely help, though it will have to be custom made. I'm leaning towards our S770-29 with a 29D stamp option, however we would remove the default screw plug at the top and install a special rivet that you can use for the 19-029 hook. Does that sound good to you? If so, let me know how many you need and we will email you an order link and price quote.

Quick Learner from Cheyenne, Wyoming

Aug 21, 2017 10:34 am

Yes that is perfect! Right now I need to order them at a 30D length and weight, and I will need at least 10 to fix the windows we have on site.
Thanks for the help!
