Old sliding door roller replacement

Quick Learner

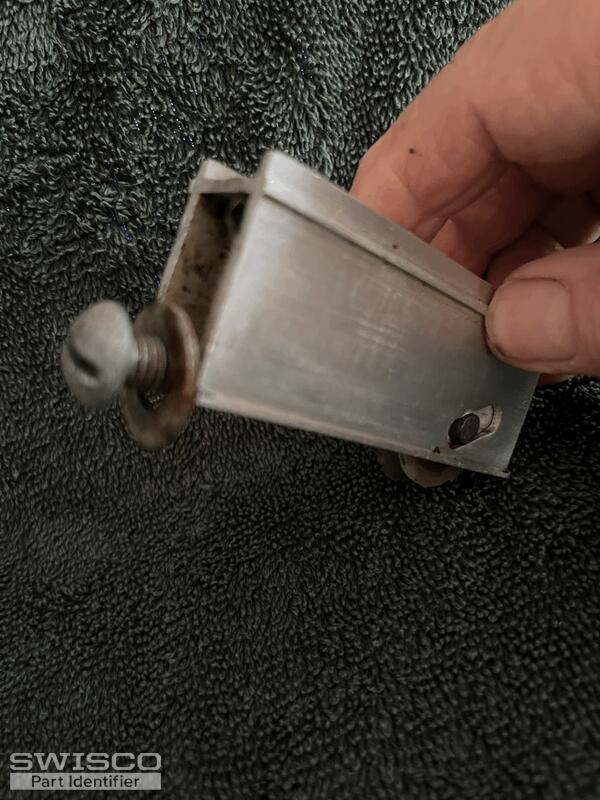

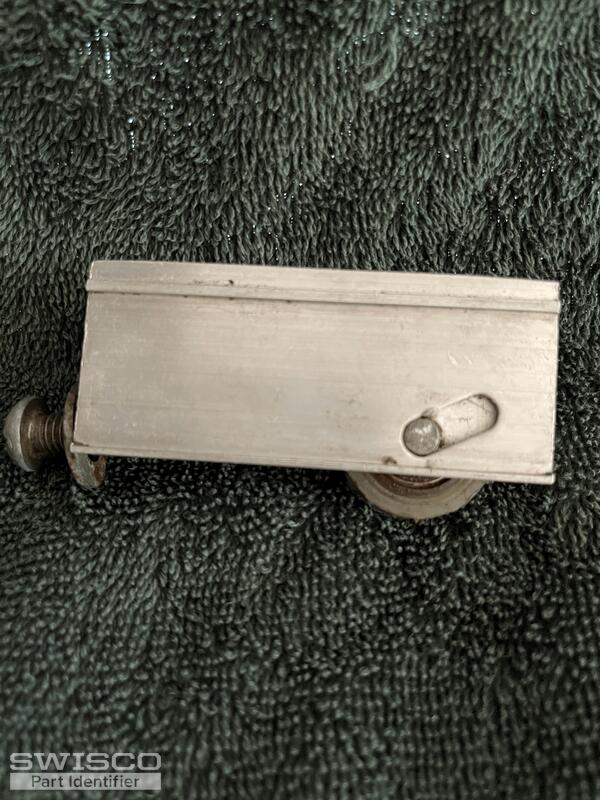

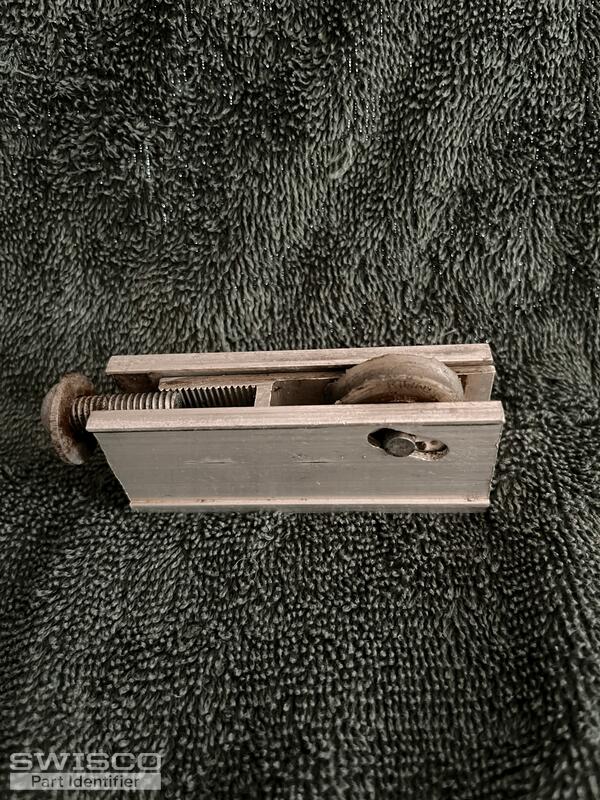

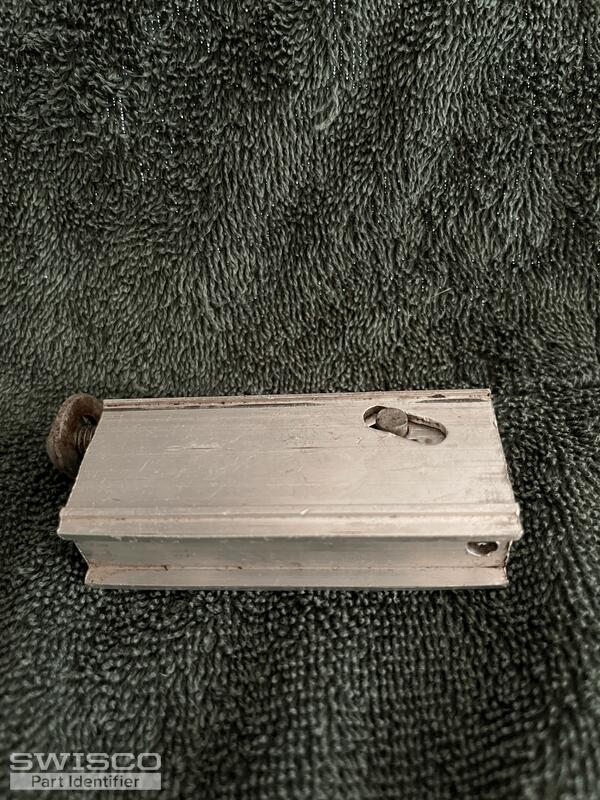

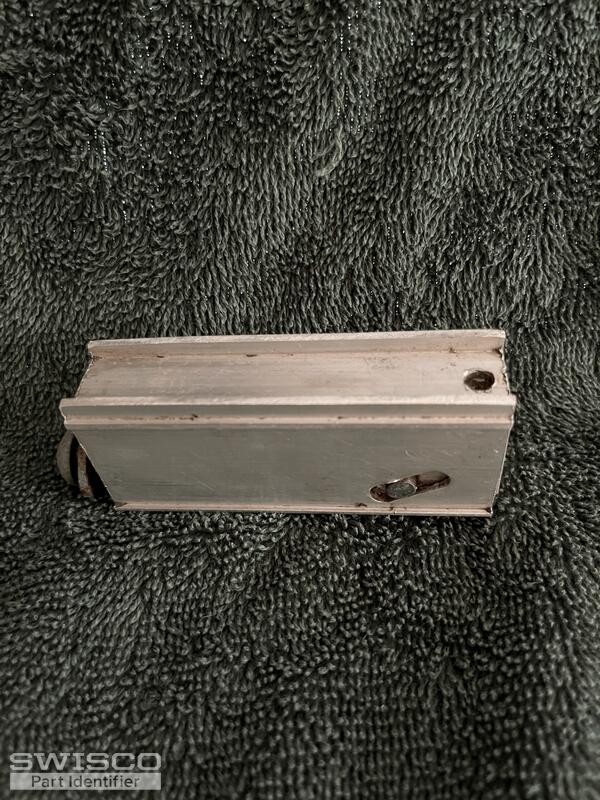

Is there a replacement for this or something i can make work?
length 3 1/4
width 3/4
height 1 3/8
Wheel 1'
5 user uploaded images
3 Replies
Dave Sr.
Dave Sr. from SWISCO
SWISCO
Expert

I have come across this type roller in the past. The model is unfortunately not made anymore, but what I have done was to just swap out the wheel and reuse the housing. Take a look at the 81-223 1-1/8" wheel along with the 81-310 axle set, or even the 81-266 1-1/4" wheel and axle kit. This will be the easiest solution.

If you can't reuse your existing housing, though, then your options become a little less promising. Take a look at the 81-023 and maybe the 81-279. These would take a little time and knowledge on patio doors to successfully adapt them to your patio door. If you aren't handy then I wouldn't try it, but a local pro may be able to get them in there for you.

Home Owner from Houston
Did any of the wheel kits worked? We are currently in the same boat and we lost of one housing
