Opens but doesn't close
Home Owner from Missouri
Aug 3, 2025 10:45 am

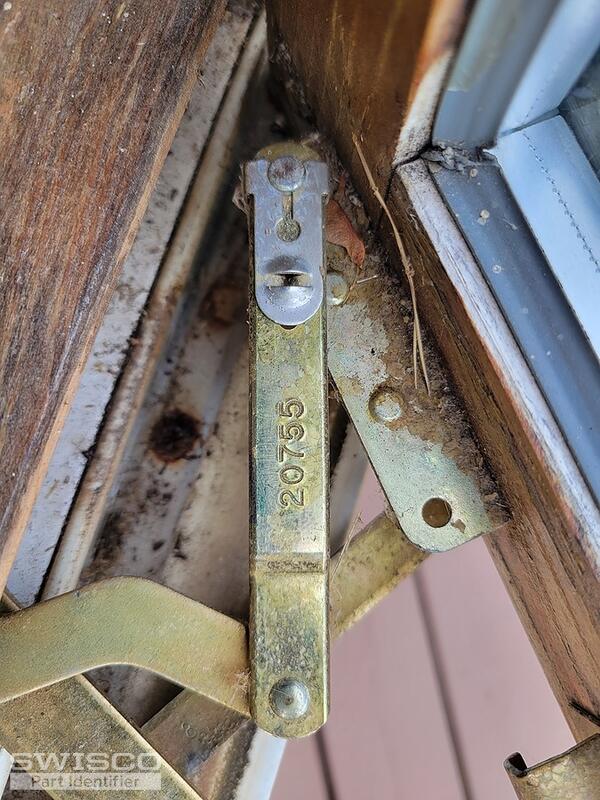

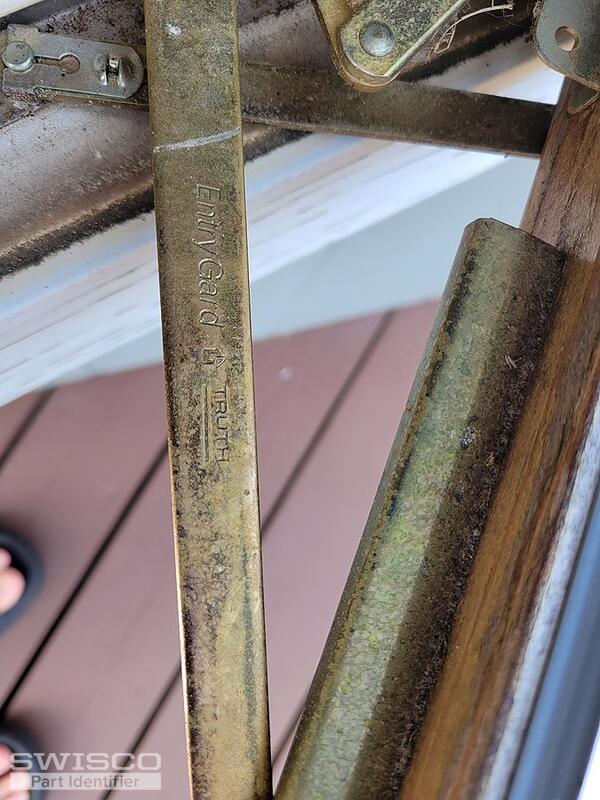

My windows crank handle has come "unscrewed." It will screw in and open, but when I turn it to close it comes unscrewed. Not sure if I need to replace the whole thing or if there's a way to get a new handle. I didn't know if it was factory pressed.
5 user uploaded images
2 Replies
Bob from SWISCO
Aug 3, 2025 4:45 pm
Thanks for posting. Yes, when that worm gear pops out with the handle, unfortunately it means the entire operator has worn down and should be replaced. Fortunately we should be able to help. I think you have the 39-156 Dual-Arm operator (the opposite-handed version is the 39-155). See below to ensure the dimensions match what you have. For a new handle and cover, see the 39-114L and 39-107, sold separately.
Dimensions for 39-156
