Operator for old Silverline casement window.

Quick Learner from Penn Yan, NY

Jun 27, 2024 2:50 pm

Handle broke at operator. From video it looks like I need Truth Dyad Operator 39-316, stud bracket 39-514, detach clip 39-105 and crank handle 39-114. Are these the correct parts?

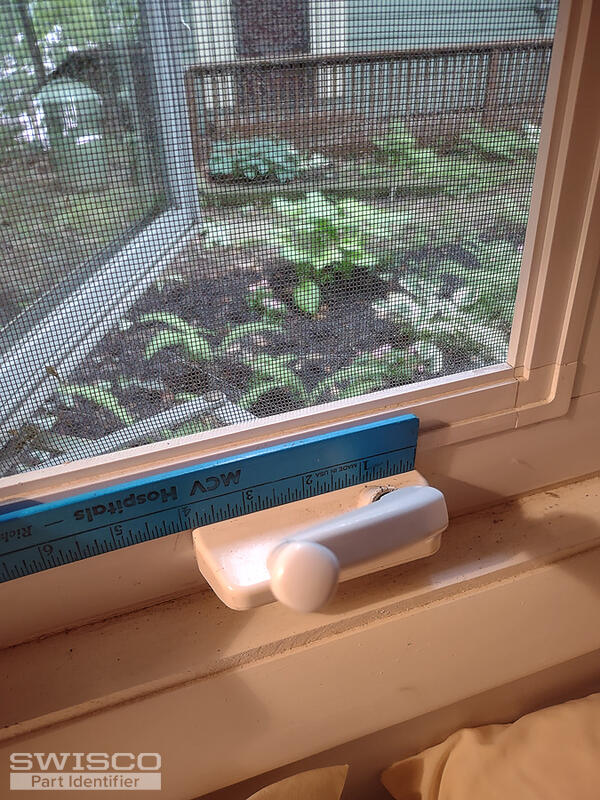

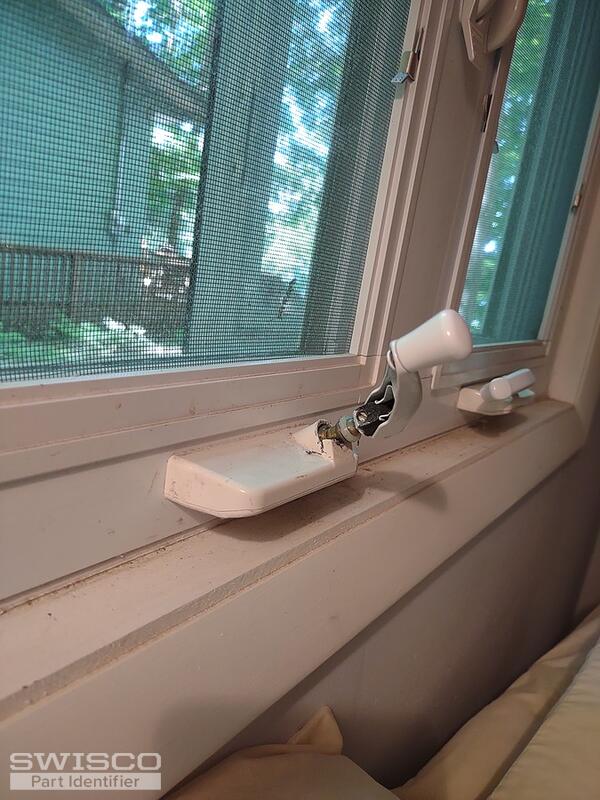

2 user uploaded images

5 Replies

Lauren from SWISCO

Jun 28, 2024 11:41 am

Hello, thank you for posting,

To further review, are you able to provide a closer/clearer picture of the operator arm. Unfortunately I cannot fully confirm the style with the obstruction from the screen. From there we can determine if the parts mentioned are the best fit. Thank you!

Quick Learner from Penn Yan, NY

Jun 28, 2024 11:58 am

Is this helpful?

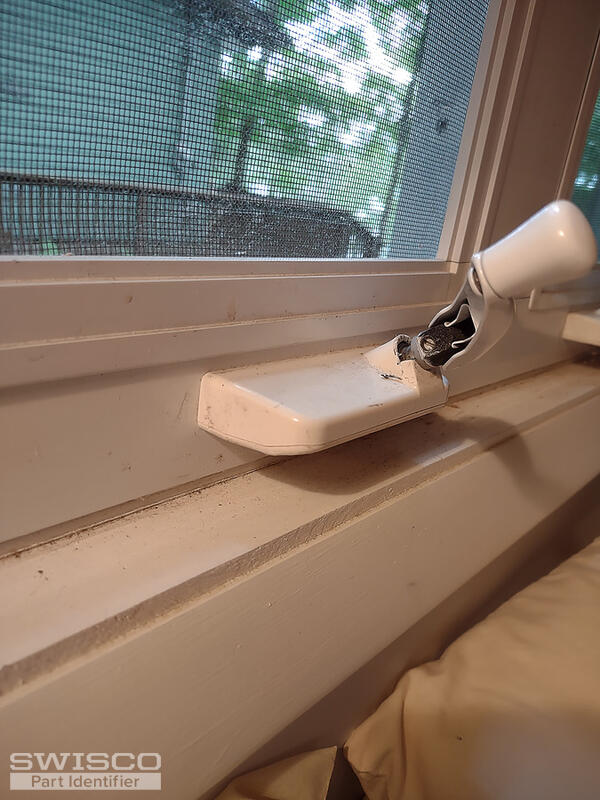

1 user uploaded image

Quick Learner from Penn Yan, NY

Jun 28, 2024 12:51 pm

Sorry, this is what you meant

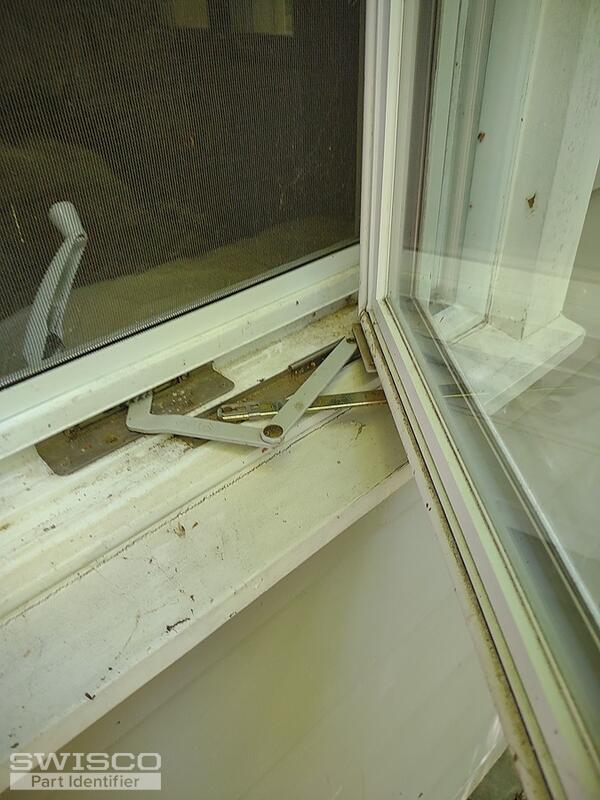

1 user uploaded image

Lauren from SWISCO

Jun 28, 2024 1:52 pm

Thank you!

Seeing the markings, your operator is an older GU operator that is no longer made. The parts picked out should be suitable for your window.

Please follow the below video for details on the conversion and let me know if you have any additional questions!
