PAT # 6.264.252 PAT # 5.820.170 NOV 14

Start a new Discussion

Home Owner from 66762

Jun 27, 2019 2:15 pm

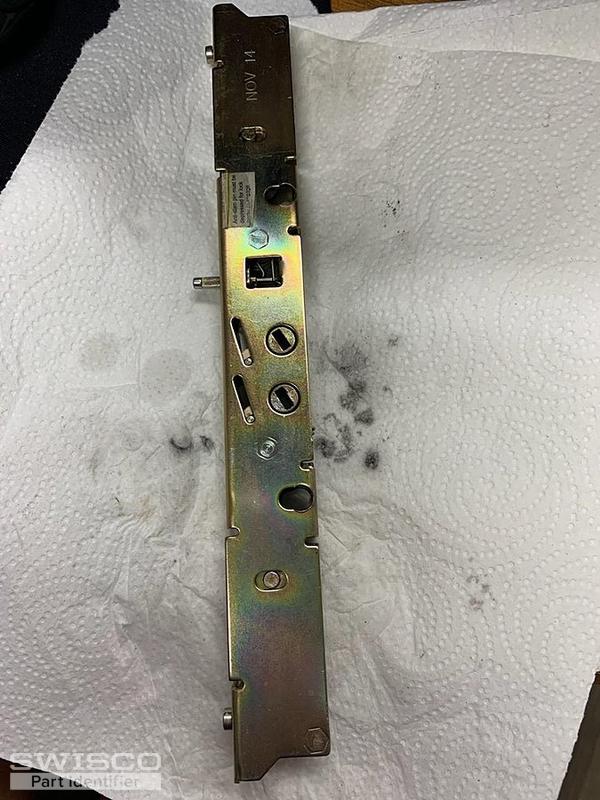

I need help finding this part

4 user uploaded images

7 Replies

Tom from SWISCO

Jul 2, 2019 1:08 pm

Looks like you need a new mortise lock. It's similar in design to our 82-239, but look over our dimensions and photos and let me know if you agree.

Home Owner from 60465

Feb 27, 2020 6:50 pm

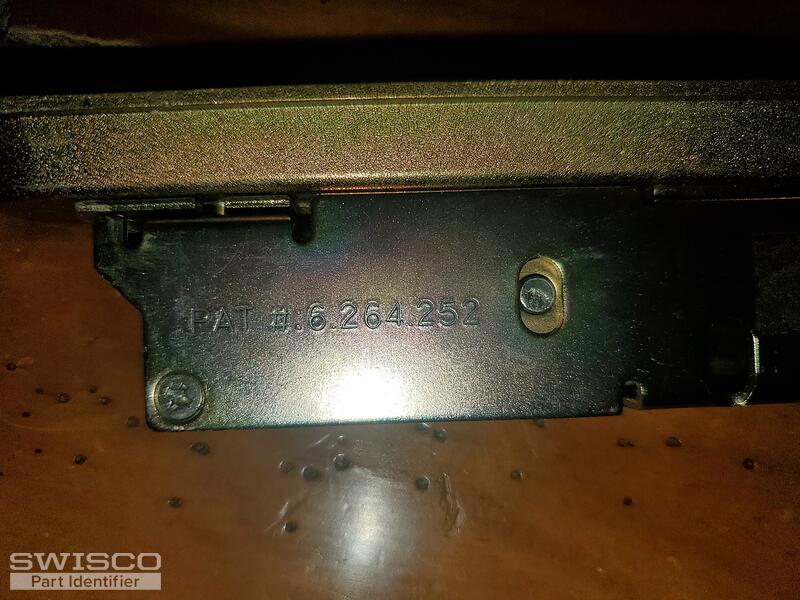

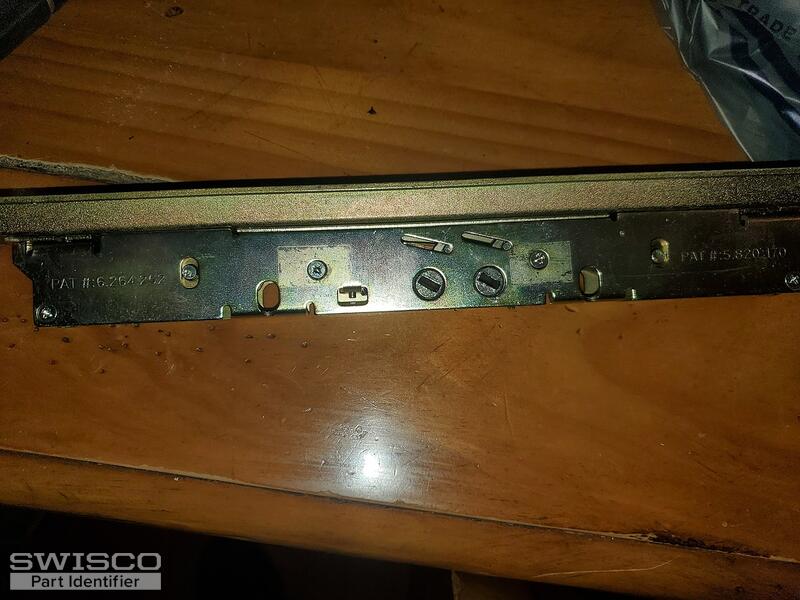

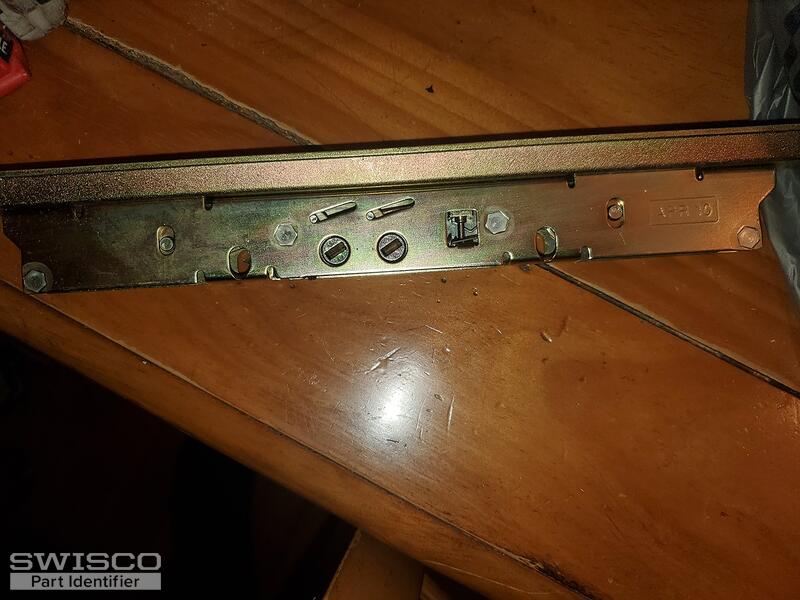

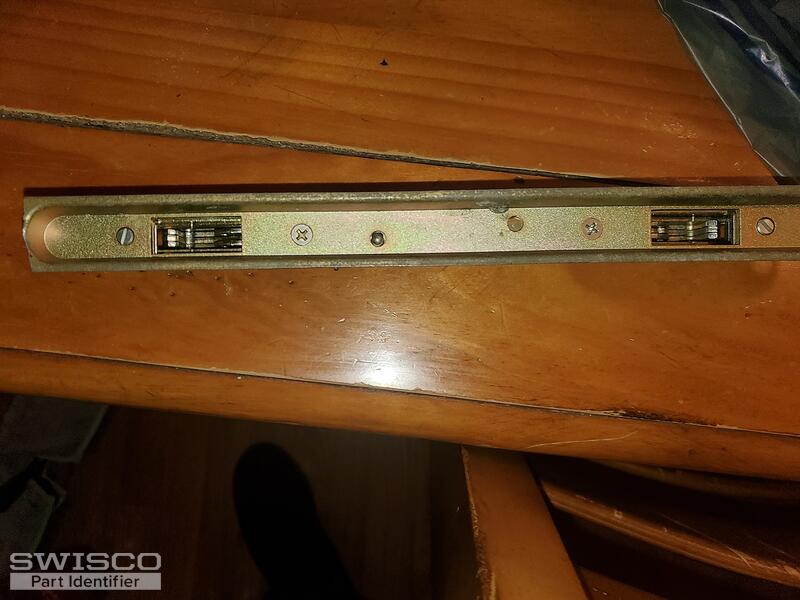

I nead dis lock

4 user uploaded images

Casey from SWISCO

Feb 28, 2020 7:43 am

Please have a look at our 82-239 and 82-260 mortise locks. Carefully compare your measurements with ours and let us know if any one of these is a good match.

Handy Person from Torrance, CA

Nov 17, 2024 2:07 pm

Thank you Tom for the answer I needed and the OP for posting photos of the exact model I had that needed replacing. Ordered and hopefully everything will be back to operating conditions.

Ken

Home Owner from Mark

Apr 7, 2025 4:15 am

I want to buy lock

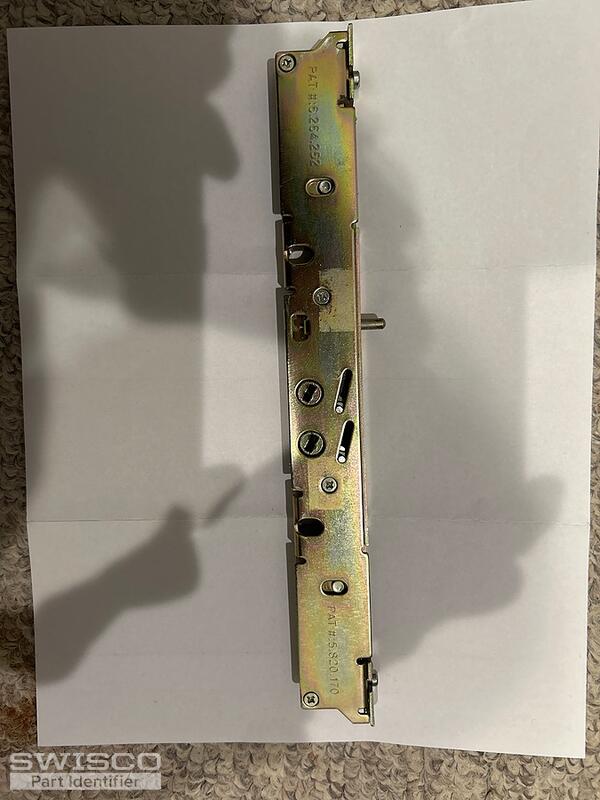

PAT #: 6.264.252 PAT #: 5.820.170

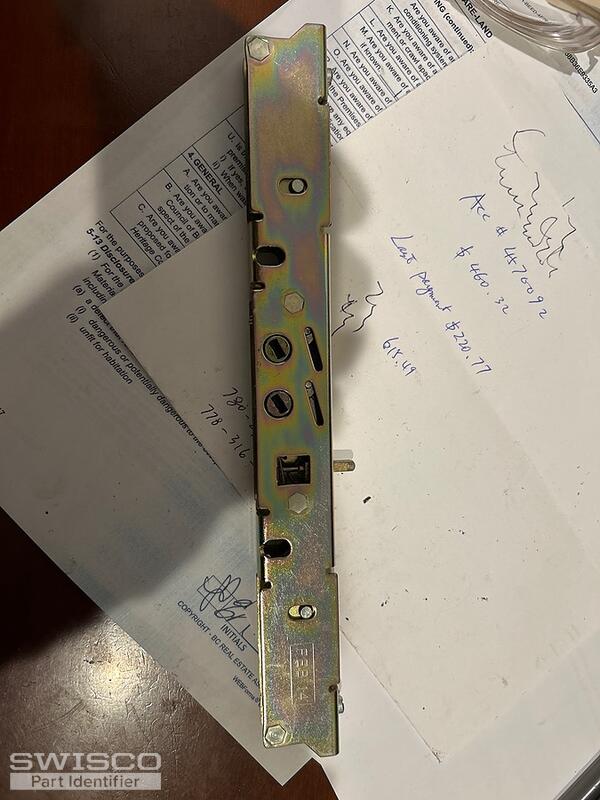

Your photo shows Nov 17, but my lock shows FEB 14. If I buy your lock, will it be the same as my lock? I mean I want to buy the right lock. Otherwise I can't install the lock.

2 user uploaded images

Tom from SWISCO

Apr 9, 2025 3:59 pm

The stamp printed on your lock doesn't really matter in this case. what matters most is size. As long as your dimensions match ours, then it should work for your application.
