PAT5232208 and 5,704,165

Home Owner from Brooklyn, NY

Apr 16, 2020 10:02 pm

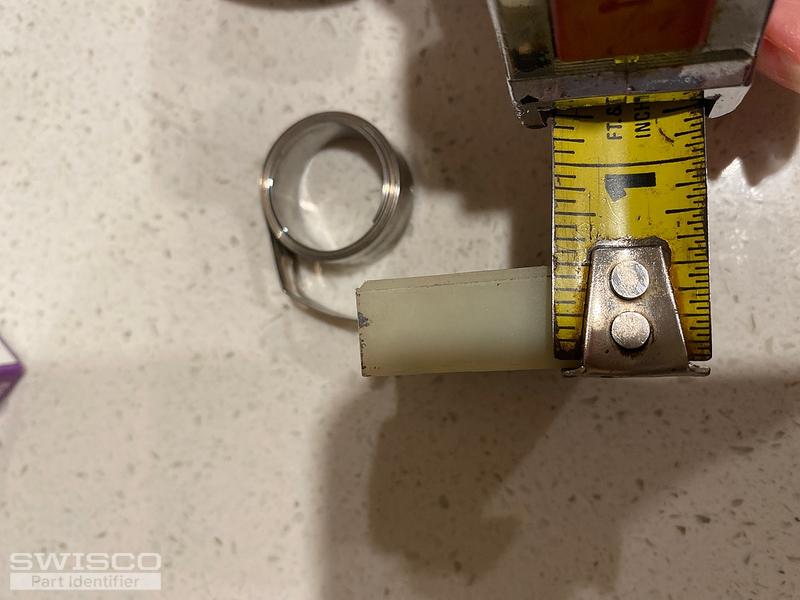

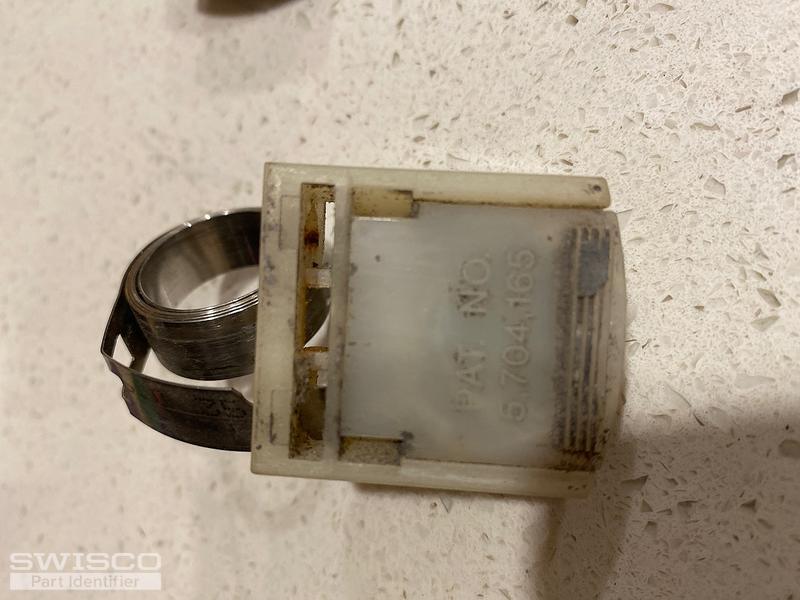

Hello I need to locate these pieces. See photos. 6 of each piece please. My window label says Daystar Windows D0218 Simonton Windows 0202251912. Thank you

5 user uploaded images

6 Replies

Tom from SWISCO

Apr 20, 2020 11:12 am

It looks like you need a new coil balance and shoe. I recommend our 3/8" thick Series 165 coil and 15-199 pivot shoe. Look these parts over and let me know what you think.

Tom from SWISCO

Apr 21, 2020 2:32 pm

You'll need the stamp printed on the old coil to confirm that. If you don't have a stamp, or if you can't find it, then tell me the exact weight of the sash. Please also tell me how many springs are on each side of the window. I can use a little math to figure it out.

Home Owner from Brooklyn, NY

Apr 21, 2020 2:35 pm

Thank you so much for your help. For the coil, what weight would I need? My window measures 46in by 46in. Would I need 3lb,4lb,5lb or 6lb?

Home Owner from Brooklyn, NY

Jul 13, 2020 11:21 am

My father is not sure but he says 6lbs. There is 1 on each side of the window.
We need for 3 windows.

Sorry for the delay in response but we do still need them.

Thank you

Tom from SWISCO

Jul 15, 2020 2:14 pm

Thanks! If the sash is 6 pounds, and you only have one spring on each side, then you'd want two 3 pound springs. That'd be our S165-3.
