PIVOT LOCK SHOE

A quick learner from ERIE PA says:
July 10, 2014
MY WINDOS ARE ALUMINUM SO WILL THE 15-070 WORK IF I CUT A SECTION TO POP IN THE NEW SHOE THE DIMENSION ARE THE SAME 1 1/4 5/8 2"
User submitted photos of a spiral window balance.
A quick learner from ERIE PA says:
July 11, 2014
just added one more picture

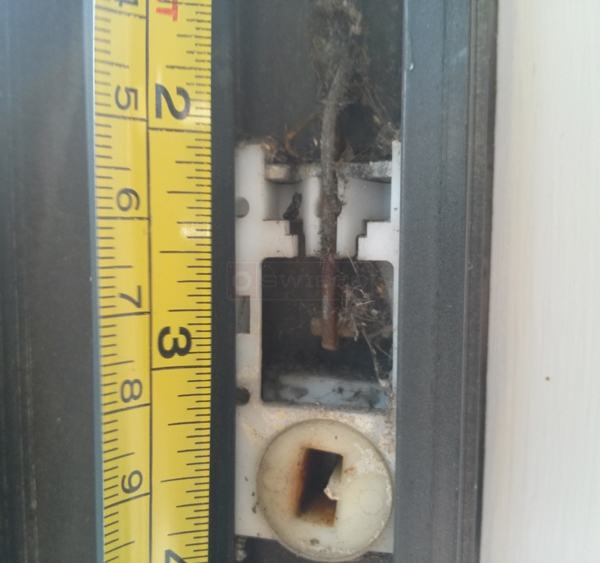

User submitted a photo of a pivot shoe.
Profile picture of Paul
Paul from SWISCO responded:
July 11, 2014
The shoe looks more like the 15-046, but that's 1/2" thick. Double check your dimensions just in case. If it's still 5/8", check out our 15-047 instead.
A quick learner from ERIE PA says:
July 19, 2014
IPEALED OUT THE PLASTIC PIECE BETWEEN THE UPPER AND LOWER SASH TO INTSTALL NEW 15-046 PIVOT SHOE ON MY ALUMINUM, CAN NOT GET PLASTIC PIECE BACK IN DO YOU HAVE ANY SUGGESTIONS?
Profile picture of Tom
Tom from SWISCO responded:
July 21, 2014
Check out our video below to see how to replace this hardware.
