Pace setter tilt in windows parts

Question

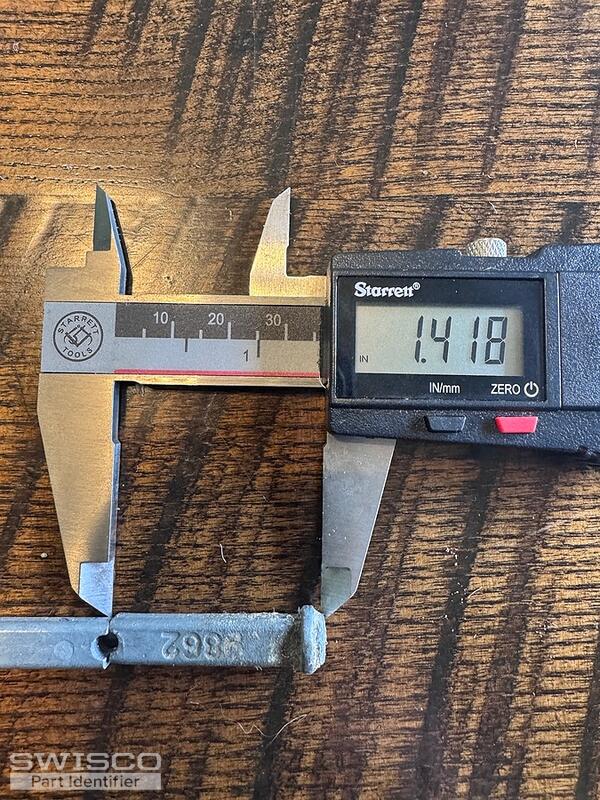

I would like to replace the slides, pivot pins and springs on my pace setter windows. Slides are 1.25 in wide, 1.4 in tall, .55 in thick. The only markings on the springs are CL on one and B on the other. The windows weight 20 lbs each. The pins have 9862 stamped on them and are a little over 3 inches long with a .4 in dia. head

Emily · Accepted Answer

Thank you for reaching out to us. Your pivot shoe is a match for the 15-177. Since the window is 20 pounds, you can use two S152-5 5-pound coil springs on each side of the window. For new coil supports, see the 15-144 bushing cap, 15-145 support barrel, and 15-143 bushing. We also sell the 26-226 pivot bar.

Please let us know if you have any questions.
