Part Identity

A home owner from Florida says:
I am looking to identify this part and get one ordered to replace for my window. The full metal length of the part is 35 inches. Thank you.

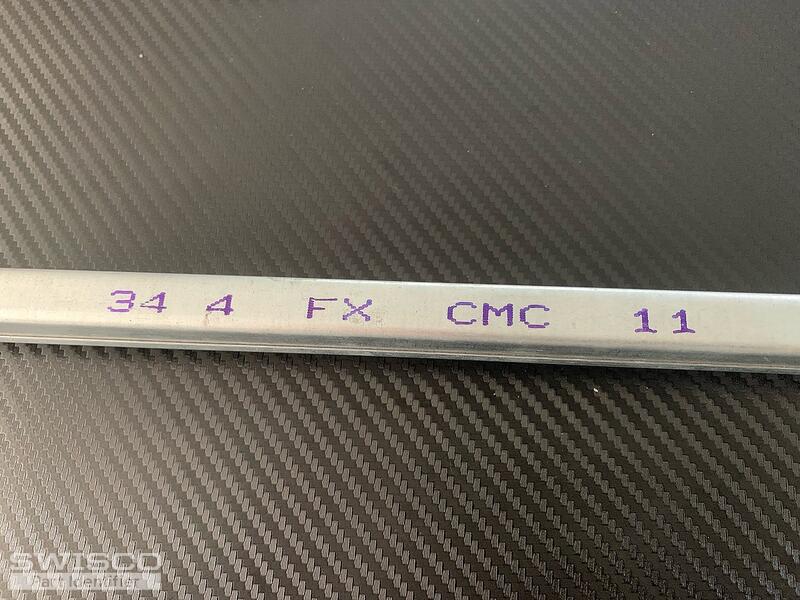

Thumbnail of the uploaded file named image1.jpg

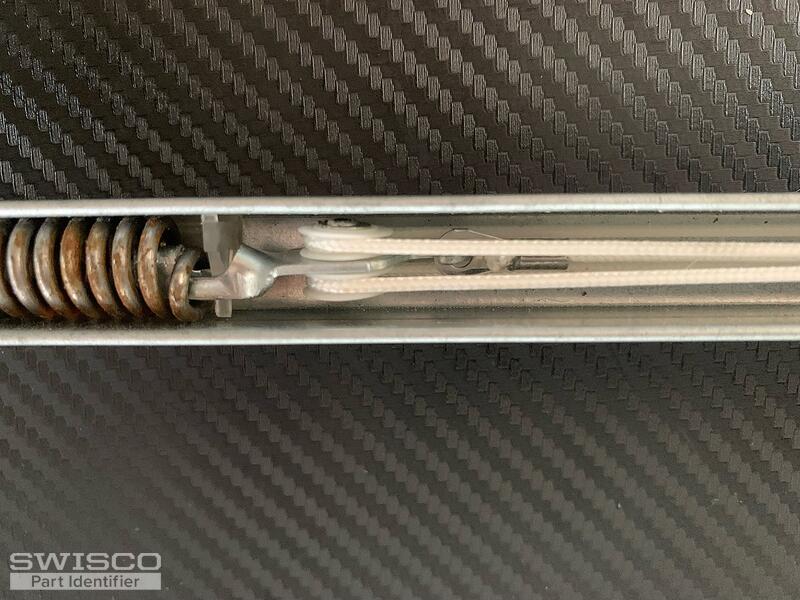

Thumbnail of the uploaded file named image2.jpg

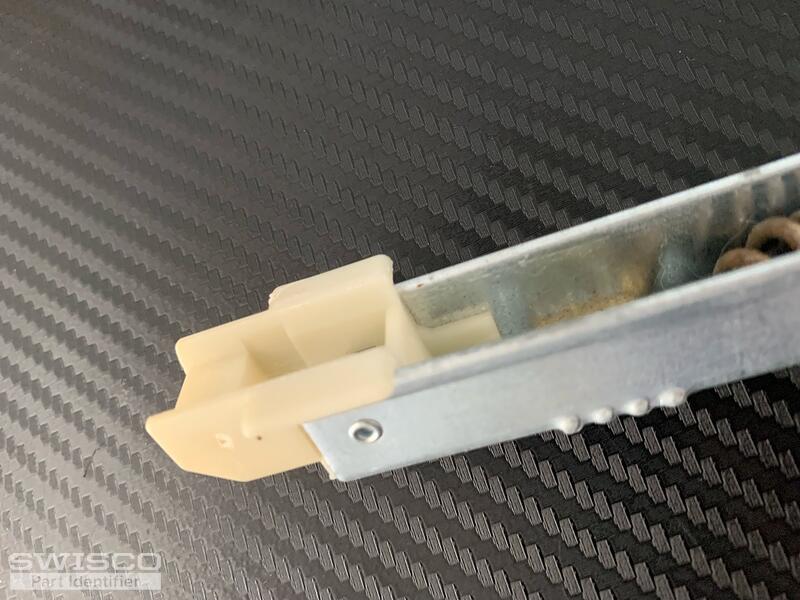

Thumbnail of the uploaded file named image3.jpg

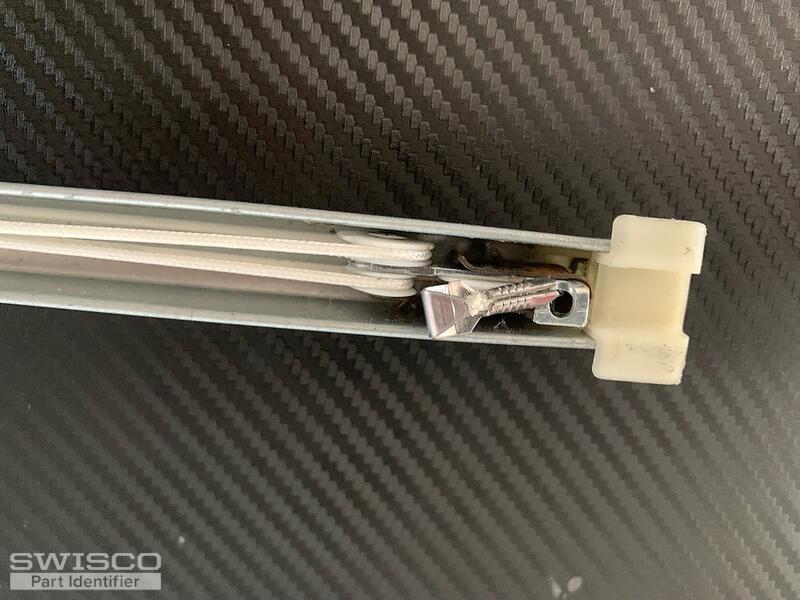

Thumbnail of the uploaded file named image4.jpg

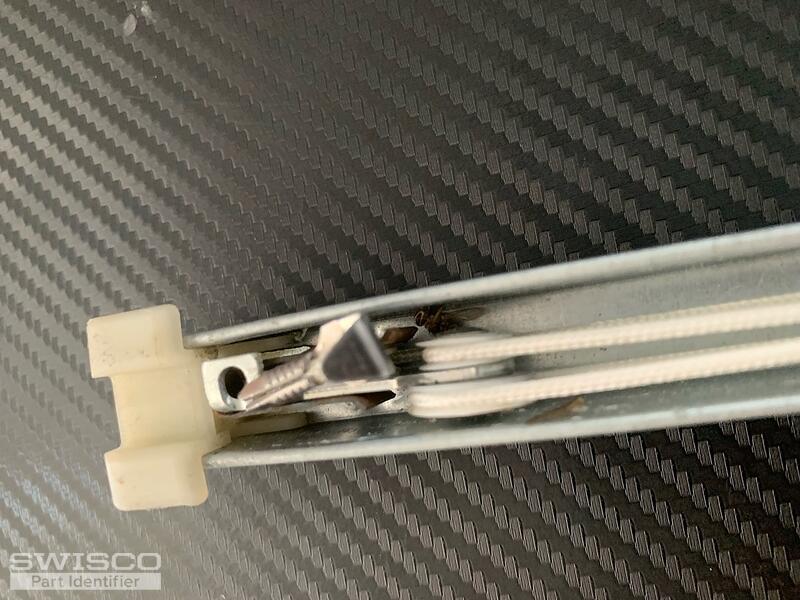

Thumbnail of the uploaded file named image5.jpg
Profile picture of Emily
Emily from SWISCO responded:

Hello!

With this combination of attachments, you could have either an S380-35 or S385-35 channel balance. You’ll need to measure as shown below. The Series 380 has a 1" bottom attachment, and the Series 385 has a 1-3/32" attachment. You'll also need a 3440 stamp option for these balances.

If you have any questions just let us know!

Comparison of the S380 and S385 balance shoes.
Comparison of the S380 and S385 balance shoes.
A home owner from Florida says:
It is just over 1" so it must be the S385-35 channel balance. I'm not sure I understand what a 3440 stamp option is. Could you please explain that? Thank you.
A home owner from Florida says:
Nevermind, I see the 3440 option for this part. Thank you.
Profile picture of Emily
Emily from SWISCO responded:

Certainly. A stamp option or "spring strength option" indicates the sash weight range your balance is calibrated to support. Yours is "3440" which means you'll need to select that option on the S385's store page. Let me know if this makes sense or if you had any other questions.
