Handy Person from Jacksonville FL

May 15, 2023 10:59 am

Need window valances for 1997 Kinco windows.

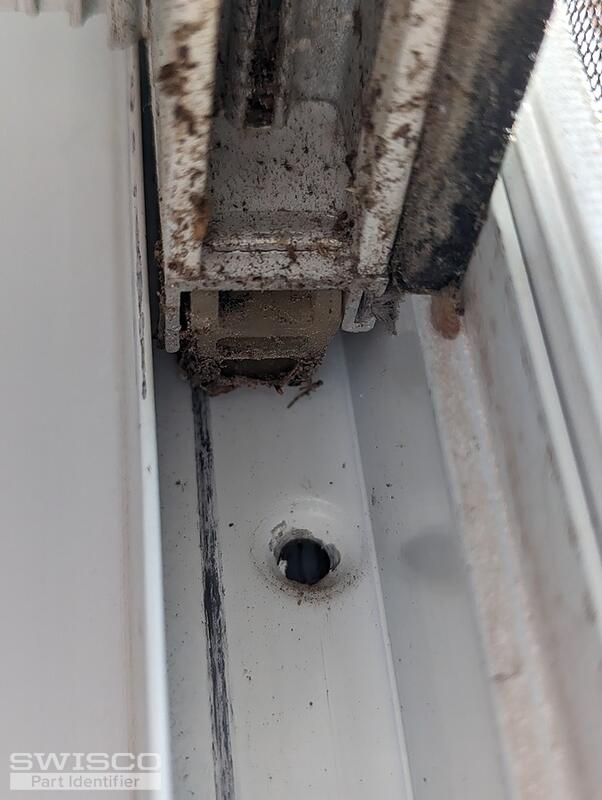

Stamped "29 4 IQ CALDWELL", see.pics

Thanks

John

5 user uploaded images

7 Replies

Casey from SWISCO

May 16, 2023 4:05 pm

Hello,

We'd be happy to help but we would need to see the top and bottom fittings of an undamaged balance removed from the window to compare to our inventory. See the video below to help you through the process. Thank you!

Handy Person from Jacksonville FL

May 19, 2023 4:17 pm

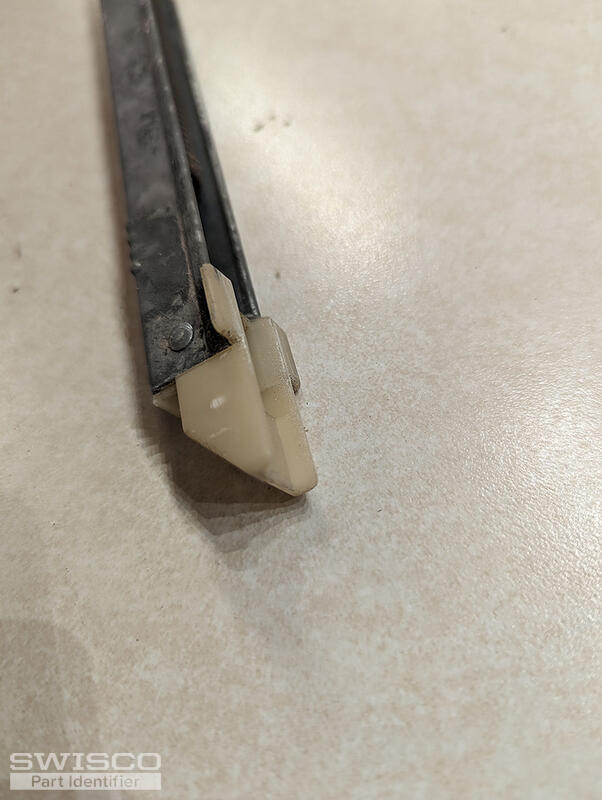

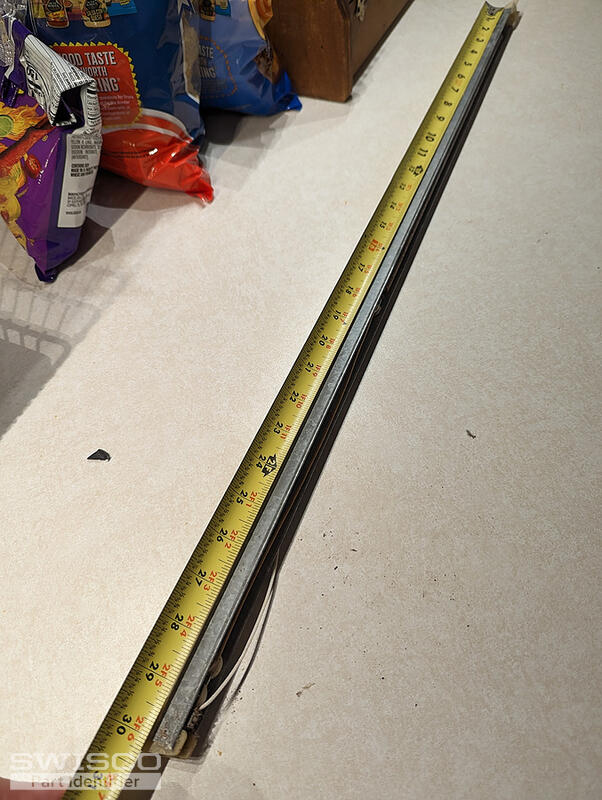

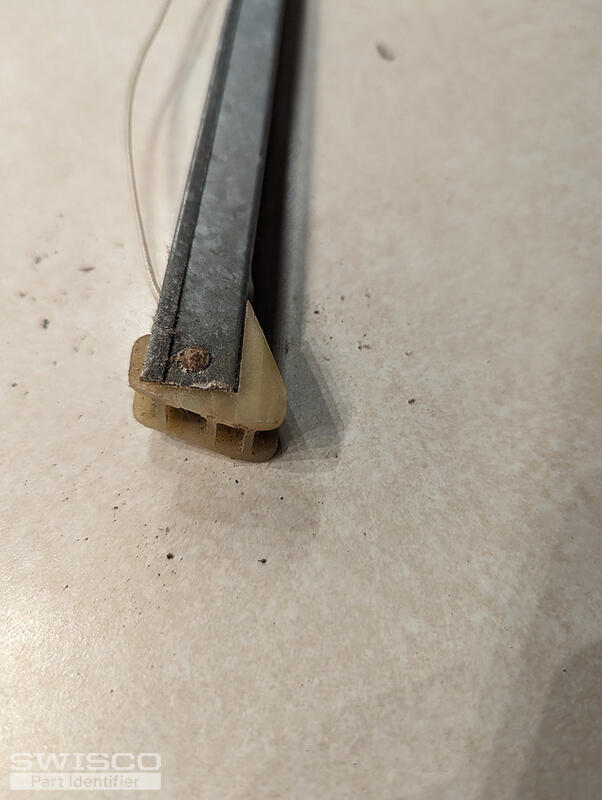

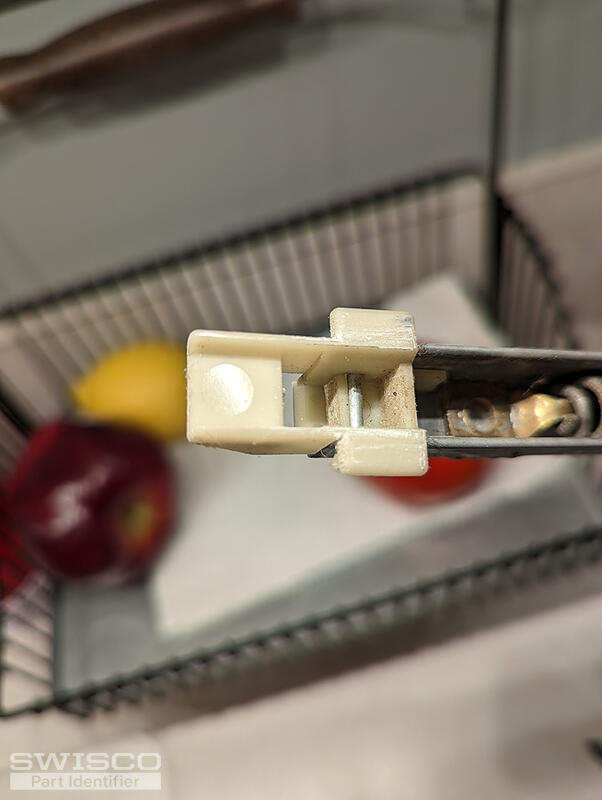

Here are several pics of unbroken balance.

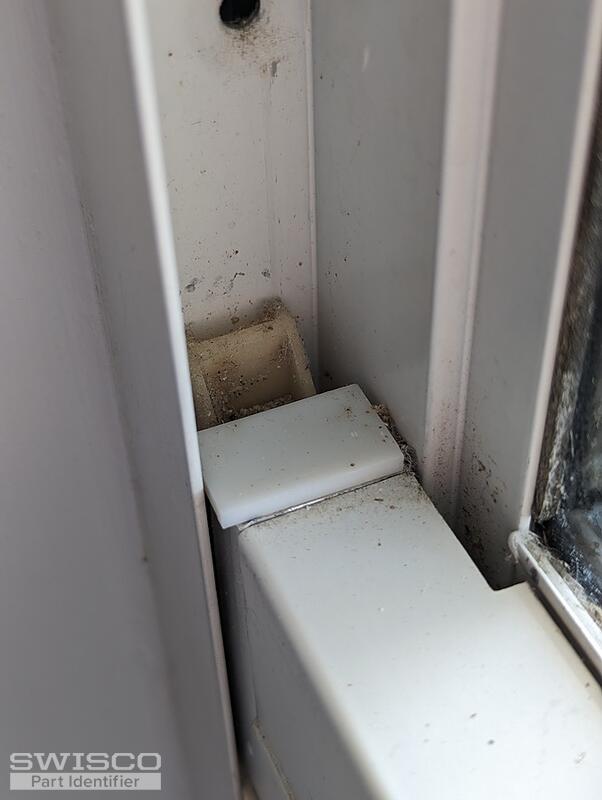

Also, do you have the small plastic stop on sash where the top of the balance would rest?

Thanks
John

5 user uploaded images

Handy Person from Jacksonville FL

May 19, 2023 5:48 pm

Upon further review, my balance is 9/16 wife, 5/8 deep.

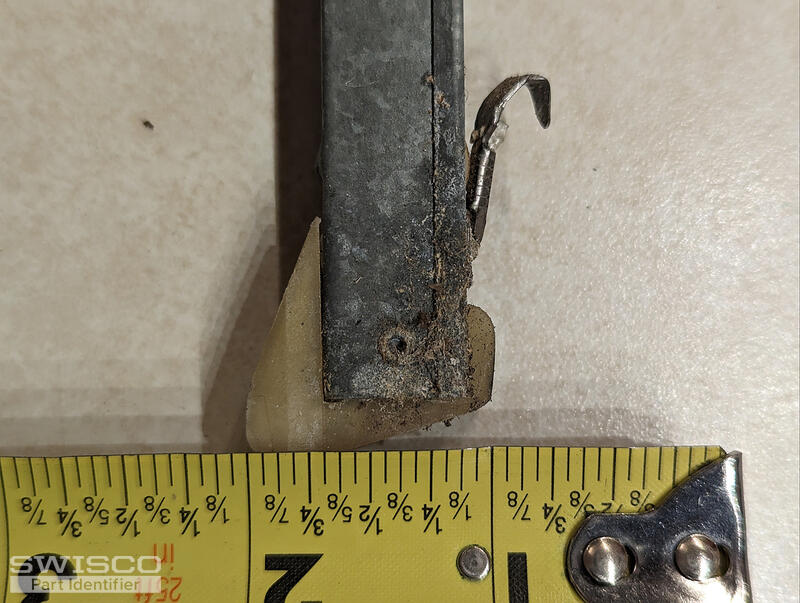

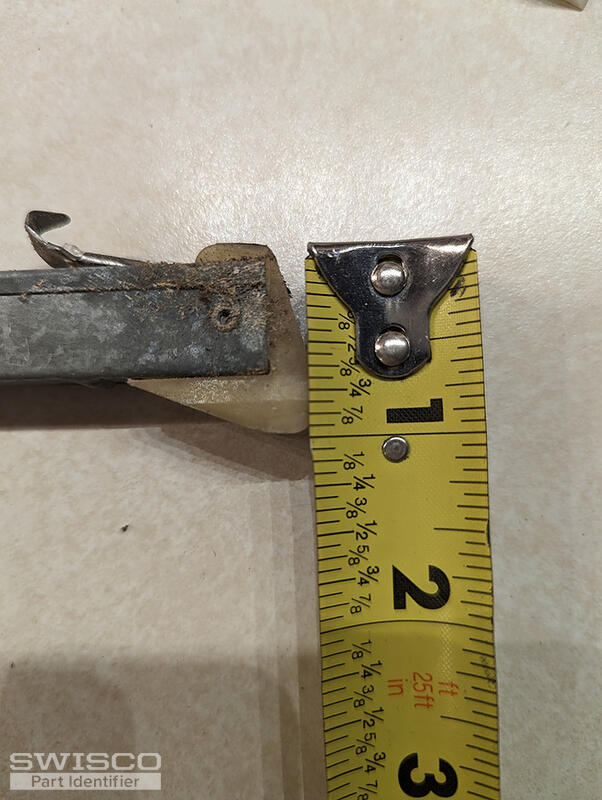

bottom shoe is 1" deep and looks like nonwing 15-002

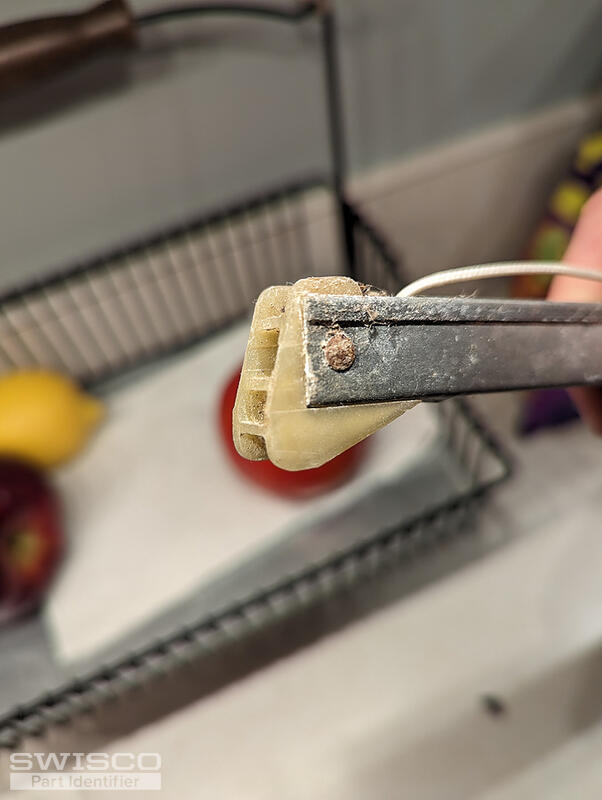

top shoe looks like winged 19-005 on the series 395

Casey from SWISCO

May 22, 2023 8:34 am

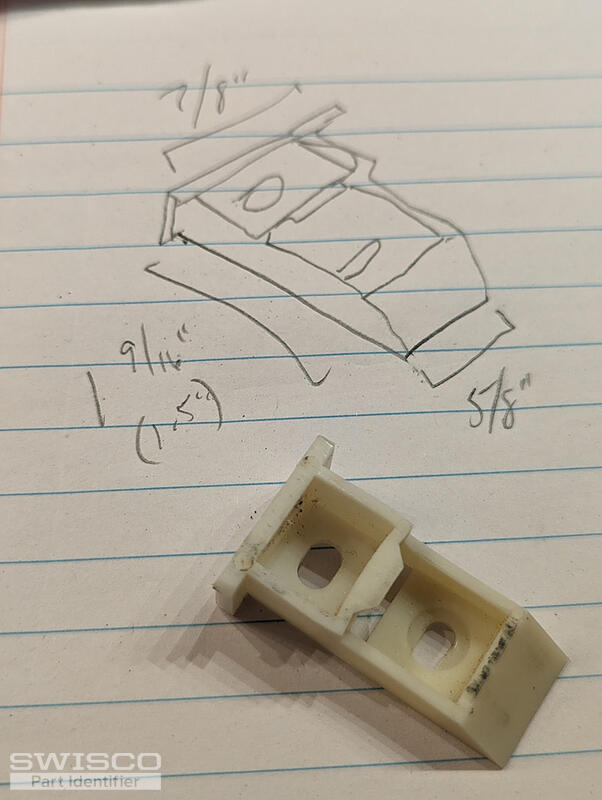

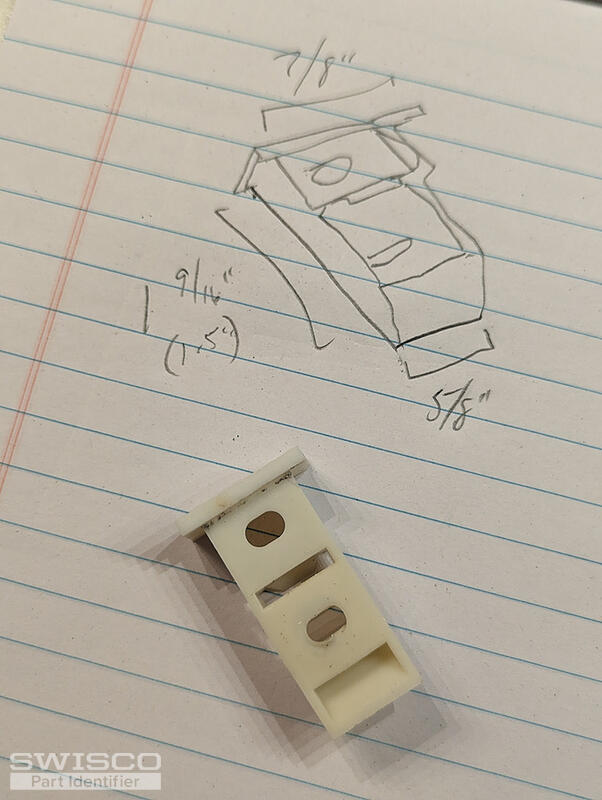

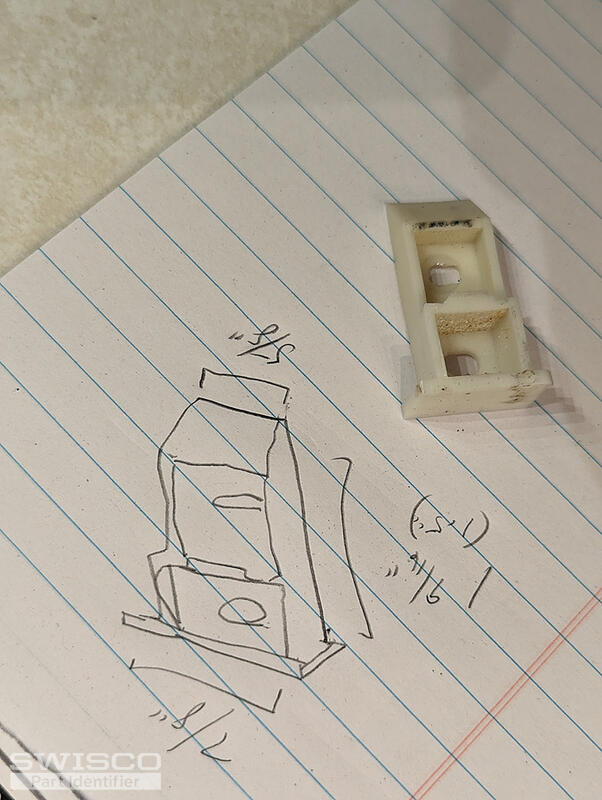

Thanks for getting back to us. I would generally recommend the S395 based on your photos. If you're sure that the bottom fitting measures exactly 1", we can still help but it will need to be a custom order. To get started, we'll need to confirm the number of balances that you need with the minimum being two. We may also be able to supply the top sash guides that hold the balance below the sash but we would need to see an undamaged guide removed from one of your windows to compare to our inventory.
