Part identification help for Li

Question

Dear Sir or Madam, please help me find the right replacement part for non-tilt window channel balance.

My measurements are below. Pictures attached. Thank you very much!

Metal Piece Length 28 inch
Metal Piece Width 1/2 inch
CHANNEL BALANCE SHOE, WINGED
Middle Width 1/2 inch
Length 1 3/32 inch
Wing Width 4/5 inch

CHANNEL BALANCE TOP, WINGED
Wing Width 4/5 inch
Thickness 7/10 inch
Foot Width 1/2 inch

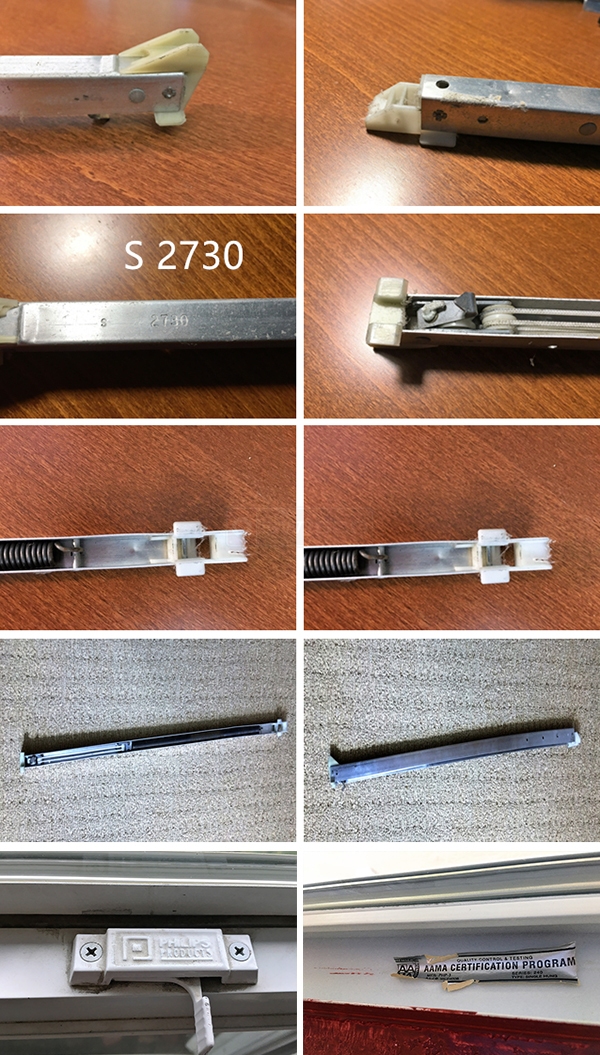

User submitted photos of window hardware.

Dave Sr. · Accepted Answer

Please take a look at our S385-28 series balance, I think this looks like it's a fairly close match. It comes with the 19-005 top and 15-004 bottom, so as long as those are the same you should be okay. I would also recommend the 2730 option, of course.
