Gorelli Window Coil Balance

A quick learner from Vermont says:
July 22, 2021

Please advise me of the name of this balance coil for our Gorelli window. Thank you in advance.

Ellen

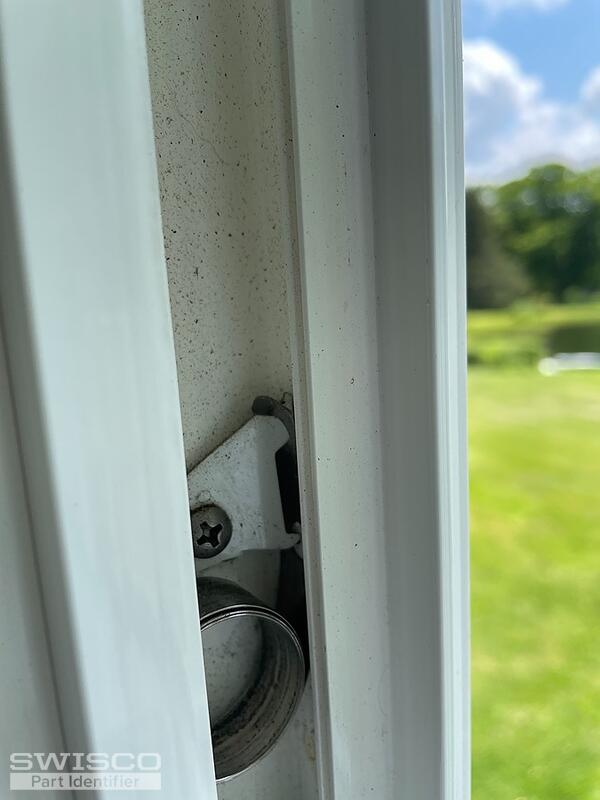

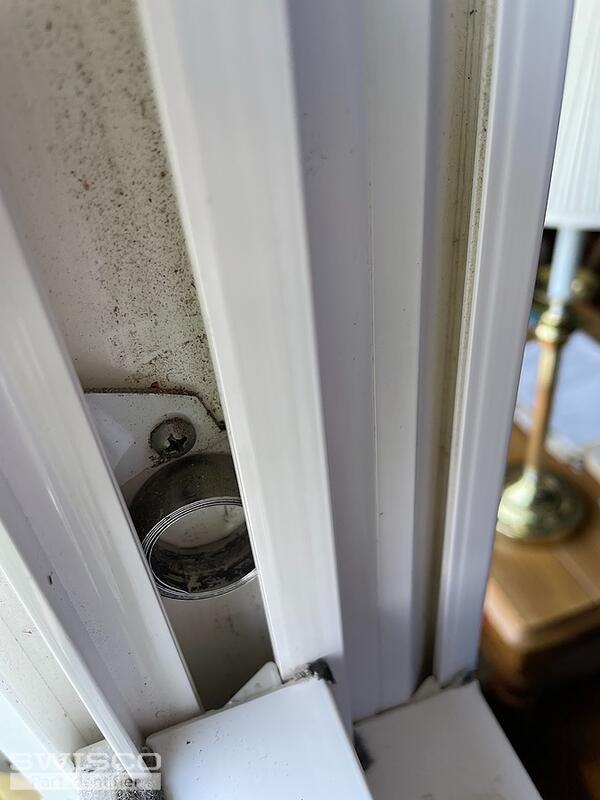

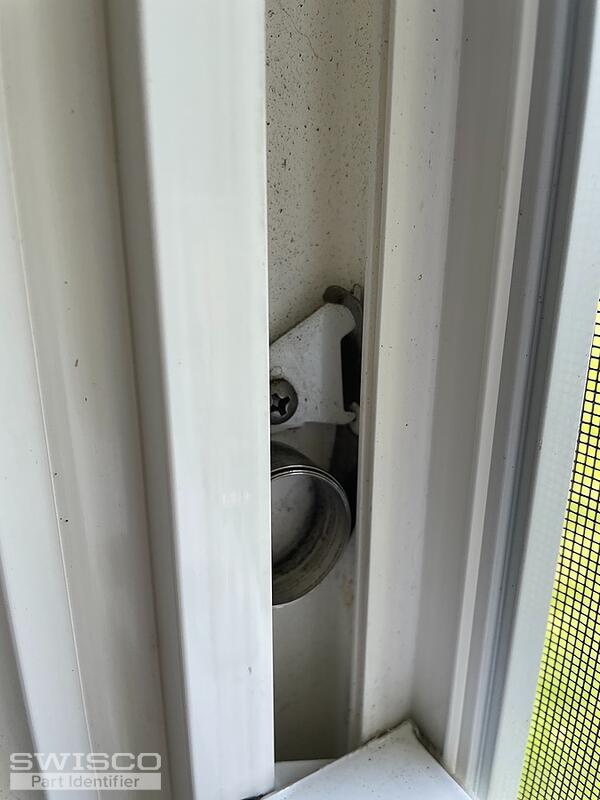

Thumbnail of the uploaded file named 6B3F9658-5AA4-45A9-BB2D-1AF9D9343BFE.jpeg
Thumbnail of the uploaded file named EF28BAAD-6AED-480C-A7BC-1612F99B5462.jpeg
Thumbnail of the uploaded file named 8B253EDA-BE45-496B-A2A0-07A51B4DAA4F.jpeg
Profile picture of Tom
Tom from SWISCO responded:
July 28, 2021

Thanks for posting, Ellen. that top bracket you show appears to match our 16-024, which means your coil spring is almost definitely going to be our Series 180. An easy way to check to make sure is to look at the pivot shoe where your coil spring is usually housed. It should match our 15-087. If it does, then you're good to go.

If it looks like anything else though, show me a photo of it and we can work from there.
Mounting Bracket
Mounting Bracket
16-024
$0.66
Coil Housing Pivot
Coil Housing Pivot
15-087
$5.97
How to remove window pivot shoes
How to remove window pivot shoes
VIDEO
WATCH >
Anatomy of a tilt window
Anatomy of a tilt window
VIDEO
WATCH >
