Part need

Question

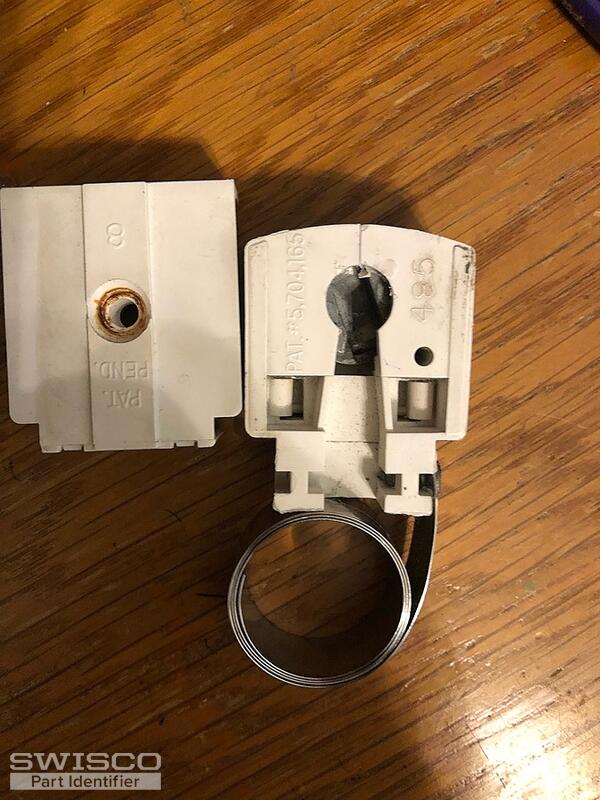

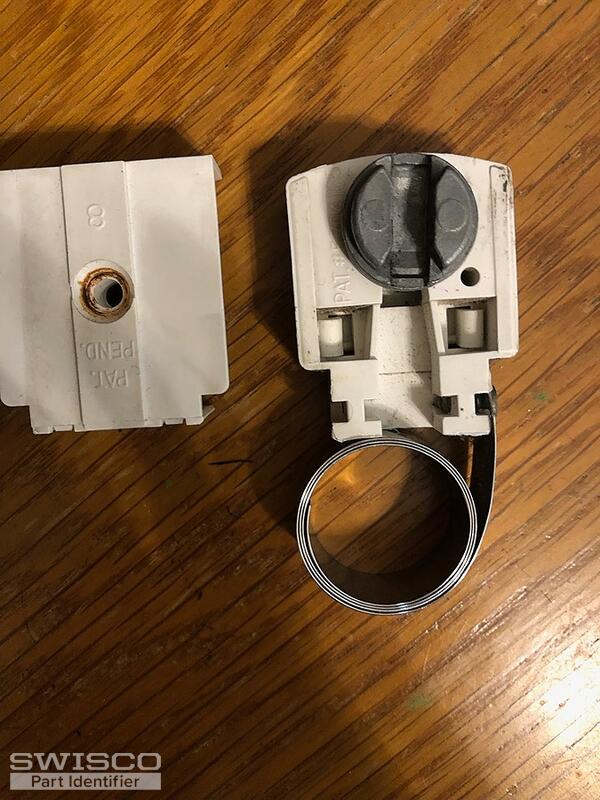

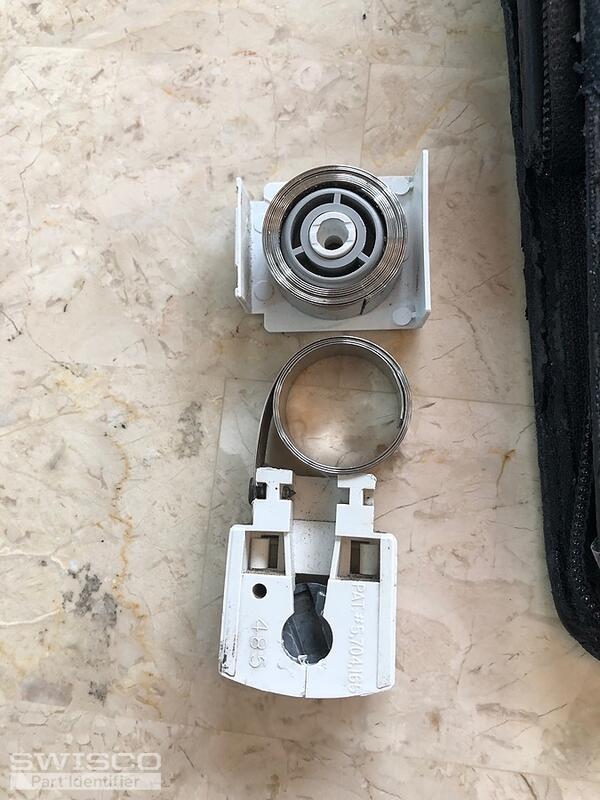

Need replacements for what is photographed. I'm attaching an additional photo to shoe the coil that snapped

The number on the circle band is 6.

Hope this helps to locate this part.

Thank you

Jasmine · Accepted Answer

Thanks for writing in! Your shoe is no longer made however, there is a chance that our 15-199 could work as a replacement for you. Look over the dimensions and compare them to your existing shoe to determine if this is the right replacement for you.

Alternate view of 15-199

In regard to the coil spring, you'll either need the 1/2" thick S160-6 or the 3/8" thick S165-6. To determine whether you'll need the Series 160 or the Series 165 coil spring, you'll need to confirm the thickness of your existing springs.

The cover compatible with the S160-6 is the 15-150S. The S165-6 does not have a compatible single cover.
