Part number to order?

Quick Learner from CA
Please tell me what part number I need to order.

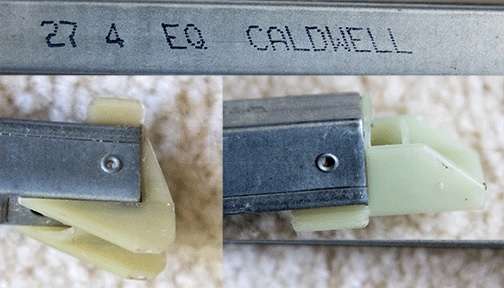

Markings: 27 4 EQ CALDWELL
End caps: in attached picture
Dimensions: 1/2" x 28"

Thanks very much
Treve
channel balance stamp
3 Replies
Tom
Tom from SWISCO
SWISCO
Expert
This will be a Series 385 or Series 380 channel balance, specifically S385-28 or S380-28. Measure the shoe to tell which one. The 1" shoe shown below belongs to S380-28, and the 1-3/32" shoe belongs to S385-28. You will want to consider the 2740 stamp option, which matches your old stamp and holds sashes between 19 and 26 pounds. You can verify the stamp by removing and weighing the sash.
Comparison of 15-004 and 15-005
Comparison of 15-004 and 15-005
Quick Learner from California
Thanks very much.
Parts ordered!

Treve
