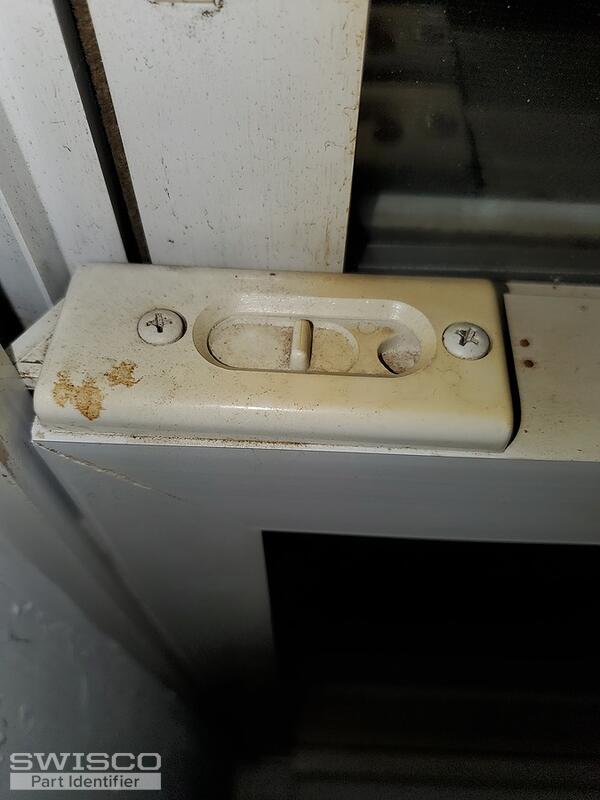

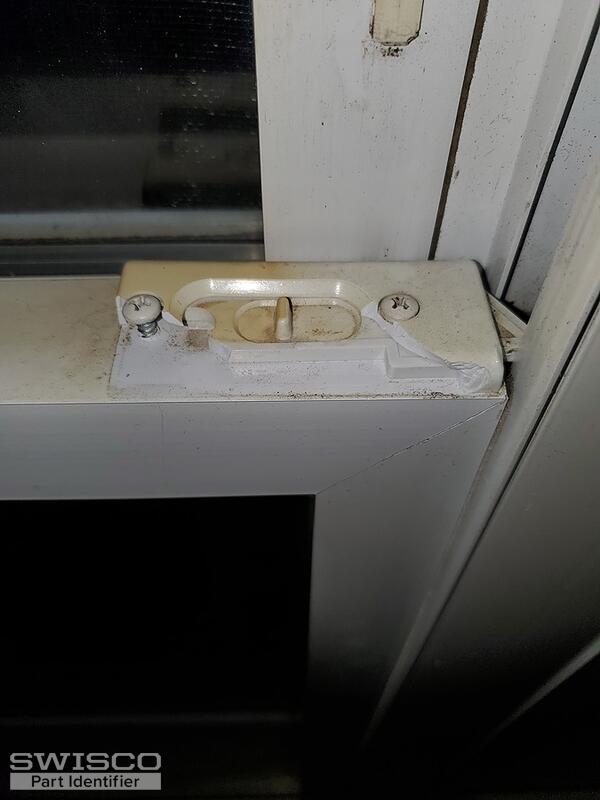

Looks like you need a new tilt latch and coil balance assembly. For the tilt latch, can you tell me the distance between the installation holes, center-to-center?

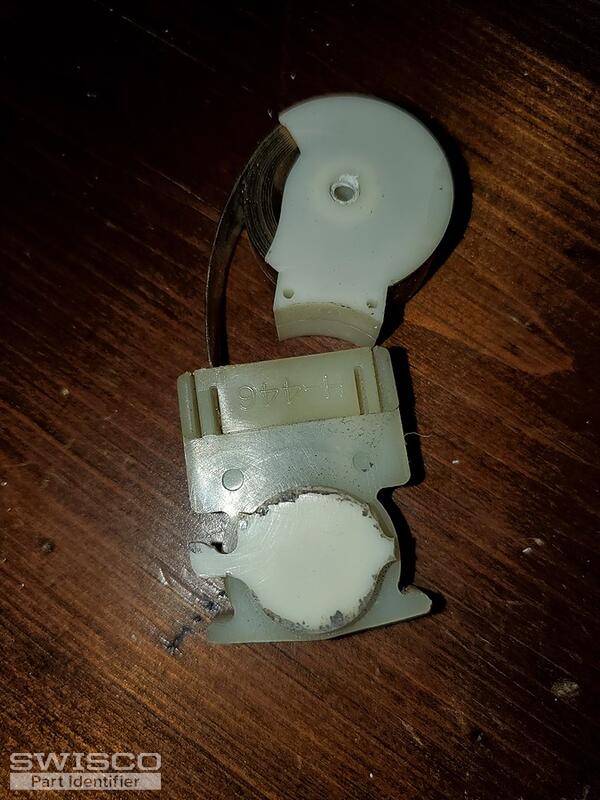

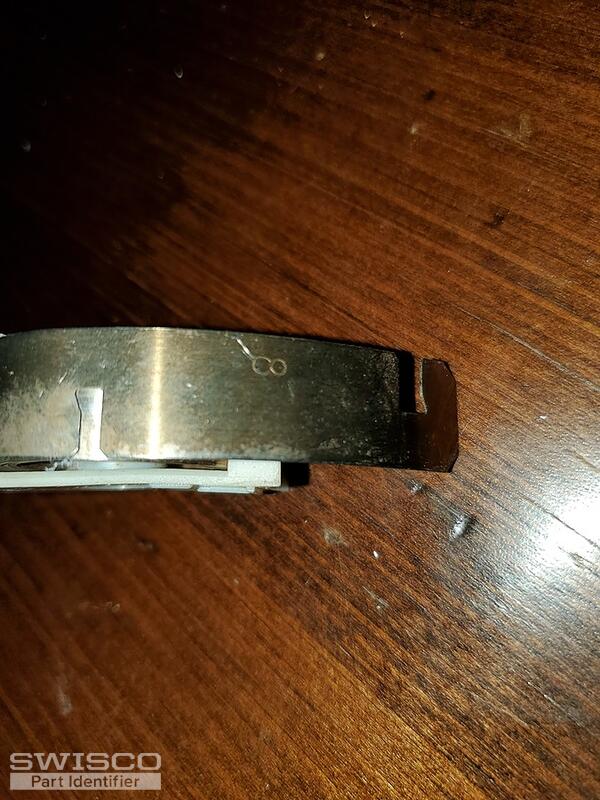

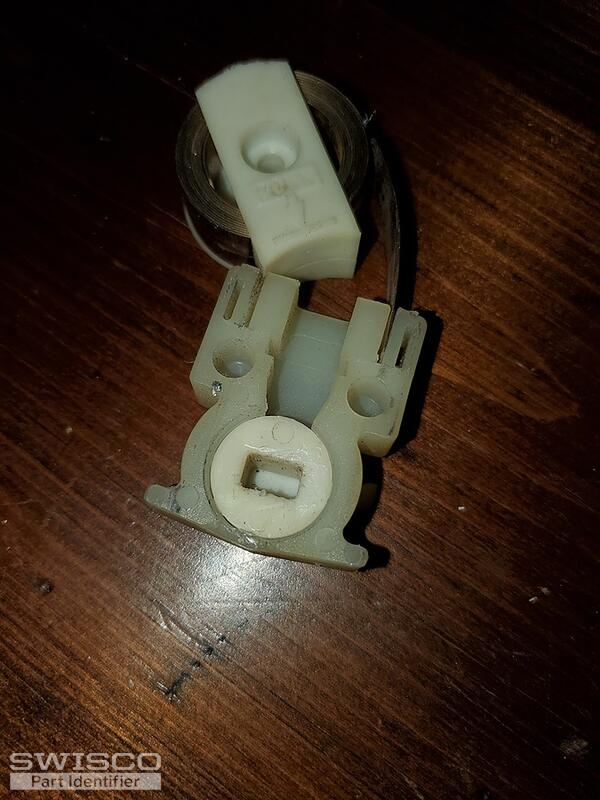

For the coil balance assembly, our 15-141 shoe appears to match your original. This is designed to work with the Series 150 spring. Just note that this shoe is discontinued and we will only sell it while supplies last.

I apologize for not mentioning the bushing before, I must have been too focused on the other parts. Your bushing assembly appears to be made up of our 15-145 barrel, 15-143 bushing, and 15-144 cap.

As for whether or not you can reuse your old coil, that's not something I can answer. If yours is still functional then I see no reason why you can't reuse it, but only you can know that for sure.

The 15-141 is actually compatible with quite a few different pivot bar styles. One common choice is our 26-040, but ultimately you will need to compare this with the part already on your window to confirm the best match.
