Parts

Question

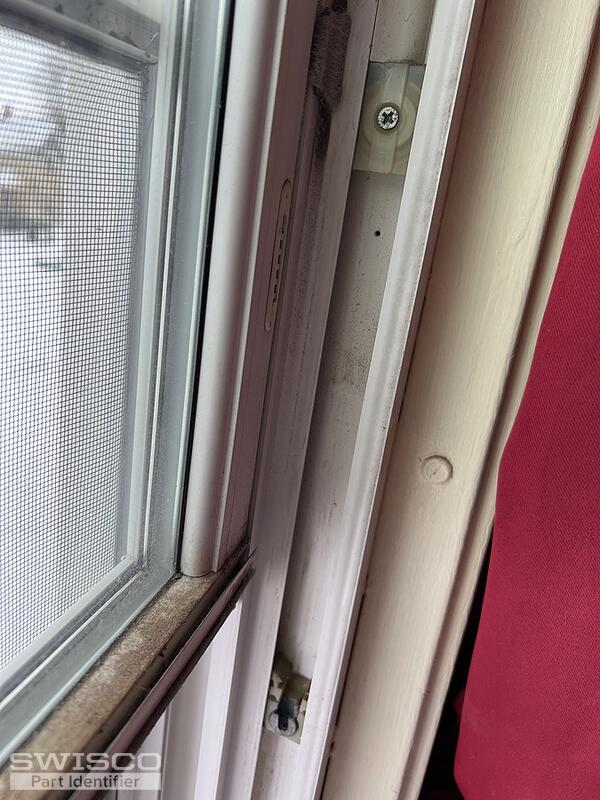

I need a few parts but can't find any part numbers. I need the tilt latch and the spring that holds the window up.

Jasmine · Accepted Answer

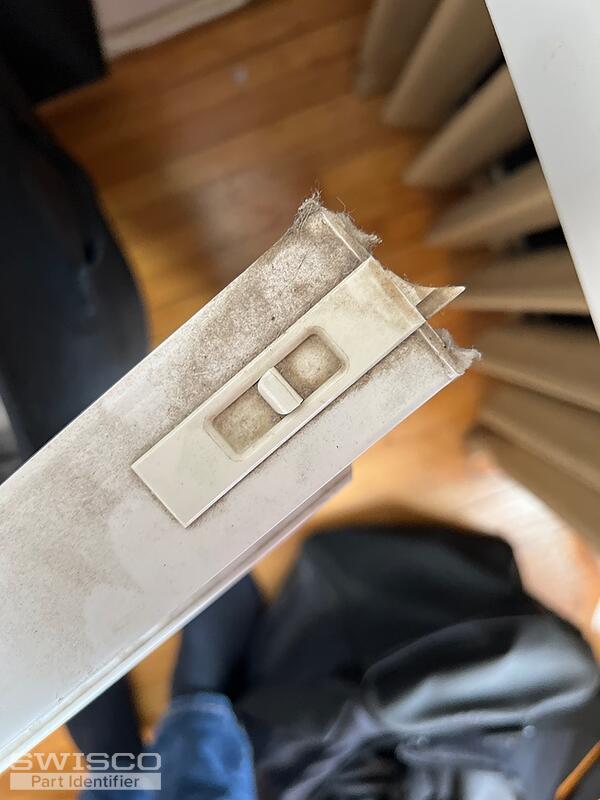

Thanks for posting. Your tilt latch reminds me of our 26-243 and its opposite 26-244. Carefully review and compare the measurements to determine if this would work as a replacement for you. You'll need to remove the latches to make the most accurate comparison.

Alternate view of 26-243

Profile view of 26-243

Your shoe is an older shoe that we did sell at a time but has been discontinued. However, our 15-177 works perfectly well as a replacement. To confirm that this is the correct replacement, you will need to remove the shoe from the window to confirm the measurements shown below.

Alternate image for 15-177

These are compatible with the S152 coil balance springs. To confirm which springs you have, you'll need to check the metal coils for any stamps/markings.
