Parts ID

Quick Learner from Chicago
Jul 15, 2017 11:11 am
I need help with ID on a part. I have double hung windows with a spiral balance and a 17/32 tilt shoe. I can not for the life of me think of the name for the metal bar on the bottom of the window frame that sits the window into the shoe.

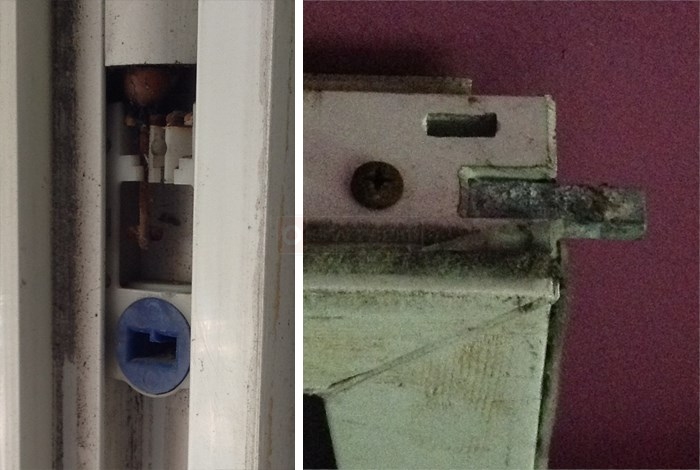

Pivot bar and shoe
1 Replies
+ Add a Comment
Tom
Tom from SWISCO
Jul 19, 2017 11:53 am
SWISCO
EXPERT
It's hard to tell what you have with more detailed dimensions. I also can't get a look at the pivot bar style while it's still installed. Start with our 15-118 pivot shoe and 26-040 pivot bar, and carefully compare our measurements to yours to confirm if these can work.
+ Add a Comment
Products and resources found in this discussion
Pivot Shoe, 9/16" Thick
Pivot Shoe, 9/16" Thick
15-118
$2.20
Pivot Bar, 3"
Pivot Bar, 3"
26-040
$1.57
