Parts are the white plastic clutch or I beleive your part 15-104. See the attached photos

Home Owner from Blue Springs Mo,64014
I removed the two sashes from one of my windows to determine what parts I would need to repair. Window will not stay open. I removed the white plastic part from the spring. How does this part attach to the window?

Thanks
Dennis

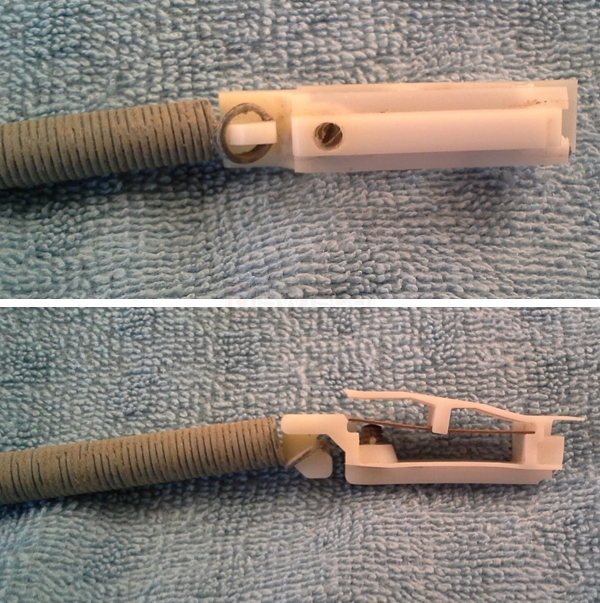

User submitted photos of window hardware.
4 Replies
Tom
Tom from SWISCO
SWISCO
Expert
Thank you for posting! I agree, our 15-104 looks like a good match for your shoe, assuming all the dimensions match up. Unfortunately, we do not carry these spring balances. You see, they are built into the jamb. I recommend contacting a local mill works that still makes wood windows and see if they can make replacement jambs for you.
Quick Learner from Blue Springs Mo,64014
I do not need the spring. Just curious how the part attaches to the window
Paul
Paul from SWISCO
SWISCO
Expert
You would remove the vinyl jamb liner and then slide out the spring with the broken nylon shoe. After that, you'd just install the spring with a new shoe attached in the jamb liner by reversing the process.
