Parts for double hung window

A quick learner from Park city, utah says:
March 16, 2022

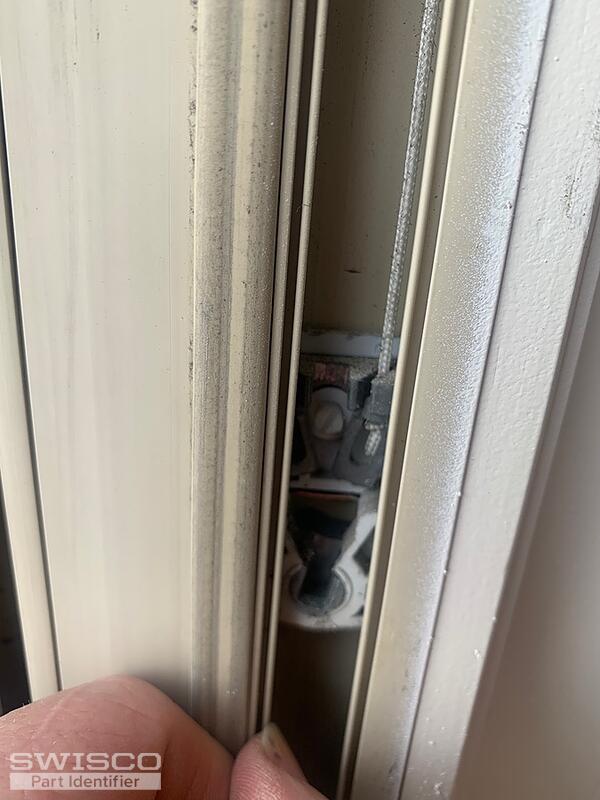

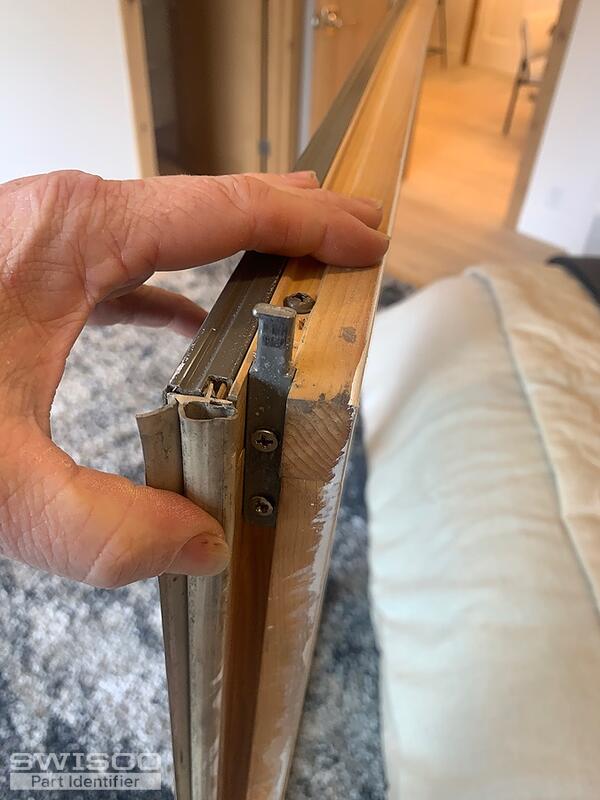

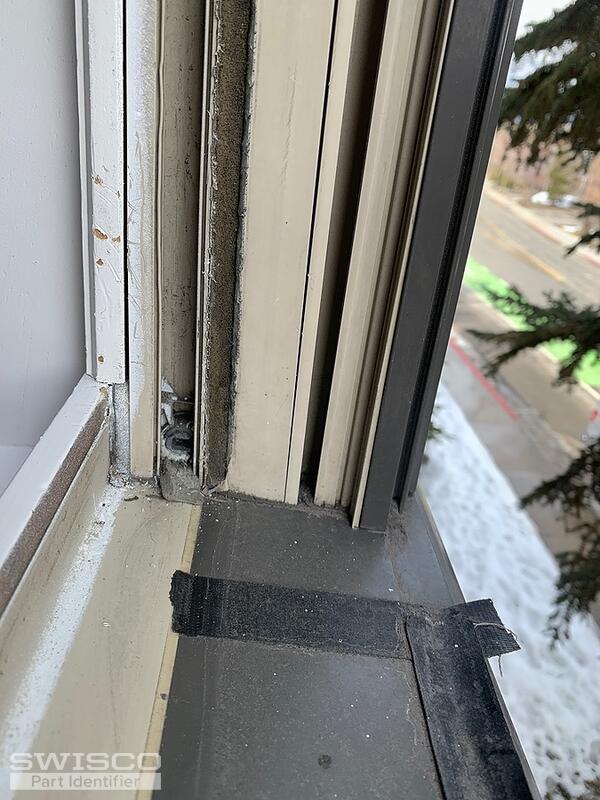

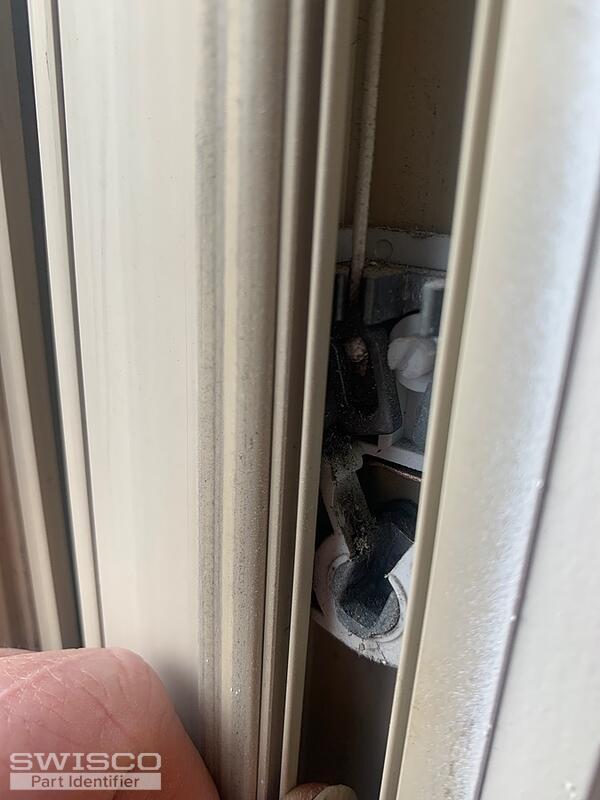

The etching on the glass shows EAGLE, low-e4 272, igcc/igma, Nfrwc ewd-n-076, cig3.1 2-08. The shoe and pin are broken on both sides. I have included pics from a window of the same size that are not broken to show you the parts that are needed for reference.
Thumbnail of the uploaded file named 281A3F0C-CC8F-44D8-8D03-2900805720A1.jpeg
Thumbnail of the uploaded file named EC777EFB-67C6-42D1-9499-BD85B0D0F612.jpeg
Thumbnail of the uploaded file named 3458E8F1-72EC-43EA-A9F7-3E6E49B198AC.jpeg
Thumbnail of the uploaded file named 460DE56B-F352-40DF-A4B3-803861DADCE4.jpeg
Profile picture of Tom
Tom from SWISCO responded:
March 17, 2022

Hello there! Your pivot bar appears to match our 15-021 and your pivot shoe looks like our 15-129. In terms of design these are almost identical. The only thing in question now is size; you will need to carefully review the dimensions we show for each product and measure your original to confirm that they all line up.
Pivot Shoe, 9/16" Thick
Pivot Shoe, 9/16" Thick
15-129
$2.50
Pivot Bar, 2-1/2"
Pivot Bar, 2-1/2"
26-021
$1.97
