Parts for my broken balances

Question

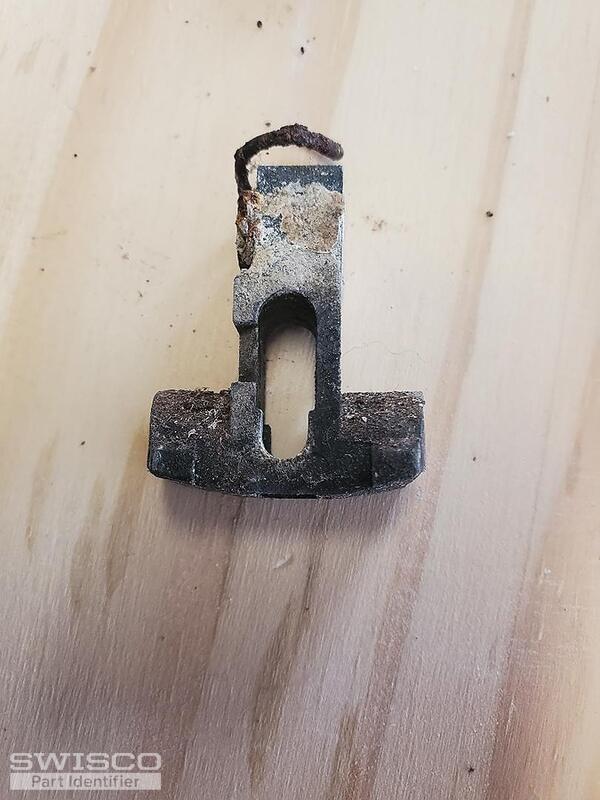

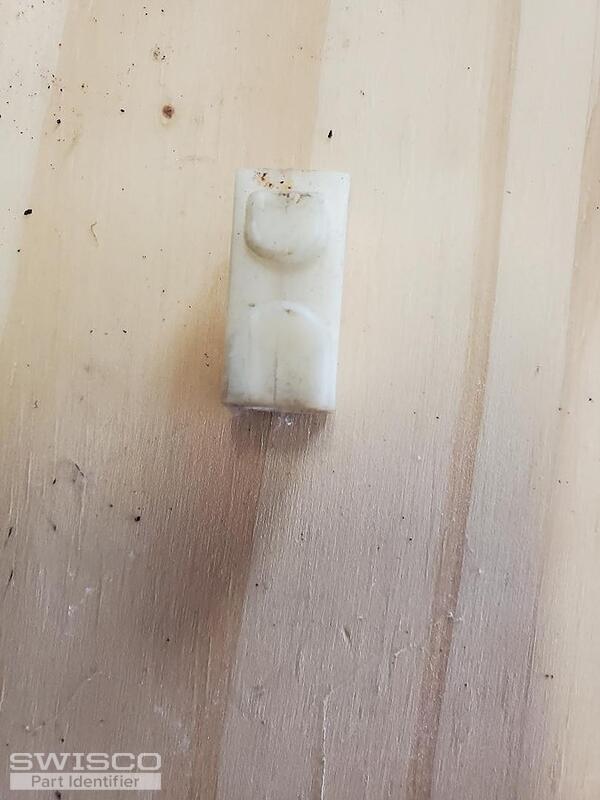

Sorry but there are no markings of any kind on the balances or wiindows.The windows are vinyl single hung from the early 2000's.

Jasmine · Accepted Answer

Thanks for reaching out! Your balances appear to be a discontinued crossbow style balance. These have been converted to use our Series 795 Channel Balances.

To confirm that these balances will be a situatable replacement, you'll need to obtain a few measurements from your existing balances. These include the length of an undamaged balance, the diameter of the balance channel/tube. This measurement should be 1/2"; please let me know if it is 3/8".

You will also need to obtain the width of the bottom T-shaped attachment (it will either be 1" or 1-1/4" across the bottom of the T shape) as well as the exact weight of the window to select the correct stamp option.

Take a look at the video below for instructions on this balance conversion and the information you'll need to determine the correct balances. Feel free to reach out with any questions.
