Parts from Paramount Window 1997

A home owner from Aspers, PA says:
July 18, 2022

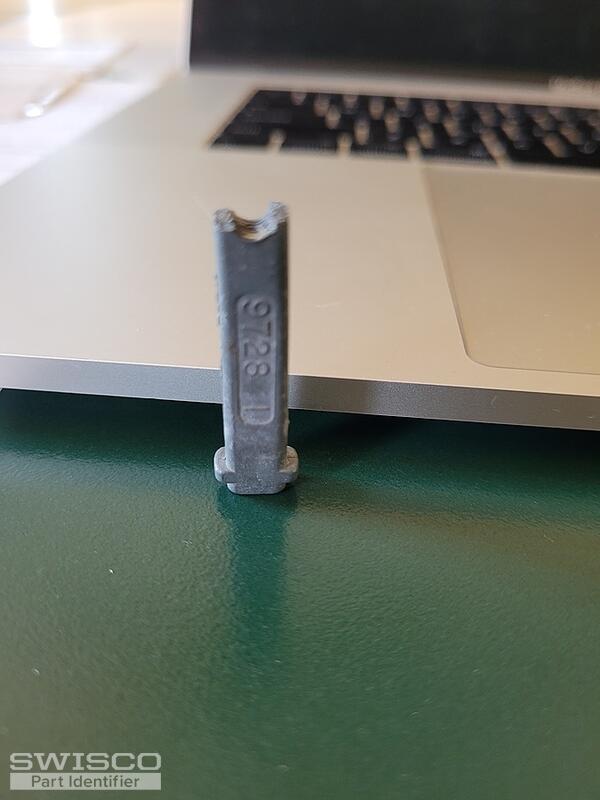

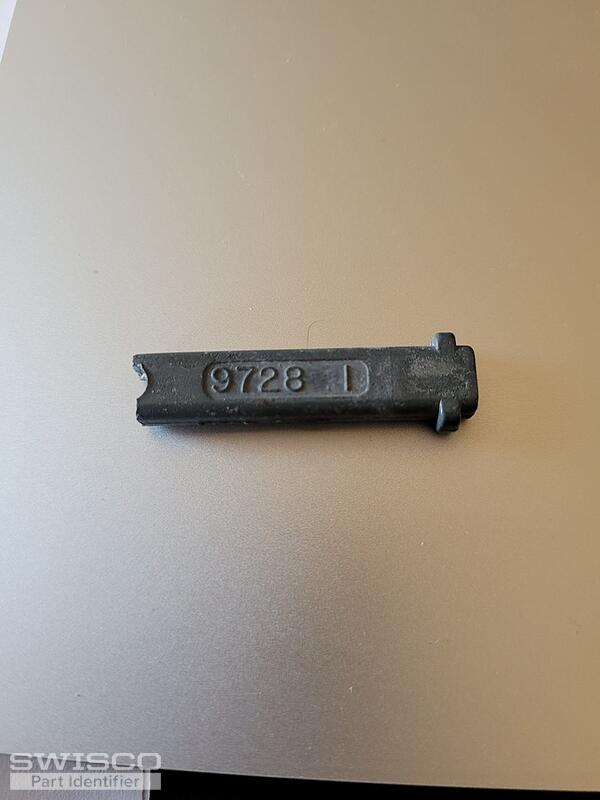

Single Hund window.....Bar has a 9728 mark on it. Need correct shoe also! Thanks for your help.
Thumbnail of the uploaded file named 20220718_174825.jpg
Thumbnail of the uploaded file named 20220718_174843.jpg
Thumbnail of the uploaded file named 20220718_175309.jpg
Thumbnail of the uploaded file named 20220718_175338.jpg
Profile picture of Tom
Tom from SWISCO responded:
July 25, 2022

Hello! I have seen this pivot bar before. This is an older style that, to my knowledge, isn't made anymore. However I've known some customers in the past who got our 26-226 to work as an alternative. Look this part over and see what you think.

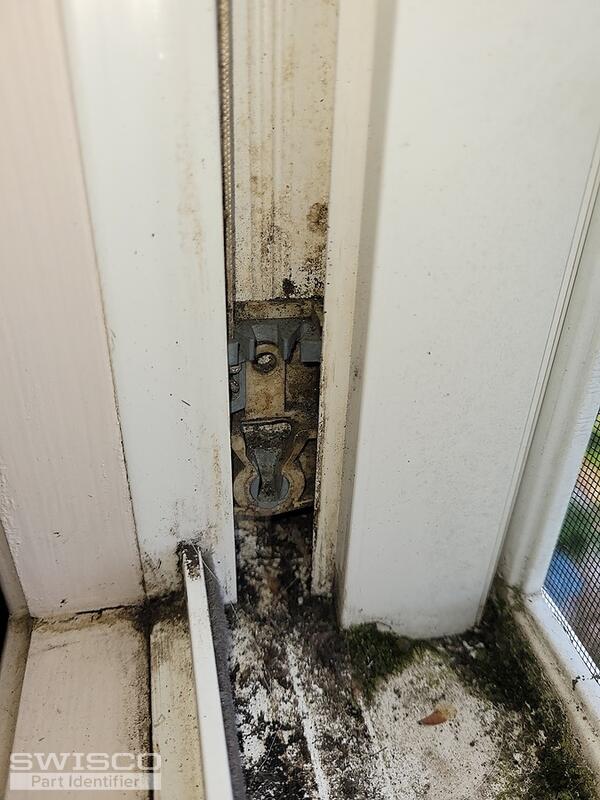

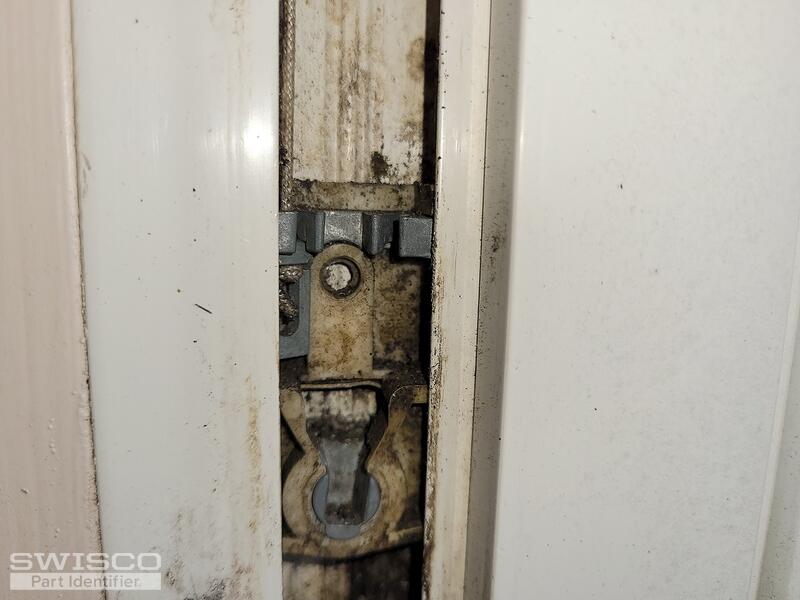

As for the shoe, this looks like a dead ringer for our 15-129. I just recommend confirming that our dimensions align with your own.

the 15-129 shoe and 26-226 bar are perfectly compatible.
A home owner from Aspers, PA says:
July 26, 2022
Thank you Tom! Gonna give it a try and see what happens!
Pivot Shoe, 9/16" Thick
Pivot Shoe, 9/16" Thick
15-129
$2.50
Pivot Bar, 3-1/16"
Pivot Bar, 3-1/16"
26-226
$2.55
