Parts needed

Question

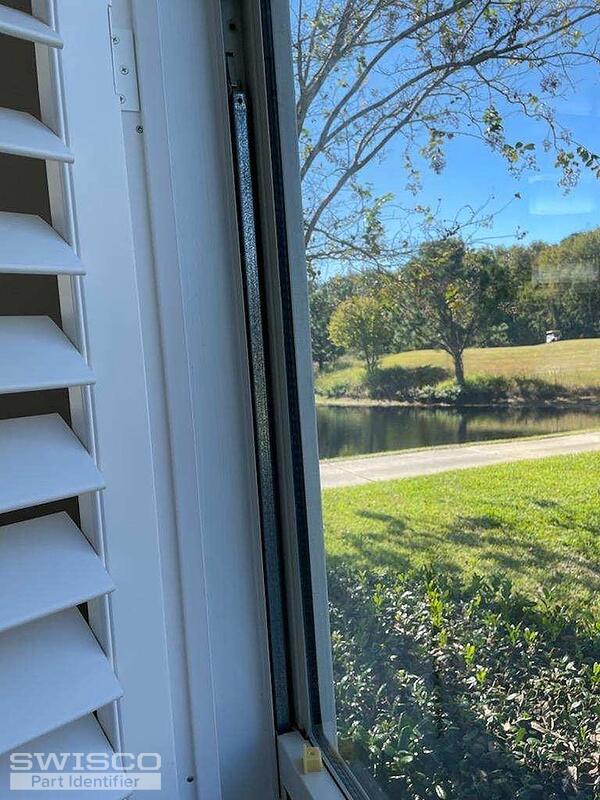

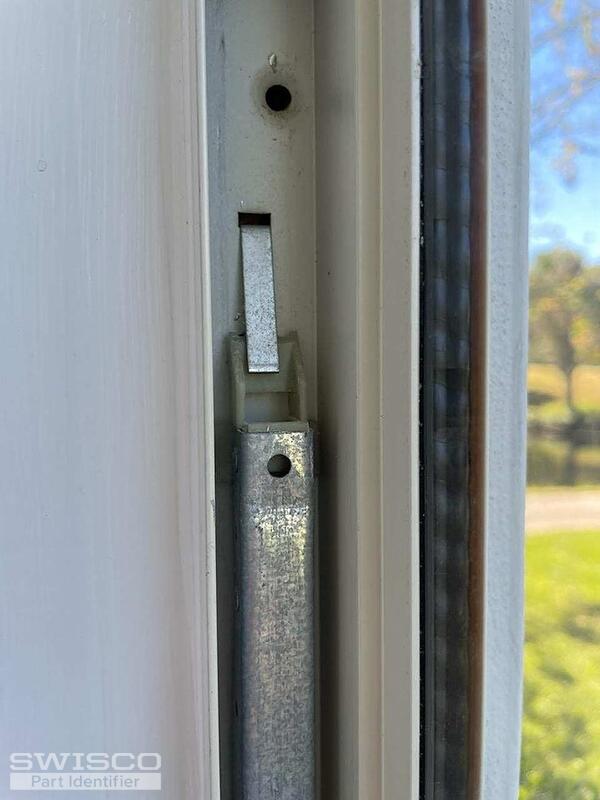

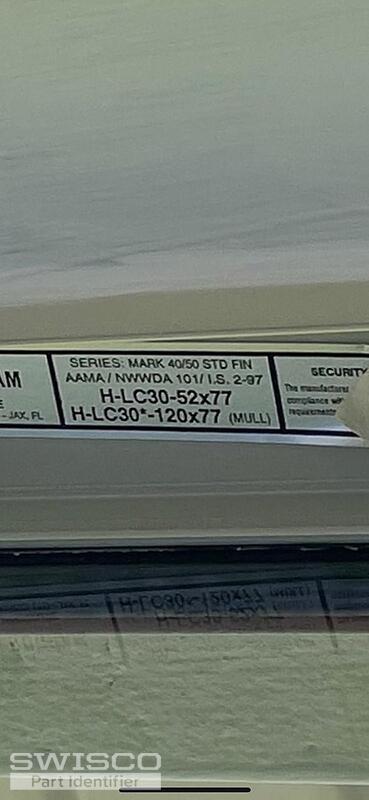

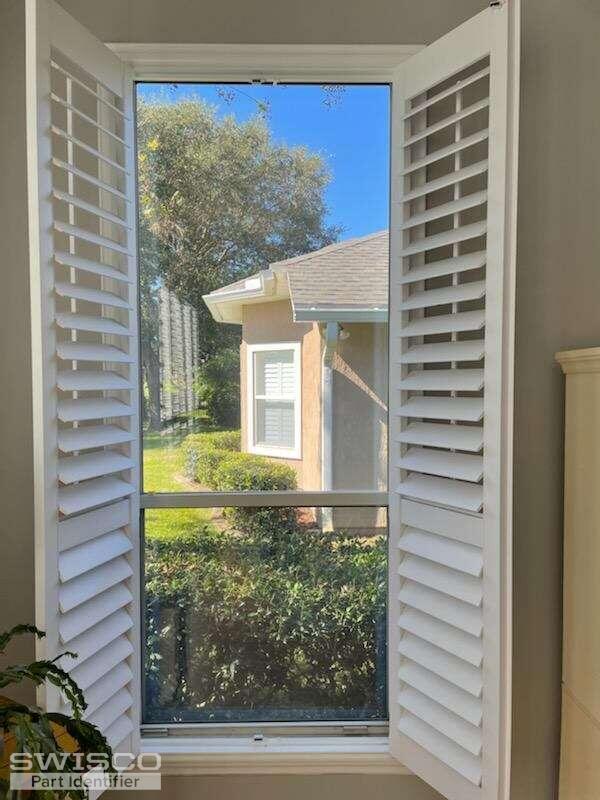

I have 2 windows I need replacement parts for in my home.  I have attached a picture of the label and window in the dining room that I need the sash guide on each side, the plastic pieces and the metal clips.  Could you provide these parts?

Casey · Accepted Answer

Hello,

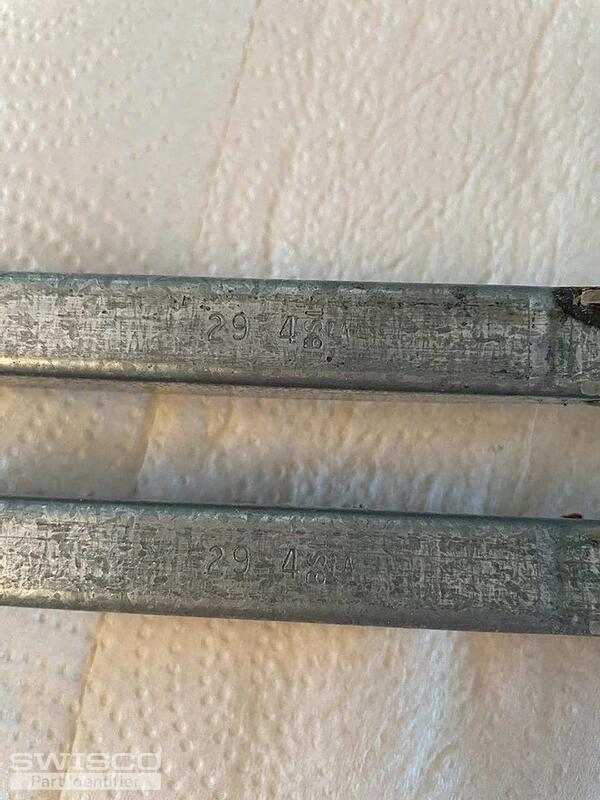

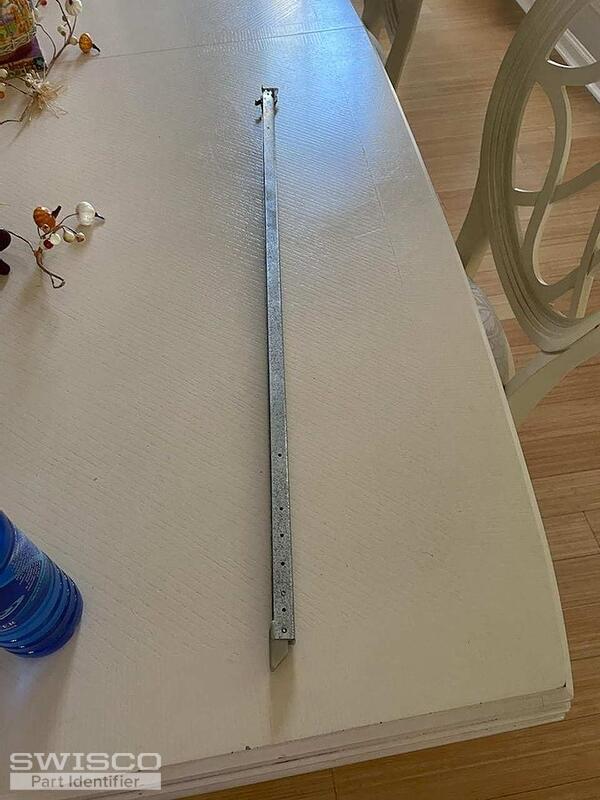

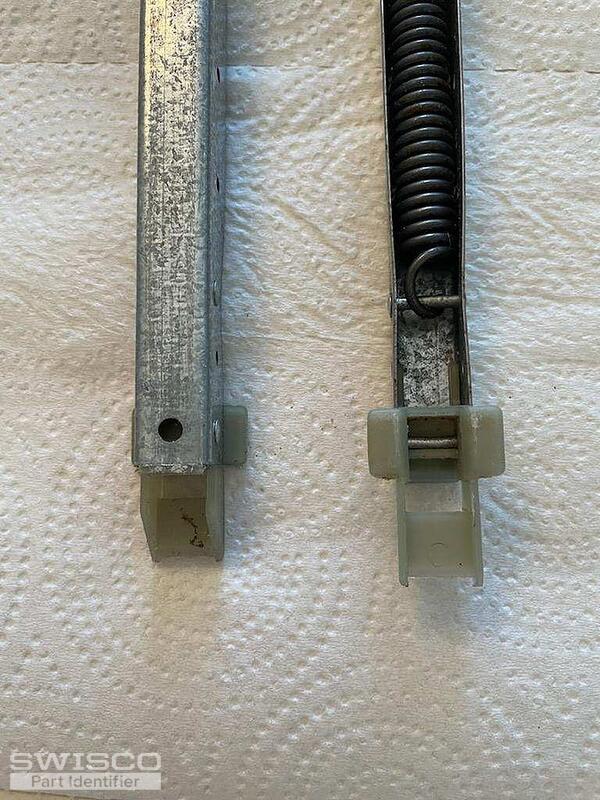

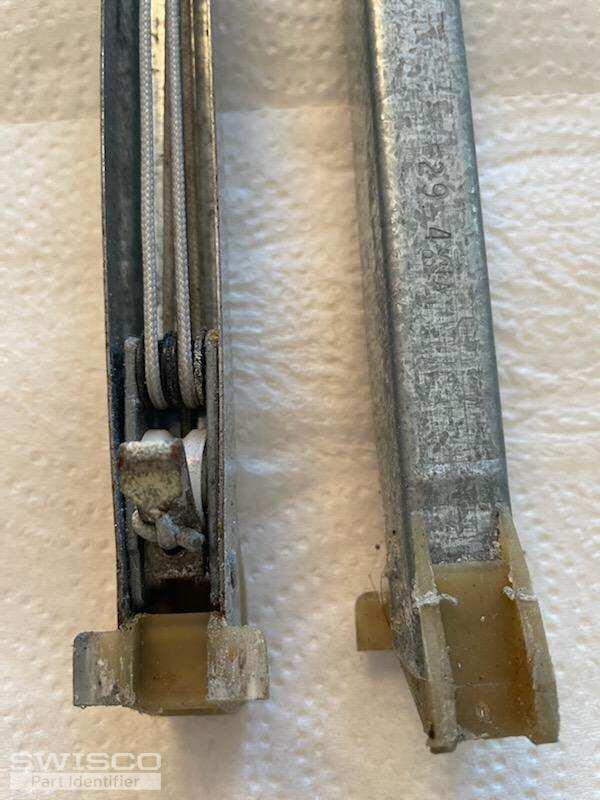

With this combination of attachments, you could have either an S380-30 or S385-30 channel balance. You’ll need to measure as shown below. The Series 380 has a 1" bottom attachment, and the Series 385 has a 1-3/32" attachment. You'll also need 2940 spring strength options for your replacement balances.

If you need new take-out clips as well, see our 16-002. Thank you and let us know if you have any other questions or concerns.

Comparison of the S378, S380 and S385 balance shoes.
