Parts needed

A home owner from CA says:
Simonton double hung bathroom window, weight is 10lb. 1oz.

Coil spring broke. Need new parts.

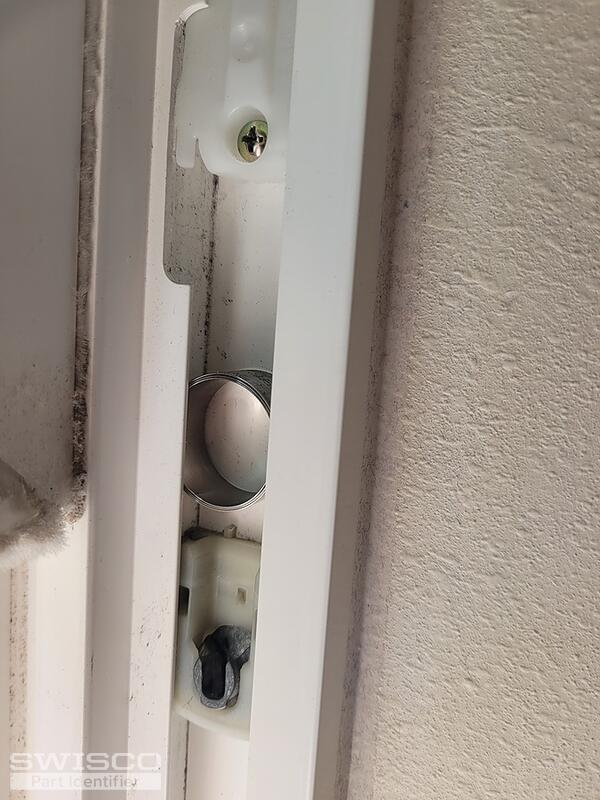

Thumbnail of the uploaded file named Window Parts.jpg
Profile picture of Emily
Emily from SWISCO responded:

Hi there!

We'd be happy to help but we'll need to see an undamaged pivot shoe removed from the track to help narrow down your replacement options.

Thank you!

A home owner from CA says:
Spring appears to be #65 35...

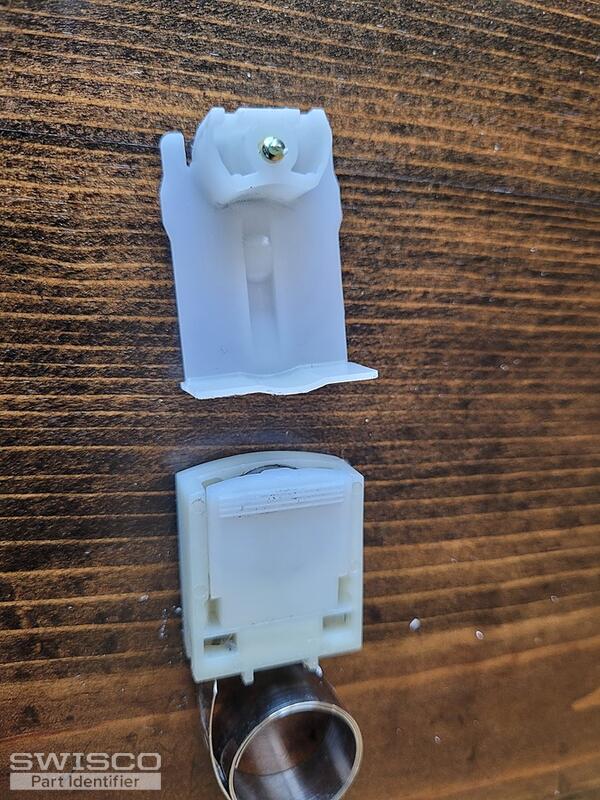

Thumbnail of the uploaded file named pic 1.jpg

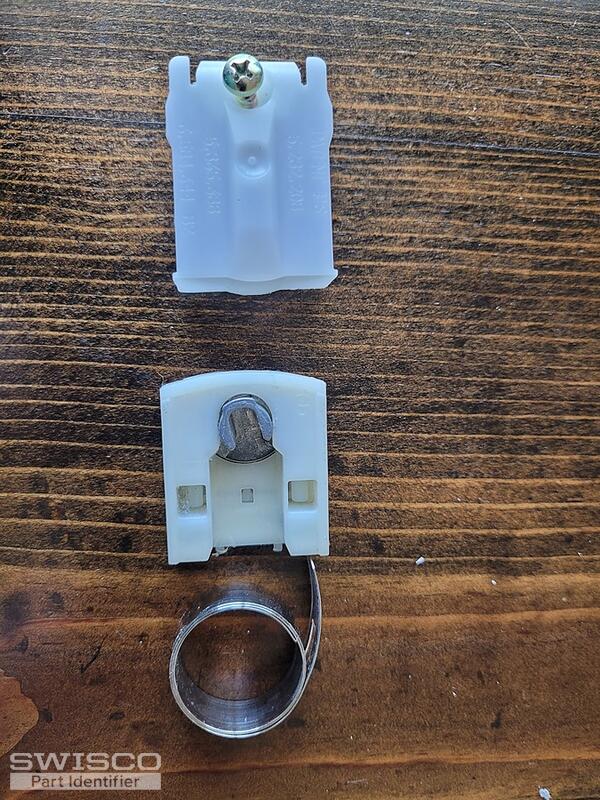

Thumbnail of the uploaded file named pic 2.jpg

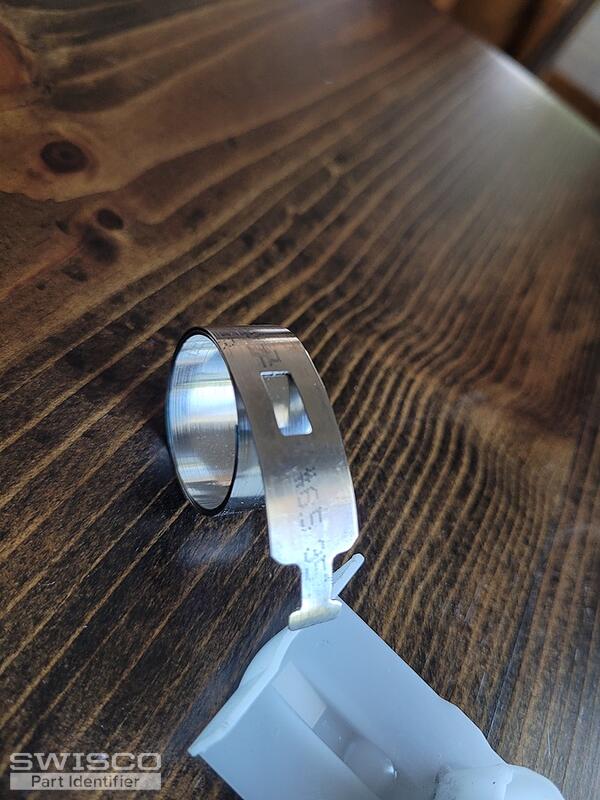

Thumbnail of the uploaded file named pic 3.jpg
Profile picture of Emily
Emily from SWISCO responded:

The shoe pictured here appears to match our 15-199 that uses the 1/2" Series 160 or the 3/8" Series 165 coil springs. Measure the width of your coil band to see which one matches best and let us know if you have any questions.

A home owner from CA says:
Coil spring is 1/2"

No questions, just need the parts. Thanks, Steve H.
Profile picture of Emily
Emily from SWISCO responded:

Gotcha! I recommend our 15-150S single coil support which is compatible with the 15-199 shoe. You can also use (1) S160-5 5.5 pound coil spring on each side of the window. This would total 11 pounds of overall support but will be fine so long as the coil weights are within a pound of your sash's actual weight.

You can place an order for the parts I recommended directly on our website whenever you'd like.
