Pat.# 5353548

A contractor from Kentucky says:
February 15, 2023
The window size is 27.5''x37.5''. The window is a Traco window and I believe they are out of business. Google got me to here using the Pat.# 5353548. Can you help?

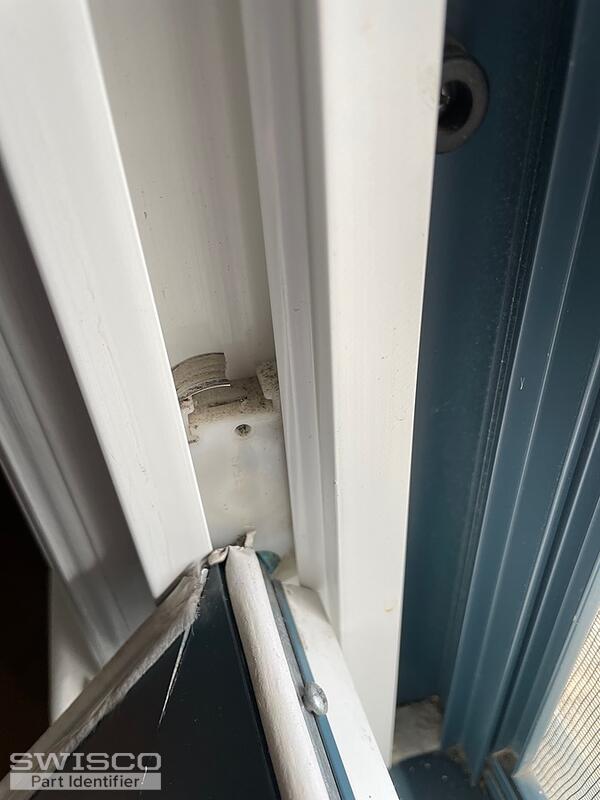

Thumbnail of the uploaded file named WINDOW BALANCE.jpg
Thumbnail of the uploaded file named WINDOW BALANCE 2.jpg
Profile picture of Paul
Paul from SWISCO responded:
February 16, 2023

The balance system Traco used for your window consists of the 16-024 mounting bracket, a 15-087 coil housing pivot, and a Series 180 coil spring. You need to match the spring weight code currently printed on the old spring when ordering the Series 180. Please look these parts over and see what you think.

It also looks like your tilt latches are damaged. With that in mind, I'd suggest the 26-243 and 26-244. Review their specs to verify that they match.
A contractor from Kentucky says:
February 16, 2023

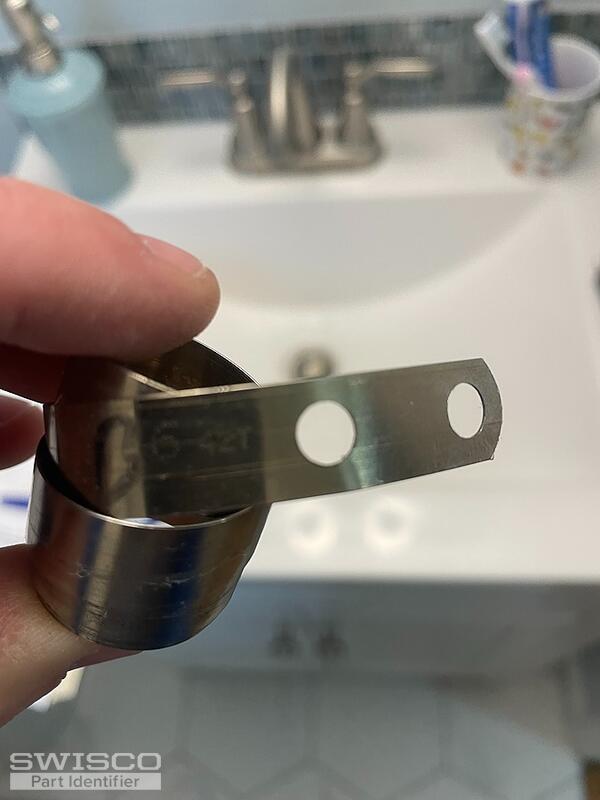

Thanks for the information. I went back over to inspect the window. I was able to pull the coil balance out. Written on it was 6 42T. I hope that help identify the poundage. I looks like we need a new coil housing, coil balance, the mounting bracket, and the tilt latch on the left side of the window (viewed from the interior).
Thumbnail of the uploaded file named IMG_0505 (002).jpg
Profile picture of Tom
Tom from SWISCO responded:
February 20, 2023

I believe that indicates a 6 pound coil with a 42" travel range. Our S180-6 carries 6 pounds and has a travel of 40", though I don't think being 2" of will be the end of the world.
A contractor from Kentucky says:
February 20, 2023
Great. Can you get all these items on a ticket that I can order and pay for? Thank you for your help.
Profile picture of Tom
Tom from SWISCO responded:
February 20, 2023

I cannot place an order for you here, but you can add these products to your cart at your convenience using the links supplied above. You can also call our phone operators at (888) 991-1929 and they can place the order for you, if you'd prefer.
Tilt Window Latch, Left Hand
Tilt Window Latch, Left Hand
26-243
$2.70
Tilt Window Latch, Right Hand
Tilt Window Latch, Right Hand
26-244
$2.70
Mounting Bracket
Mounting Bracket
16-024
$0.66
#8 x 3/8" SS Pan Head Philips Screw
#8 x 3/8" SS Pan Head Philips Screw
33-072
$0.30
Coil Housing Pivot
Coil Housing Pivot
15-087
$5.97
9 lbs Series 180 Coil Balance
9 lbs Series 180 Coil Balance
S180-09
$5.22
