Patio Door Handle and Hardware
Handy Person from Idaho
Apr 15, 2026 11:48 am

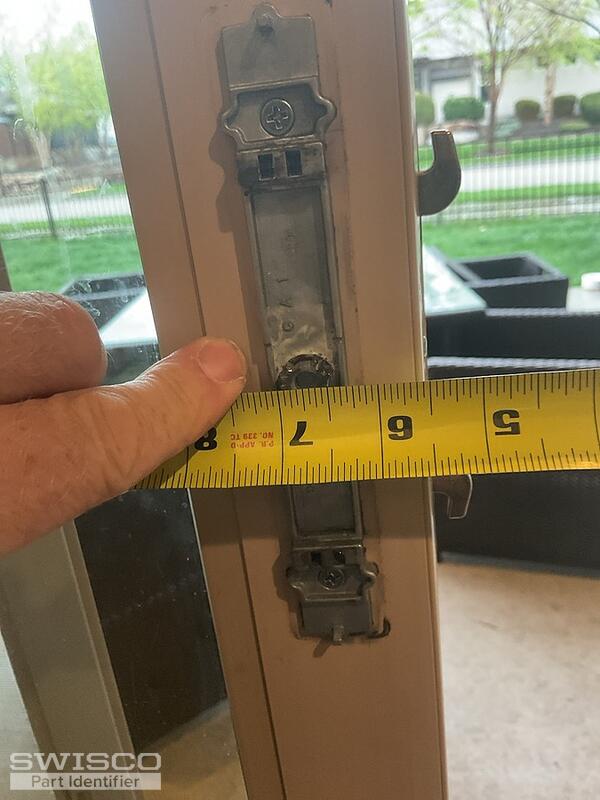

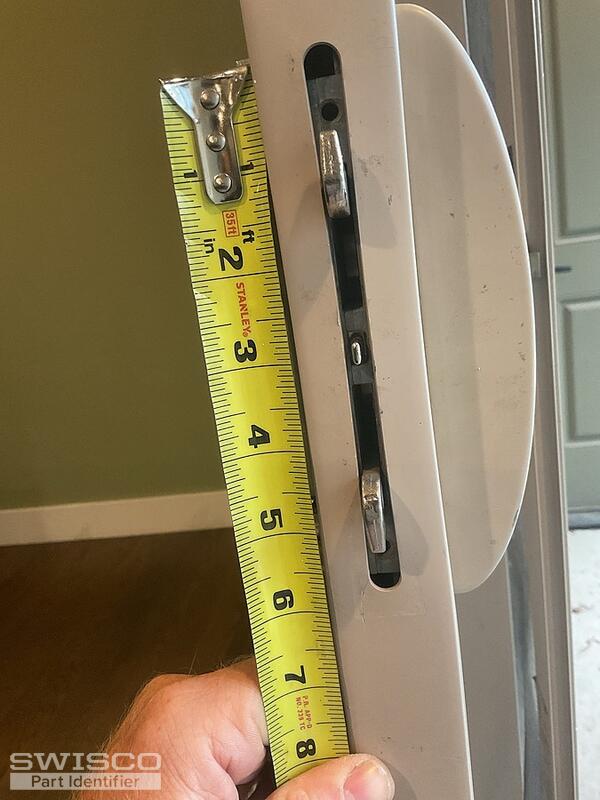

Have a patio door handle that actuates to open the door. There is a faceplate on the inside of the door with a wheel with gears on it that are mostly missing so no longer functional. Do not see anything similar on your site.
5 user uploaded images
2 Replies
Bob from SWISCO
Apr 16, 2026 4:23 pm
Hello there. The handle set looks like an older version of our 82-080. Please compare. Check to see if the mortise lock in the door isn't broken and the cause of the handle set failing. Try manually 'throwing' the lock with a slotted screwdriver. If it doesn't budge, you know the lock needs to be replaced as well. Compare yours with the 82-268B or 82-238. See if one of these match what you seek.
Dimensions for 82-268B
Alternate image for 82-238
Alternate view of 82-238
