Latch:
1 1/2" long
Hook depth is 15/32"
Mounting holes are 1" apart
Mortise:
5" Long
Center is at 3/4" from edged
Mounting holes (2) are 1/8 from edge
Handle:
Mounting screws are 1 3/4 apart

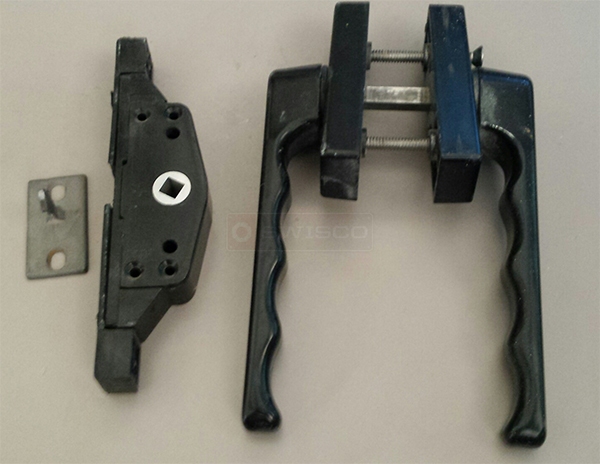

Patio Door handle placed above locking handle to prevent children from opening door
Handy Person from Phoenix, Arizona
Oct 23, 2014 2:57 pm
Manufacture is Lachestar
Latch:
1 1/2" long
Hook depth is 15/32"
Mounting holes are 1" apart
Mortise:
5" Long
Center is at 3/4" from edged
Mounting holes (2) are 1/8 from edge
Handle:
Mounting screws are 1 3/4 apart
Latch:
1 1/2" long
Hook depth is 15/32"
Mounting holes are 1" apart
Mortise:
5" Long
Center is at 3/4" from edged
Mounting holes (2) are 1/8 from edge
Handle:
Mounting screws are 1 3/4 apart
2 Replies
Dave Sr. from SWISCO
Oct 28, 2014 9:38 am
Thank you for your patience in this matter. Unfortunately, I have not been able to find a replacement for this handle set. From the description and picture I think it might be an after-market type, which means it may not be available any longer. Do you think you could substitute with a surface-mounted handle set like our 82-005? Look it over and let me know what you think of this suggestion.
